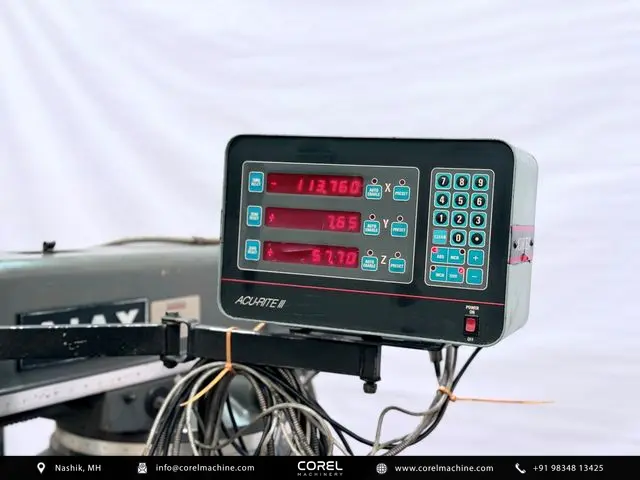

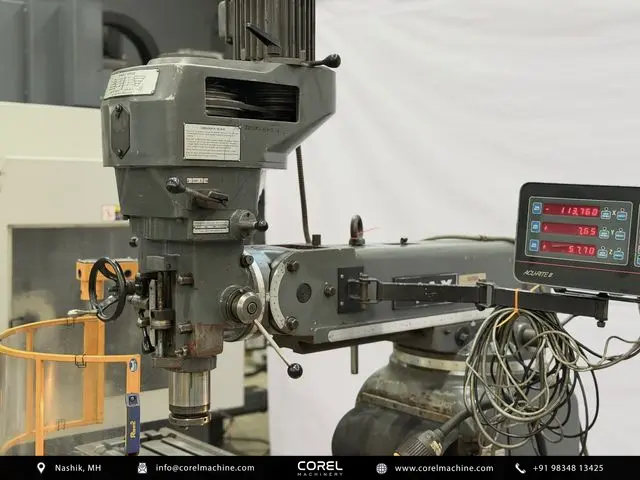

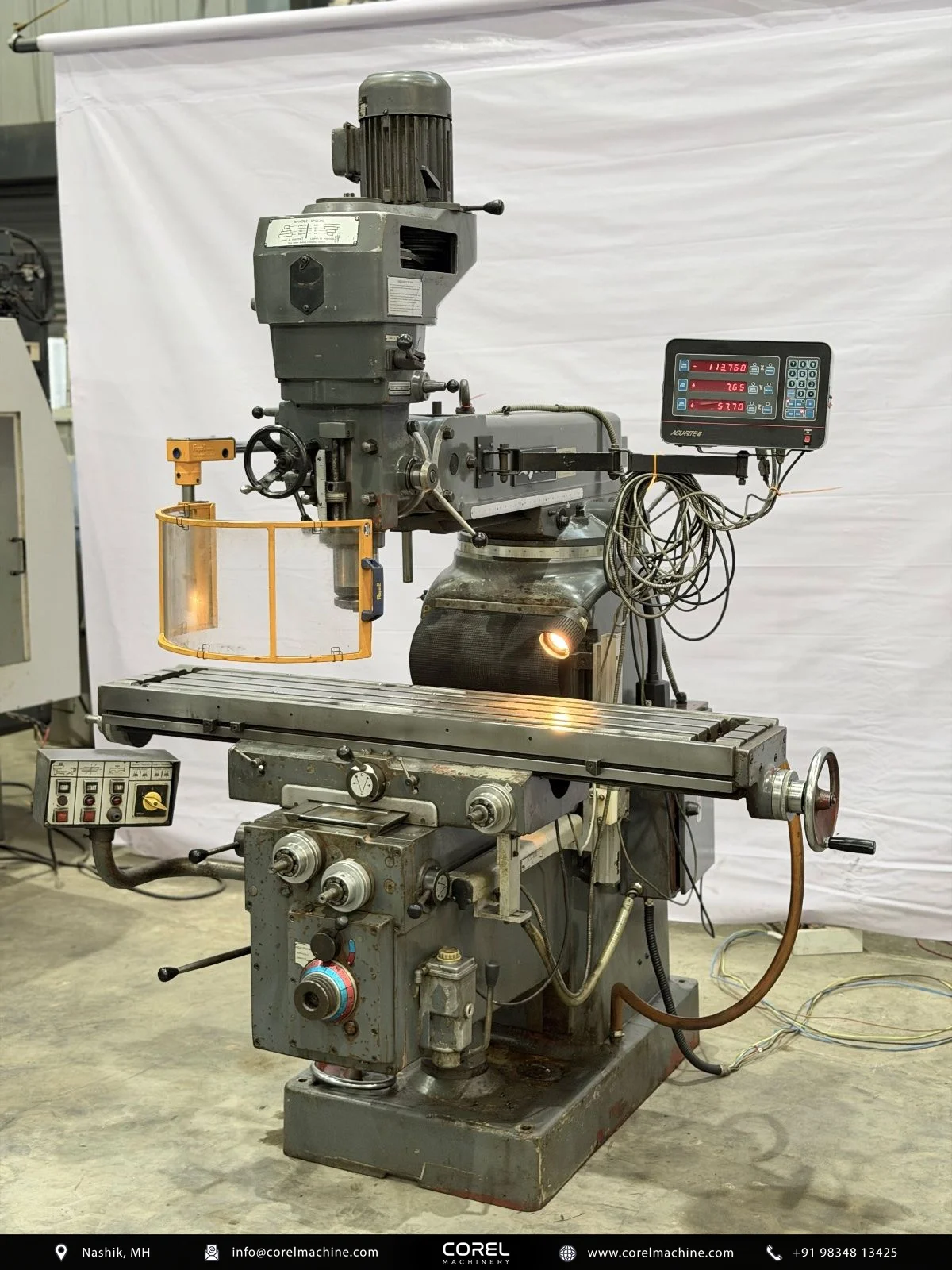

The AJAX AJT4 is an M1TR vertical turret milling machine designed for versatile workshop operations, offering reliable structural capacity and precise control. This machine features a table measuring 1372 x 279 mm, designed with three T-slots of 16 mm width at 63.5 mm centers. In terms of axis travel, it provides 800 mm of longitudinal travel (X), 345 mm of cross travel (Y), and 406 mm of vertical travel (Z). The physical workspace layout is defined by a maximum spindle-to-table distance of 395 mm, alongside a spindle-to-column distance ranging from 135 mm minimum to 725 mm maximum. For operator precision and positional accuracy, this machine comes equipped with a 3-axis digital readout (DRO) covering the X, Y, and Z axes. Performance is driven by a 2.2 kW spindle motor operating an ISO 40 spindle taper. The head mechanism provides 8 spindle speeds ranging from 49 to 2440 rpm, alongside a variable spindle speed range of 45 to 3500 rpm. The quill system allows 127 mm of traverse and has 3 distinct feed rates: 0.04, 0.08, and 0.16 mm/rev. Axis feed movement is managed by a 1.1 kW feed motor, offering 12 table feeds. Longitudinal and cross feed rates range from 12 to 576 mm/min, with rapid traverse capability up to 1650 mm/min. The vertical axis feeds at 3.6 to 173 mm/min with a rapid rate of 500 mm/min. Additionally, a 0.06 kW coolant pump motor is integrated to support tooling operations. With a net weight of 1450 kg and a gross weight of 1710 kg, the machine has an overall volume of 5.6 m³ and case dimensions of 1750 x 1700 x 1880 mm, providing a rigid platform suitable for precise tooling, mold making, repair shops, and general engineering environments. This unit has been imported, thoroughly inspected by our technical team, and is offered directly by Corel Machinery in India, with shipping services available worldwide.
