Used DECKEL FP4M UNIVERSAL TOOLROOM MILLING MACHINE for sale — Milling Machines

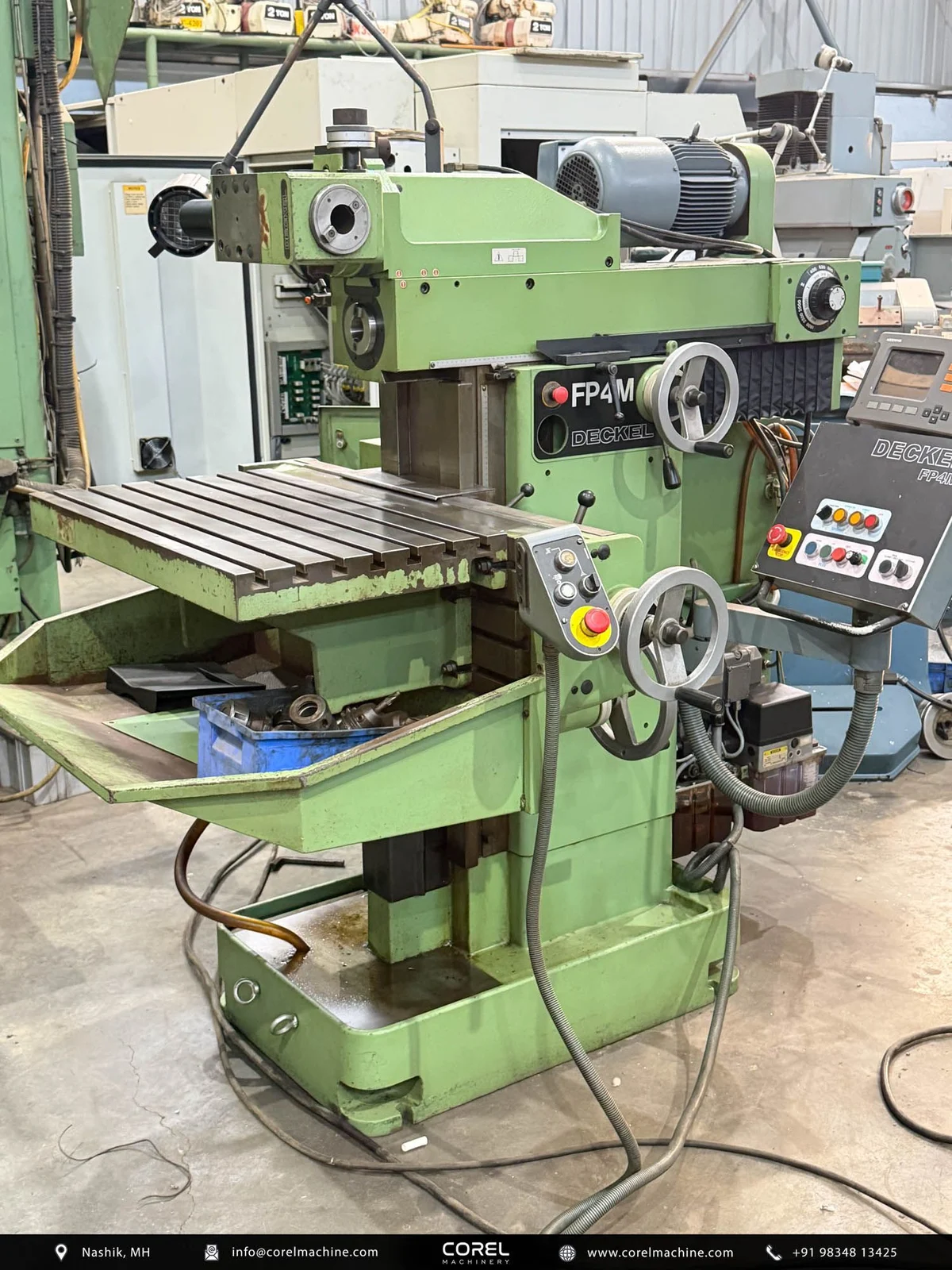

Milling MachinesDECKEL FP4M UNIVERSAL TOOLROOM MILLING MACHINE
Deckel FP4M
- Category
- Milling Machines
- Capacity
- 500 X 400 X 400 mm
Technical Specifications
Buying with Corel Machinery
- Sourced abroad and inspected before we list it.
- Full specifications and genuine photos on every machine.
- A specialist used-CNC machine dealer since 2016.
- Delivery and export logistics arranged worldwide.
Not sure yet? Talk to us before you commit — we reply within 24 hours.
+91 98348 13425Machine Overview
Deckel FP4M – Specifications Travels • Longitudinal Travel (X-Axis): 500 mm • Transverse Travel (Y-Axis): 400 mm • Vertical Travel (Z-Axis): 400 mm • Quill Stroke (Z-Axis): 90 mm • Vertical Cutter Head Adjustment Range: 150 mm Table • Work Surface: 800 × 460 mm • Number of T-Slots: 7 • Distance Between T-Slots: 63.5 mm • Maximum Table Load (Approx.): 400 kg Spindle • Main Spindle Drive: 4.5 kW • Spindle Speed Range (18 steps): 50 – 2500 RPM • Speed Progression Factor: 1.25 • Spindle Taper: NST 40 Feeds • Feed Range (18 steps): 8 – 630 mm/min • Rapid Traverse: 1300 mm/min Dimensions & Weight • Overall Dimensions (Approx.): 1900 × 1220 × 1780 mm (H) • Machine Weight (Approx.): 1450 kg Equipped With • Vertical / horizontal milling capability • Vertical spindle head with axially adjustable quill (tiltable to any angle) • Dedicated horizontal spindle • Main drive motor with brake • Main drive motor with brake • Centralized lubrication system for slideways • Electric coolant pump • Metric Dials
