Used DECKEL MAHO DMC 50H HMC (2 OFF) — sold (Horizontal Machining Centers (HMC))

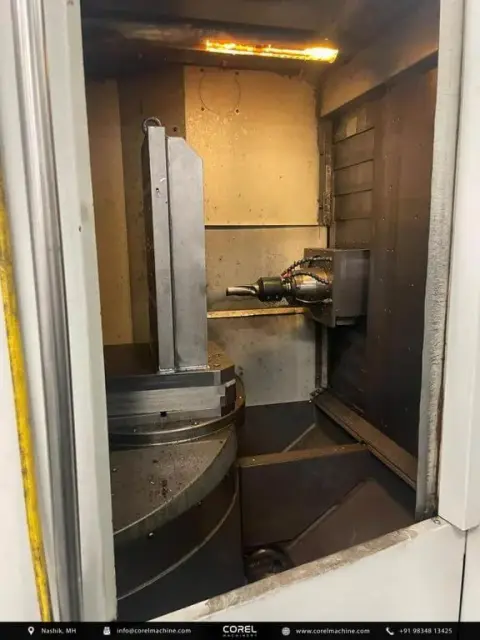

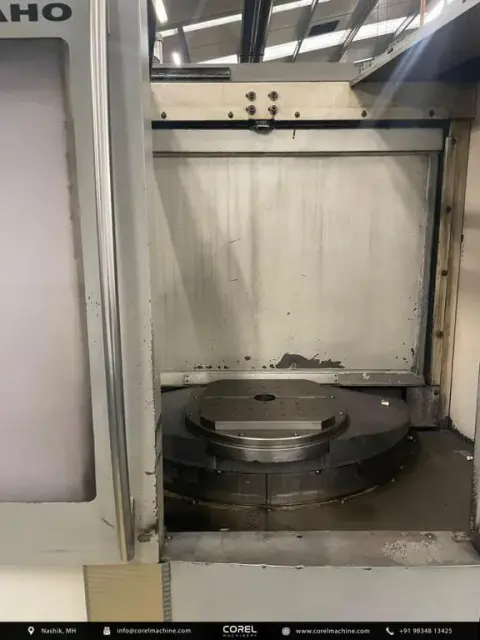

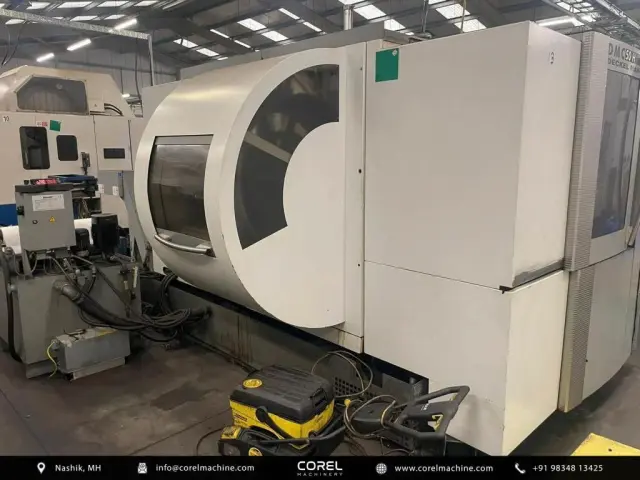

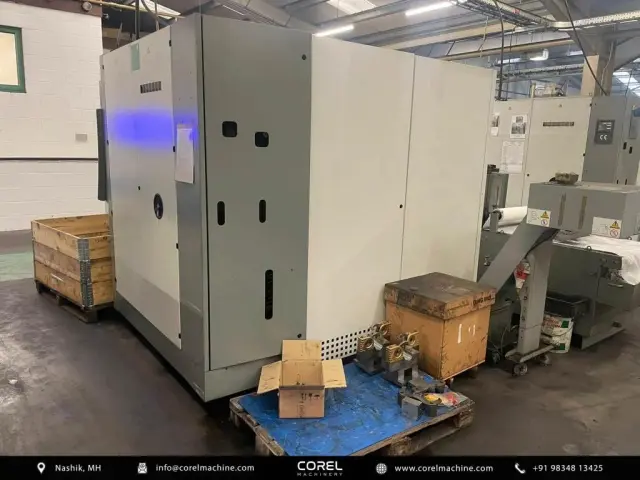

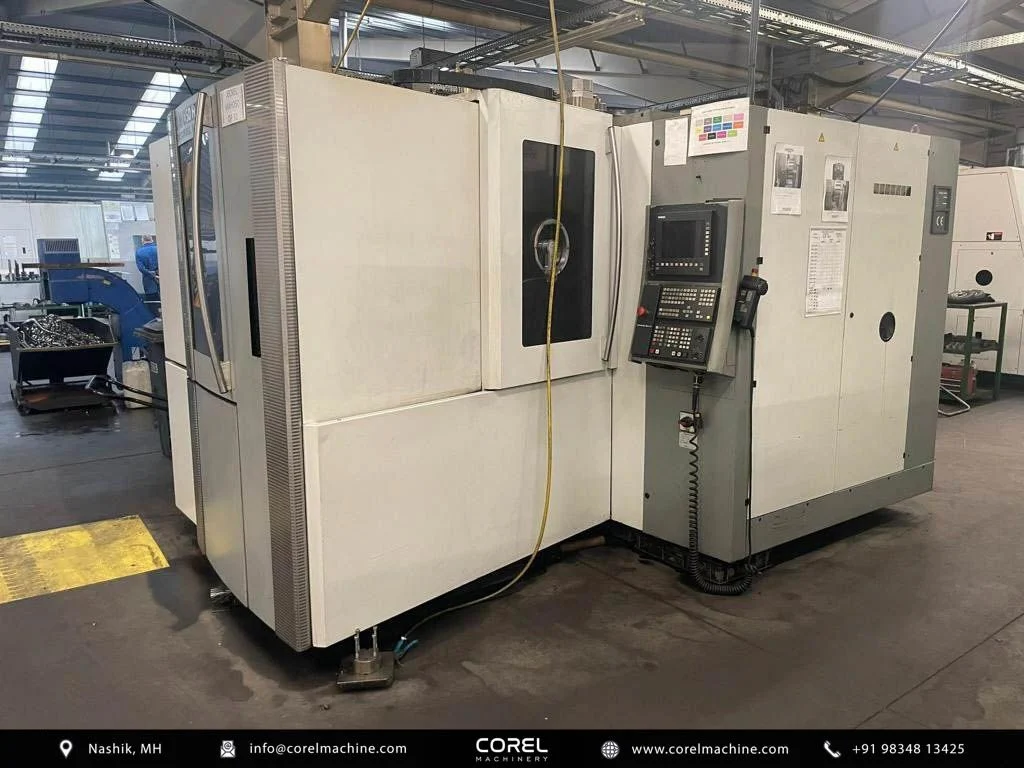

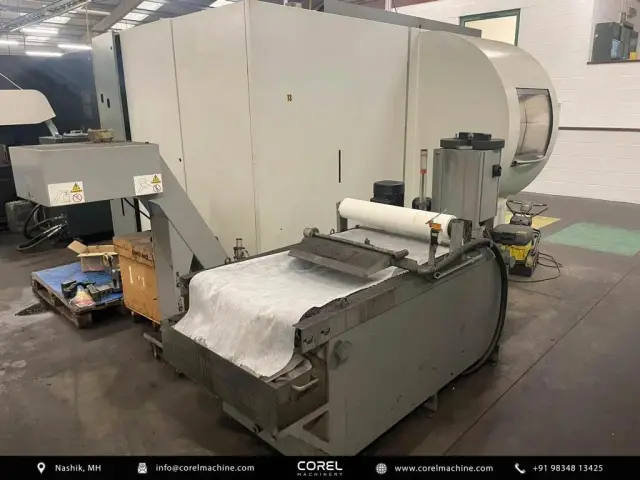

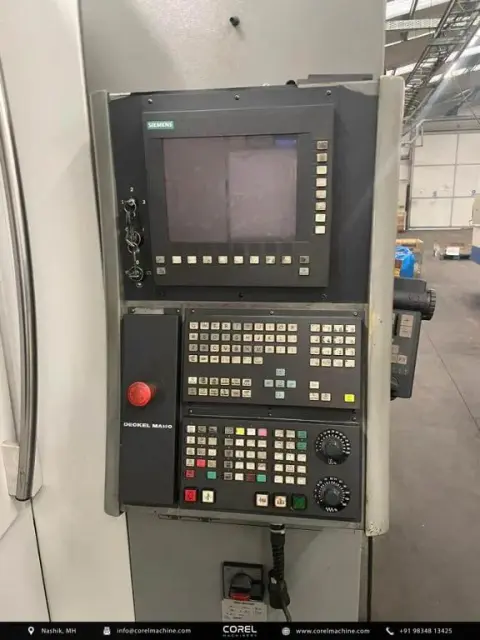

Corel Machinery offers the used Deckel MAHO DMC 50H Horizontal Machining Center (HMC), engineered for precision metal cutting and component manufacturing. This machine operates via the SIEMENS SINUMERIK 840D CNC control system, providing reliable programming and operational execution for complex machining tasks. The workholding setup features pallet dimensions of 400 x 400 mm, with a maximum table load capacity of 250 kg per pallet, accommodating mid-sized workpieces securely. Motion parameters include an X-travel range of 560 mm x 0.001 mm, a Y-travel range of 560 mm x 0.001 mm, and a Z-travel range of 510 mm x 0.001 mm. Additionally, the B-axis travel range provides 360 degrees rotation with 1-degree increments. Rapid feed rates for the X, Y, and Z axes are rated at 50 m/min, supporting efficient positioning cycles. At the core of its cutting performance is a spindle capable of 0-18000 rpm (TBC). Tool management is handled by an Automatic Tool Changer (ATC) with a 40-piece capacity. The machine accepts tool holders of type HSK63 / 40 Taper (TBC). Tool specifications dictate a maximum tool diameter of 85 mm, a maximum tool length of 300 mm, and a maximum tool weight of 8 kg. For larger tooling requirements, the system accommodates a maximum tool diameter with free adjacent places of 140 mm. Utility and installation requirements include a rated machine power of 35 kVA and a compressed air pressure requirement of 6 bar. The physical structure of the machine accounts for a total machine weight of 9200 kg. This imported used machine is thoroughly inspected and available from Corel Machinery, India, with worldwide shipping options to support industrial manufacturing facilities.
