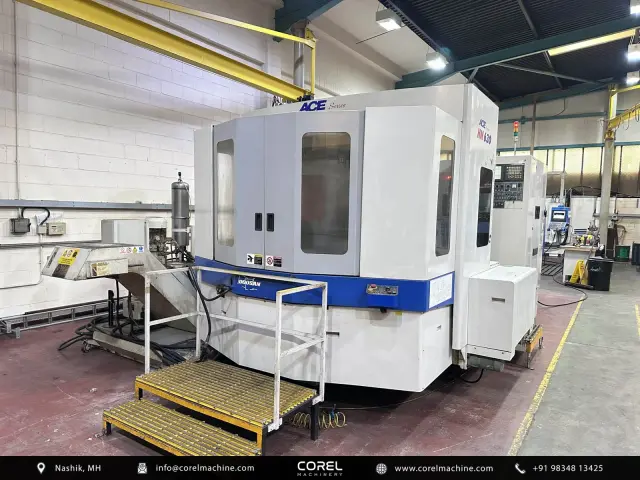

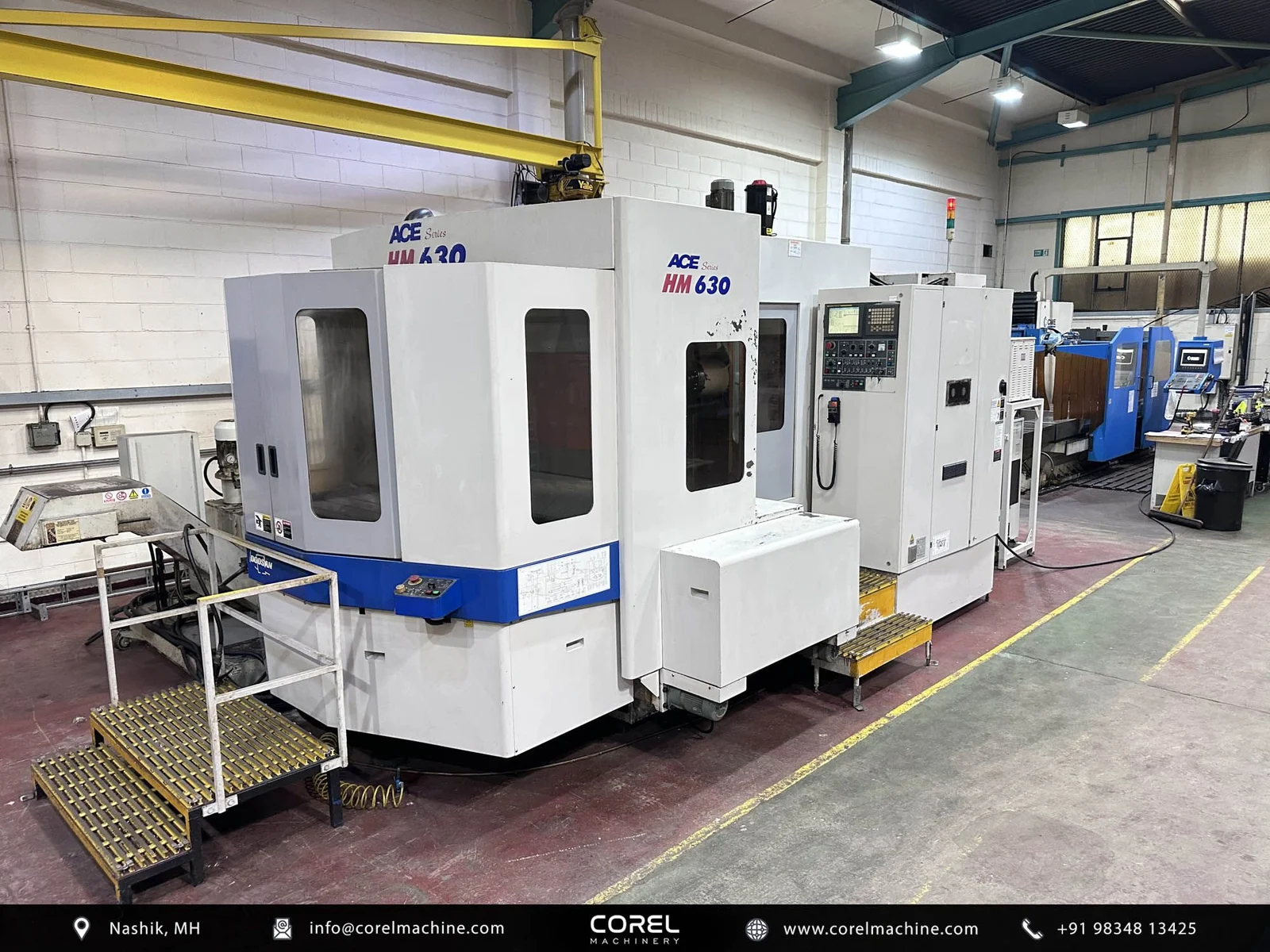

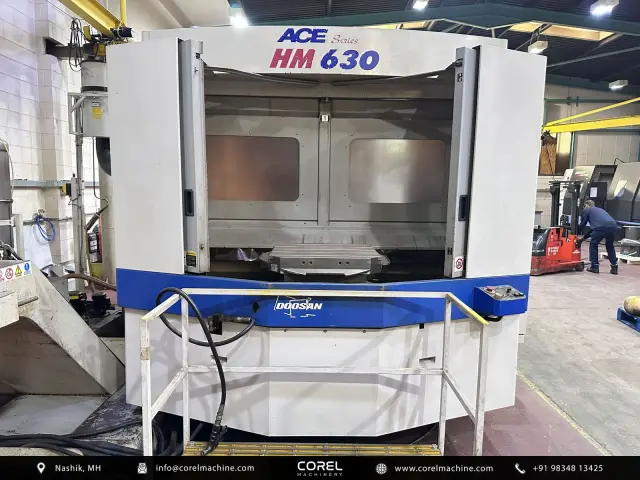

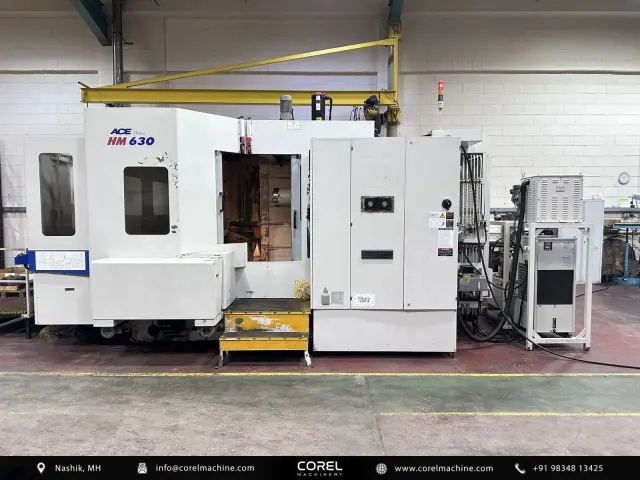

Used DAEWOO DOOSAN ACE HM 630 HMC for sale — Horizontal Machining Centers (HMC)

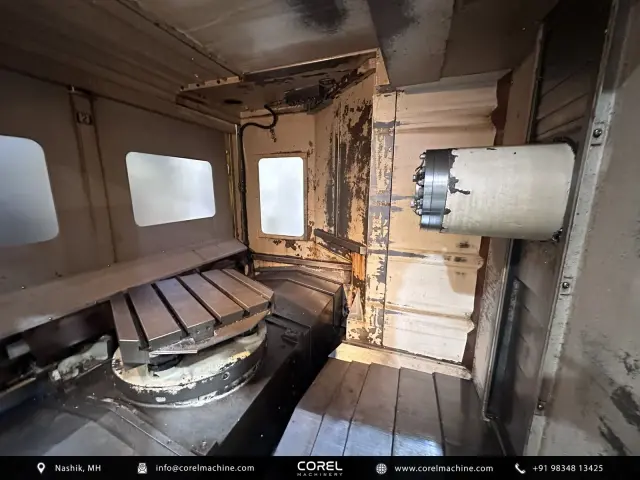

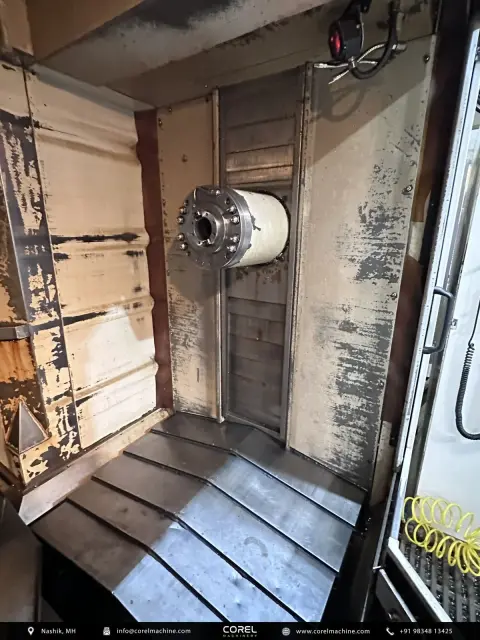

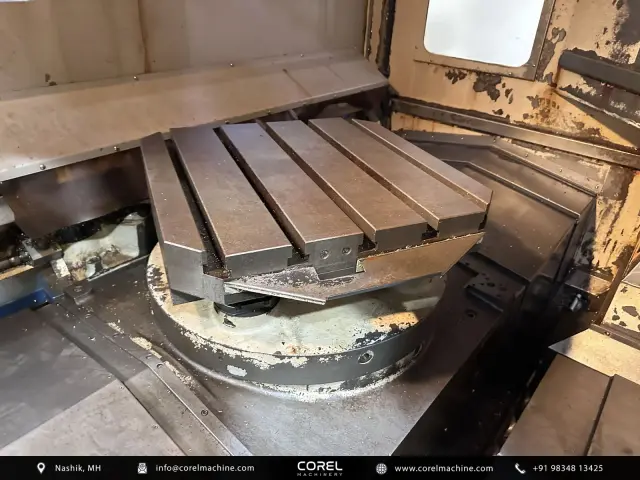

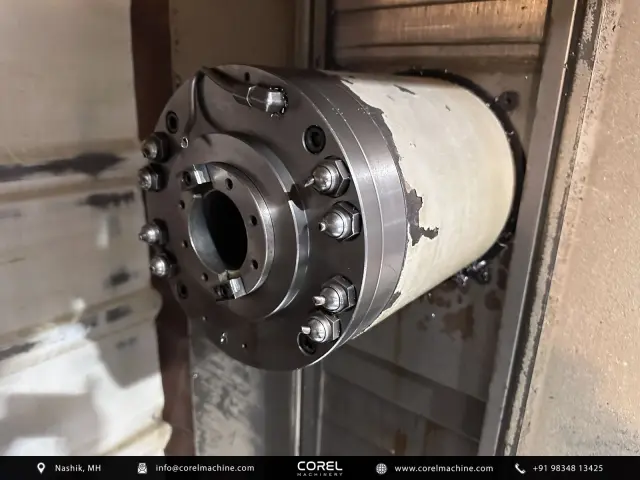

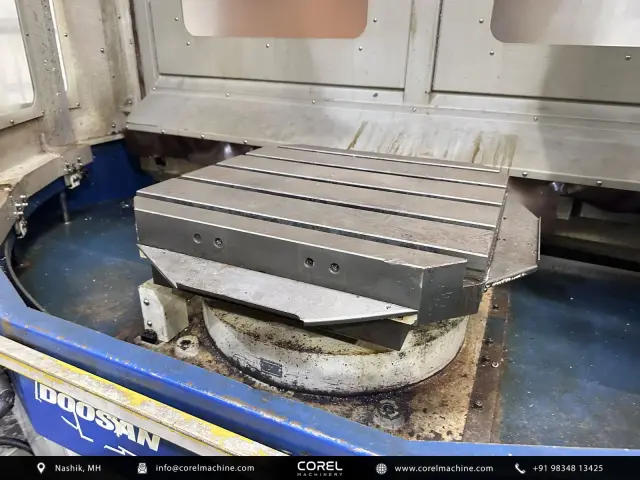

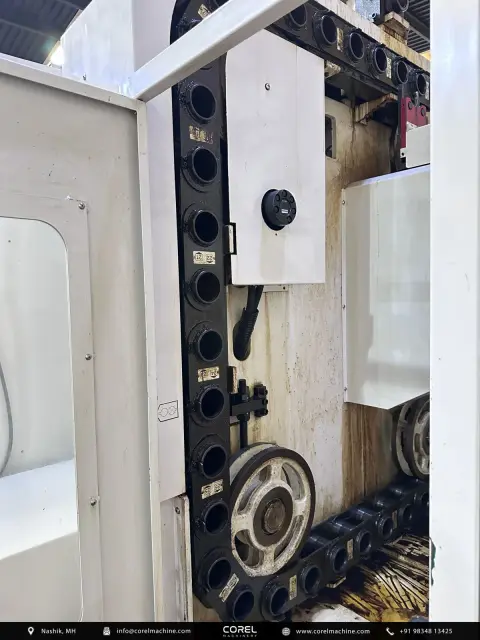

ACE-HM630 – Specifications Travel • X-axis (table longitudinal travel): 1,000 mm • Y-axis (head vertical travel): 800 mm • Z-axis (column cross travel): 850 mm • Distance from spindle center to pallet top: 75–875 mm • Distance from spindle nose to table center: 150–1,000 mm Table • Pallet type: 24-M16 × P2.0 Tap • Indexing degree: 0.001° • Table loading capacity: 1,200 kg • Pallet size: 630 × 630 mm Spindle • Max spindle speed: 6,000 rpm • Spindle taper: ISO #50 7/24 Taper • Max spindle torque: 1,675.8 N·m Feedrate • Rapid traverse (X/Y/Z): 24 m/min • Cutting feedrate: 1–12,000 mm/min Automatic Tool Changer • Tool shank: MAS 403 BT50 (DIN, CAT) • Tool storage capacity: 40 • Max tool diameter: 135 mm • Max tool diameter (without adjacent tools): 250 mm • Max tool length: 400 mm • Max tool weight: 25 kg • Max tool moment: 34.3 N·m • Tool selection method: Fixed address • Tool changing time (tool-to-tool): 2.5 sec • Tool changing time (chip-to-chip): 8.5 sec Automatic Pallet Changer • Number of pallets: 2 • Type: Rotary • Pallet change time: 25 sec • Pallet rotation in loading station: 90° index Power Source • Electrical power supply (rated capacity): 60.7 kVA • Compressed air supply: 0.54 MPa Tank Capacity • Coolant tank: 550 L • Lubrication tank: 4.3 L Machine Size • Machine height: 3,041 mm • Machine dimensions (L × W): 6,485 × 3,857 mm • Machine weight: 18,000 kg Specifications Catalogue: https://app.box.com/s/q7p1rdc1psdzpkdja63zh7k9mfluvhnk
