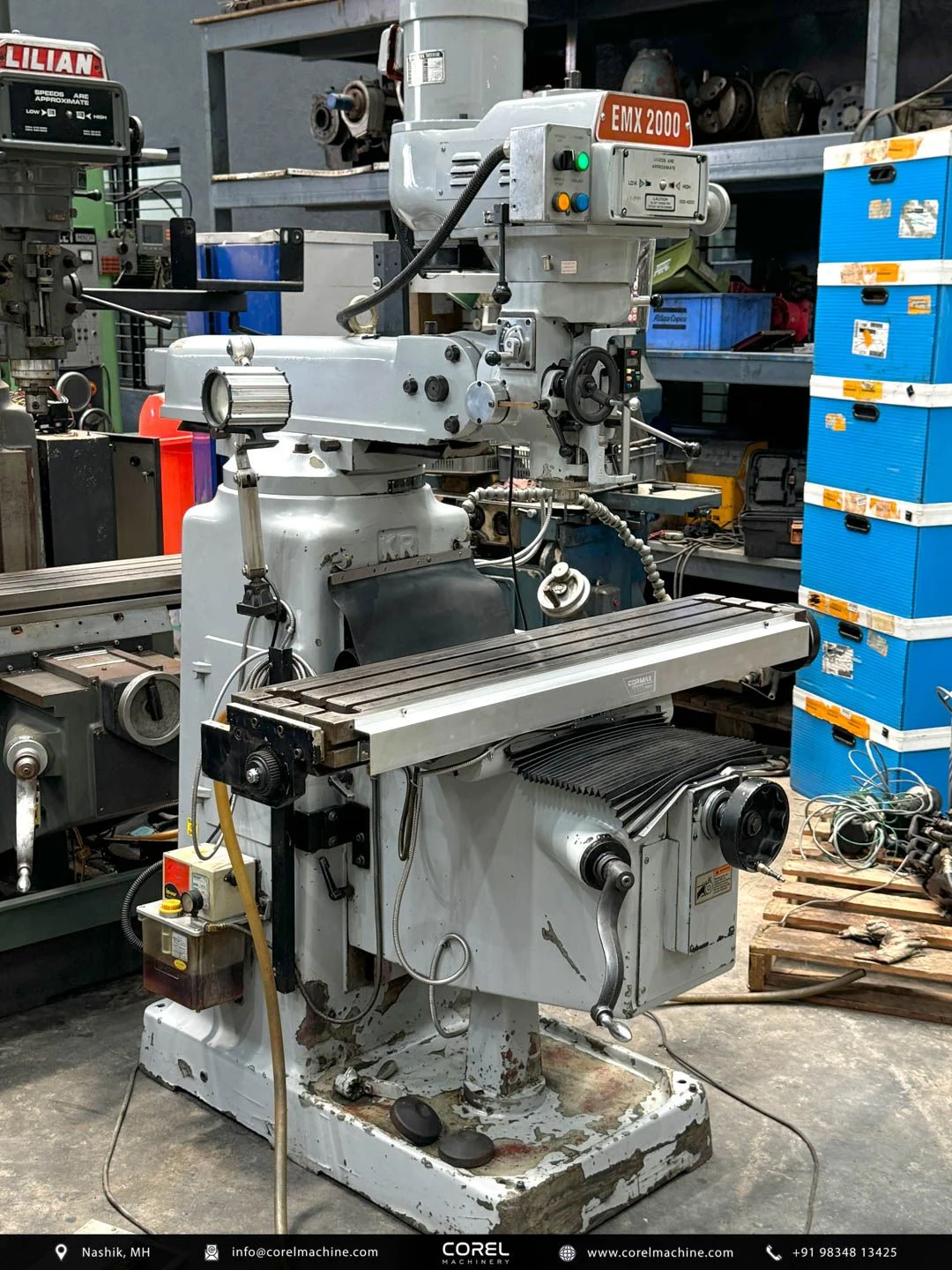

Used EMX 2000 M1TR TURRET MILLING MACHINE for sale — Milling Machines

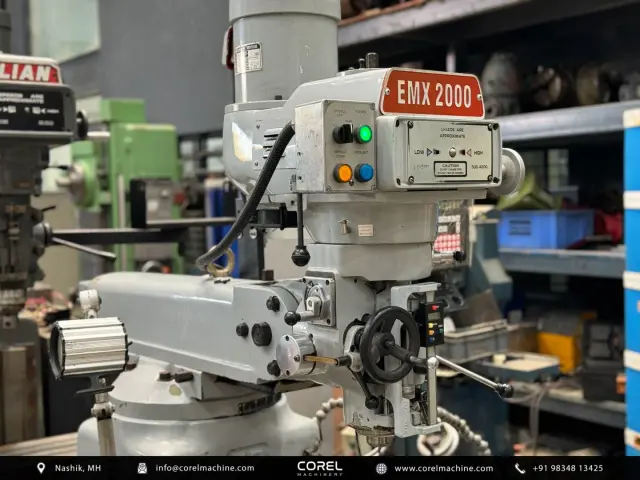

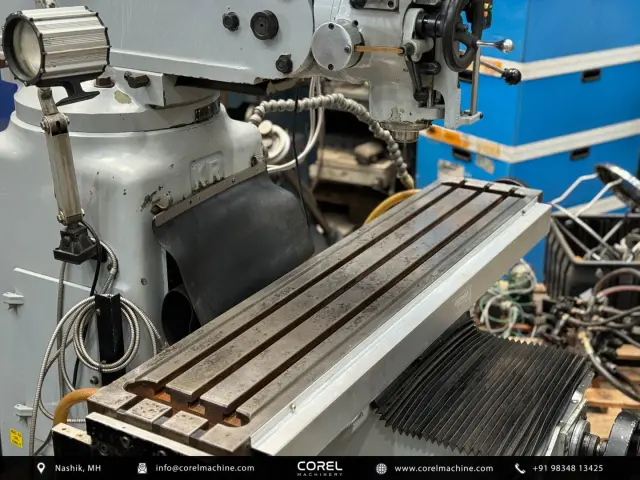

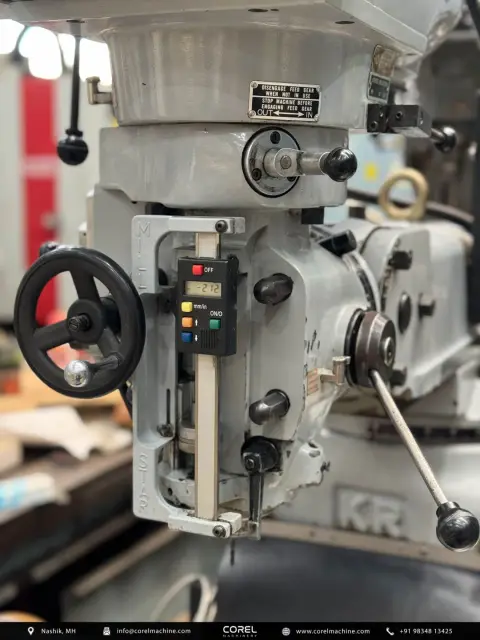

Corel Machinery offers the used EMX 2000 M1TR Milling Machine, a versatile turret milling machine engineered for precision machining tasks in manufacturing and toolroom environments. Designed to handle demanding operations, this machine is powered by a reliable 2.25kW (3HP) spindle motor with an adaptable spindle speed range of 50 to 3,500rpm and an R8 spindle taper, making it suitable for a wide variety of milling and drilling applications. The machine features a robust table measuring 1270 x 254mm, supported by a sturdy table load capacity of 300kg. It provides generous travel dimensions to accommodate diverse workpiece sizes, offering a longitudinal travel of 750mm, cross travel of 380mm, and vertical travel of 400mm. Additionally, the ram travel of 450mm and a spindle nose to table distance ranging from 50 to 450mm enhance the flexibility of setup and component handling. The table is equipped with three 15.9mm T-slots for secure workholding. For precision drilling and boring operations, the quill has a diameter of 86mm, a travel of 127mm, and supports three quill power feeds of .038, .076, and .15 mm/rev. The milling head offers exceptional angular positioning flexibility, with a left-to-right tilt of 90 degrees to 90 degrees and a front-to-back tilt of 45 degrees to 45 degrees, allowing production engineers to approach workpieces from multiple angles without repositioning. Weighing approximately 1,250kg, this EMX 2000 M1TR milling machine is imported and thoroughly inspected to meet stringent operational standards. It is available directly from Corel Machinery, India, with worldwide shipping options to support global manufacturing facilities and workshops.
