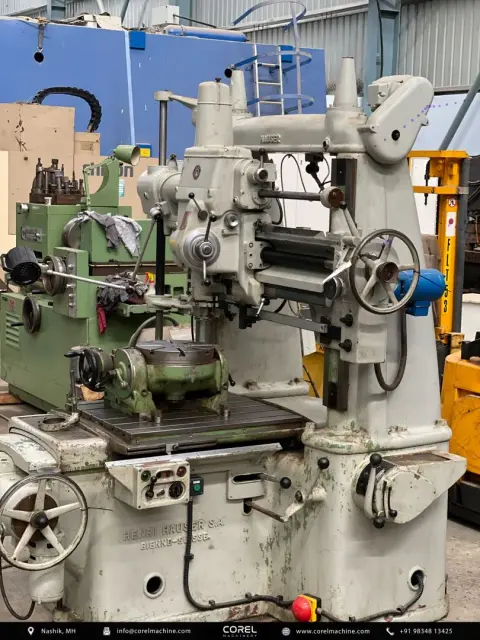

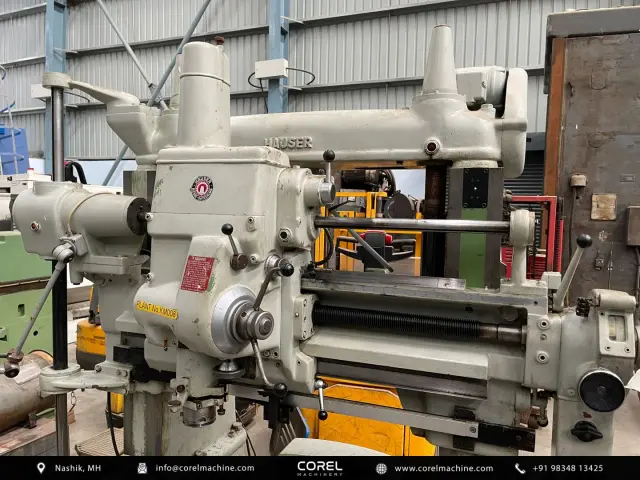

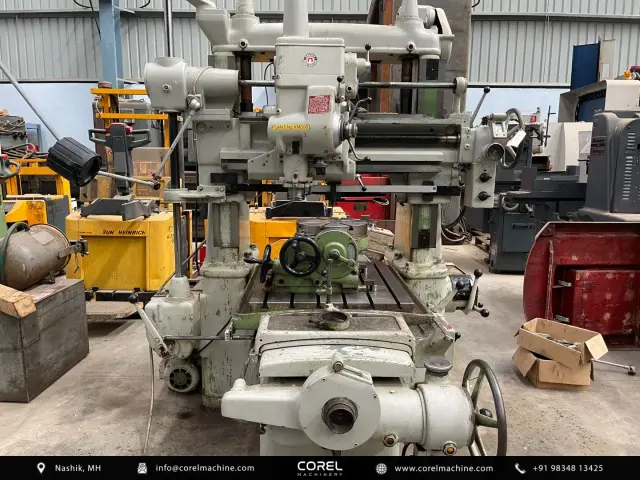

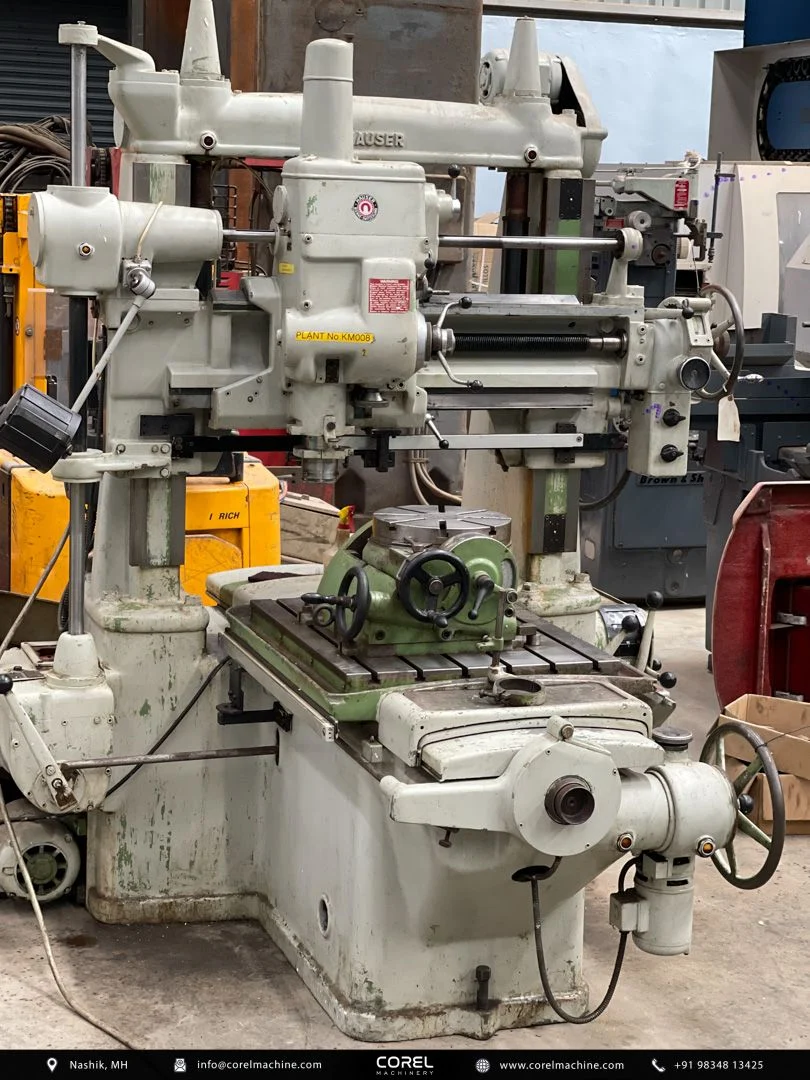

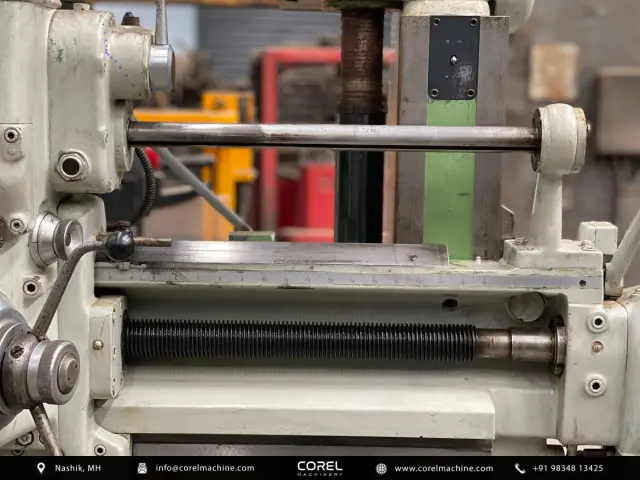

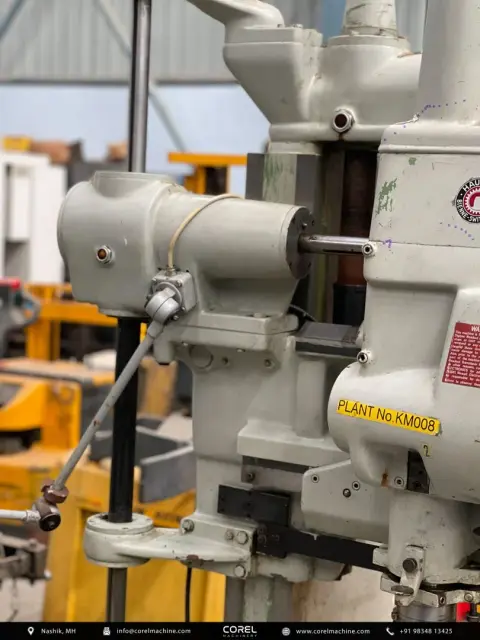

Used HAUSER 5 JIG BORING for sale — VTL / Borers
VTL / BorersTechnical Specifications
Buying with Corel Machinery
- Sourced abroad and inspected before we list it.
- Full specifications and genuine photos on every machine.
- A specialist used-CNC machine dealer since 2016.
- Delivery and export logistics arranged worldwide.
Not sure yet? Talk to us before you commit — we reply within 24 hours.
+91 98348 13425Machine Overview
Table length: 750 mm Table width: 620 mm Longitudinal travel (X-axis): 700 mm Transversal travel (Y-axis): 500 mm Vertical travel (Z-axis): 150 mm 2 columns execution Travel of the vertical slide: 500 mm Passage from grinding motor to table: 500 mm Max grinding diameter with display-plate: 300 mm Passage between the columns: 840 mm Max angle with taper grinding: up to 16 degrees Vertical travel of grinding spindle, stepless: -From 3 mm -Up to 145 mm Travel speeds, stepless: up to 2.8 m/min Radial fine feed of U-axis: up to 4.5 mm Planetary motion speeds of C-axis, stepless: -From 10 rpm -Up to 280 rpm Possible grinding-spindle speeds, stepless: -From 9000 rpm -Up to 80000 rpm Voltage: 50 Hz, 3×380 Volt Total power required: 6.3 kW Overall machine dimensions: -Length: 2500 mm -Width: 1700 mm -Height: 2700 mm Machine weight: about 5100 kg With Rotary Table: 310 mm
