Used HURON KU4 UNIVERSAL MILLING — sold (Milling Machines)
Technical Specifications
Buying with Corel Machinery
- Sourced abroad and inspected before we list it.
- Full specifications and genuine photos on every machine.
- A specialist used-machine importer and dealer since 2016.
- Delivery and export logistics arranged worldwide.
Not sure yet? Talk to us before you commit — we reply within 24 hours.
+91 98348 13425Machine Overview

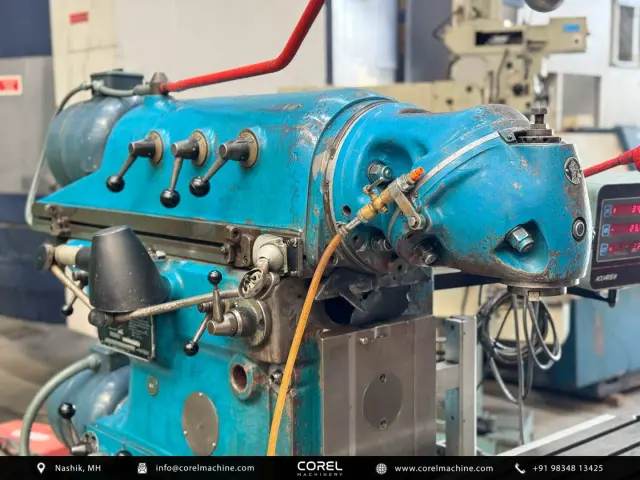

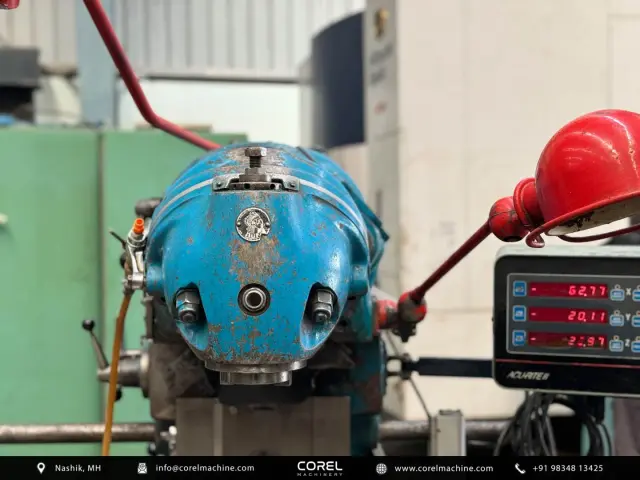

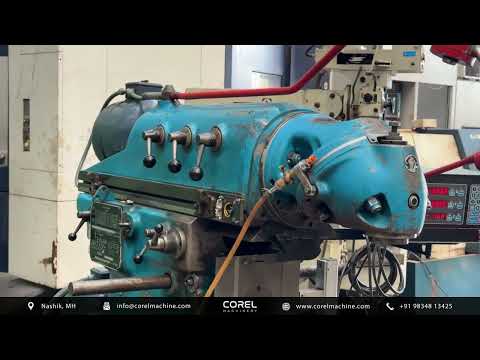

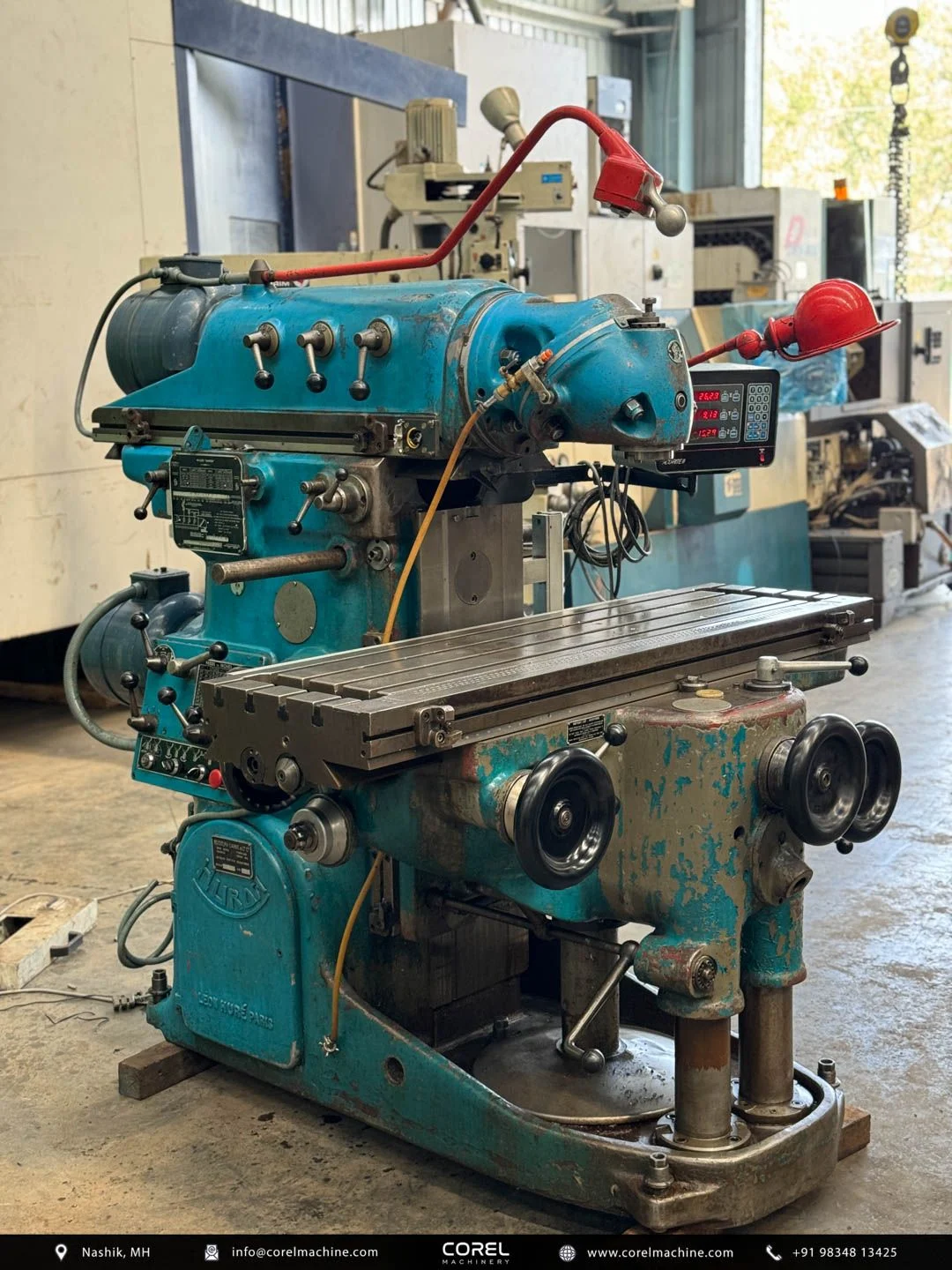

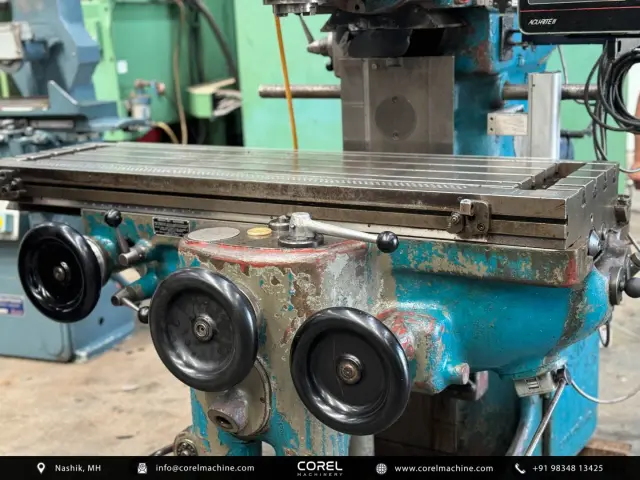

The Huron KU4 milling machine is a robust and versatile universal milling machine engineered for precision machining operations in industrial manufacturing environments. Designed for production engineers and machinists seeking reliable material removal capabilities, this model delivers solid structural rigidity and precise axis control. At the foundation of the machine is a generous table size measuring 1435 x 420 mm, providing ample workspace for securing medium to large-sized workpieces and complex fixtures. Operational capacity is defined by the robust travels along the XYZ axes, offering 1100 mm of longitudinal travel, 700 mm of cross travel, and 500 mm of vertical travel. This dimensional envelope makes the Huron KU4 well-suited for general engineering, tool and die making, job shops, and component manufacturing sectors requiring versatile prismatic part processing. The machine features an ISO 40 spindle taper, ensuring broad tooling compatibility for standard milling cutters and arbors. Spindle performance is highly flexible, driven by a wide speed range spanning from 30 to 2066 RPM. This broad rotational velocity spectrum is managed through 27 spindle speed gear step changes, allowing operators to optimize cutting speeds for various materials and tooling diameters. A standout feature of this machine is the 2 x 360° swivel spindle head, which grants exceptional angular positioning capabilities for compound machining operations without requiring complex workpiece repositioning. To enhance operational accuracy and reduce setup times, the machine comes equipped with an XYZ digital readout (DRO) system, giving the machinist real-time dimensional feedback directly at the workstation. This pre-owned Huron KU4 milling machine has been carefully imported, rigorously inspected, and is available directly from Corel Machinery in India. We offer professional logistics and worldwide shipping options to meet your facility's requirements. Contact Corel Machinery today to request a detailed quotation and check current availability for your workshop.
The used Huron KU4 milling machine features a 1435 x 420 mm table, 1100 x 700 x 500 mm XYZ travels, and an ISO 40 spindle with speeds from 30 to 2066 RPM across 27 gear steps. It includes a 2 x 360° swivel head and XYZ DRO. Available now from Corel Machinery, India.
Frequently Asked Questions
What are the table size and axis travels of the Huron KU4?
The Huron KU4 is equipped with a table size of 1435 x 420 mm. Its XYZ travels provide 1100 mm of longitudinal movement, 700 mm of cross movement, and 500 mm of vertical movement.
What is the spindle configuration and speed range on this machine?
This machine features an ISO 40 spindle taper with operational speeds ranging from 30 to 2066 RPM. The spindle speed is adjusted through 27 gear step changes for precise velocity control.
Does the Huron KU4 feature a swivel head and digital readouts?

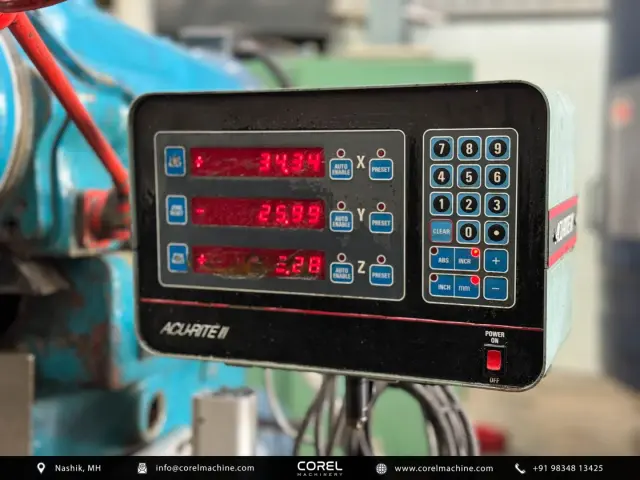

Yes, the machine is built with a 2 x 360° swivel spindle head for angular milling versatility and comes fully equipped with an XYZ digital readout (DRO) system for accurate positioning.
Where is this used Huron KU4 milling machine located and can it be shipped?
This machine is imported and stocked by Corel Machinery in India. We inspect our inventory thoroughly and offer reliable worldwide shipping to your manufacturing facility.
How can I purchase or request a quote for this machine from Corel Machinery?
You can request a formal quotation by contacting Corel Machinery directly through our website. Our team provides complete pricing, inspection details, and freight arrangements for global delivery.
Compare this machine with others
Line up to 3 machines side by side to weigh capacity, control and condition on a single sheet before you request a quotation.
Downloads
Huron KU4
- Category
- Milling Machines
- Capacity
- 1100 X 700 X 500 MM
