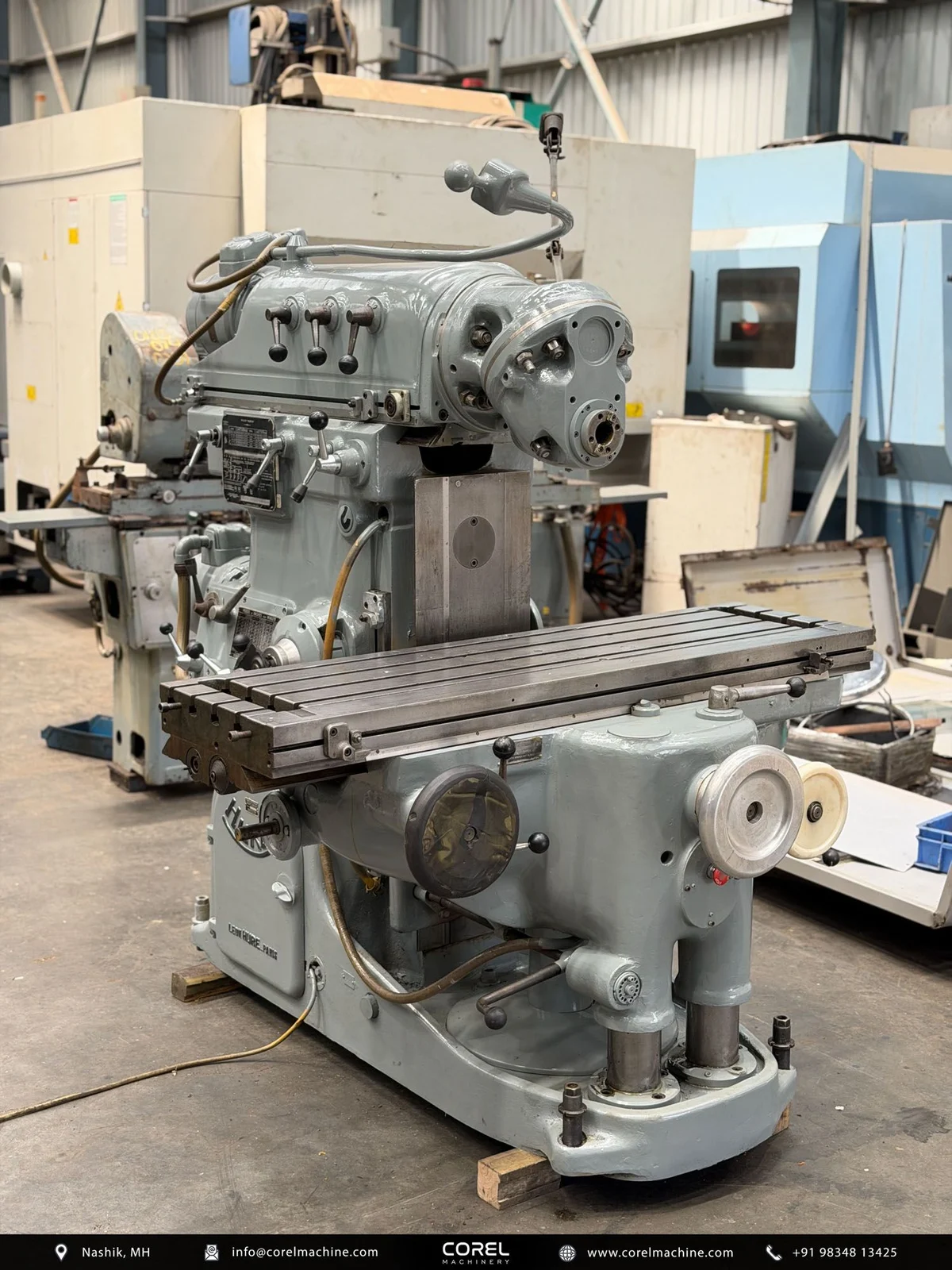

Used HURON KU4 UNIVERSAL MILLING — sold (Milling Machines)

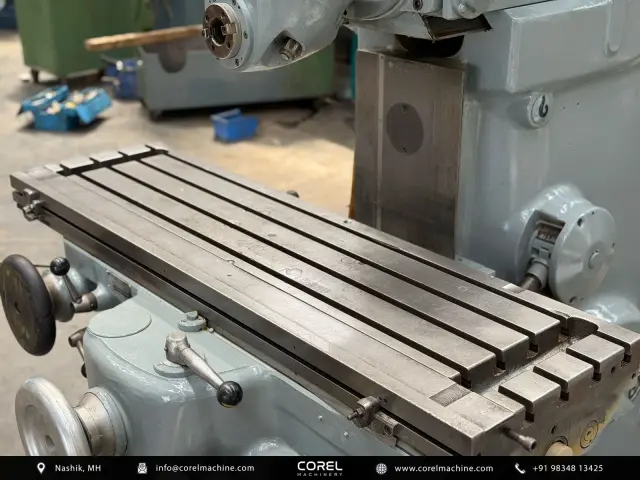

Corel Machinery offers the Huron KU4 Milling Machines, designed for precision metalworking and heavy-duty machining applications. Engineered for rigorous industrial environments, this universal milling machine is well-suited for tool rooms, die and mold manufacturing, and general production engineering where versatility and dimensional accuracy are critical. At the foundation of the machine is a rigid workholding surface featuring a Table Size of 1435 x 420 mm. This generous footprint allows operators to securely clamp medium-to-large workpieces or multiple fixtures simultaneously, supporting efficient batch processing. The machine delivers substantial machining reach with Travels (XYZ) of 1100 x 700 x 500 mm. These axis travels provide the longitudinal, cross, and vertical clearance required to process complex prismatic components without frequent repositioning. At the core of its cutting performance is a versatile Spindle Taper of ISO 40, balancing robust tooling rigidity with rapid changeover capabilities. The drive system offers a wide operating range with Spindle Speeds spanning from 30 to 2066 RPM. To optimize cutting parameters across diverse materials—ranging from tough alloy steels to softer non-ferrous metals—the machine incorporates a Spindle Speed Gear Step Chnage of 27 distinct steps. This fine granularity allows production engineers to dial in optimal surface speeds and chip loads for milling, drilling, and boring operations. Further enhancing the versatility of the machine is the 2 x 360° Swivel Spindle Head. This universal head design allows operators to approach workpieces from virtually any compound angle, significantly reducing setup times for multi-sided machining tasks without requiring specialized angular attachments. This pre-owned Huron KU4 milling machine has been imported and thoroughly inspected by the technical team at Corel Machinery, India. It represents a reliable, cost-effective solution for manufacturing facilities looking to expand their milling capacity. Corel Machinery offers secure worldwide shipping and professional handling for all industrial equipment inquiries. Contact our sales team today to request a detailed quotation and specification sheet for this machine.
