HURON NU4 Universal Milling Machine

400324
1 / 6
Available

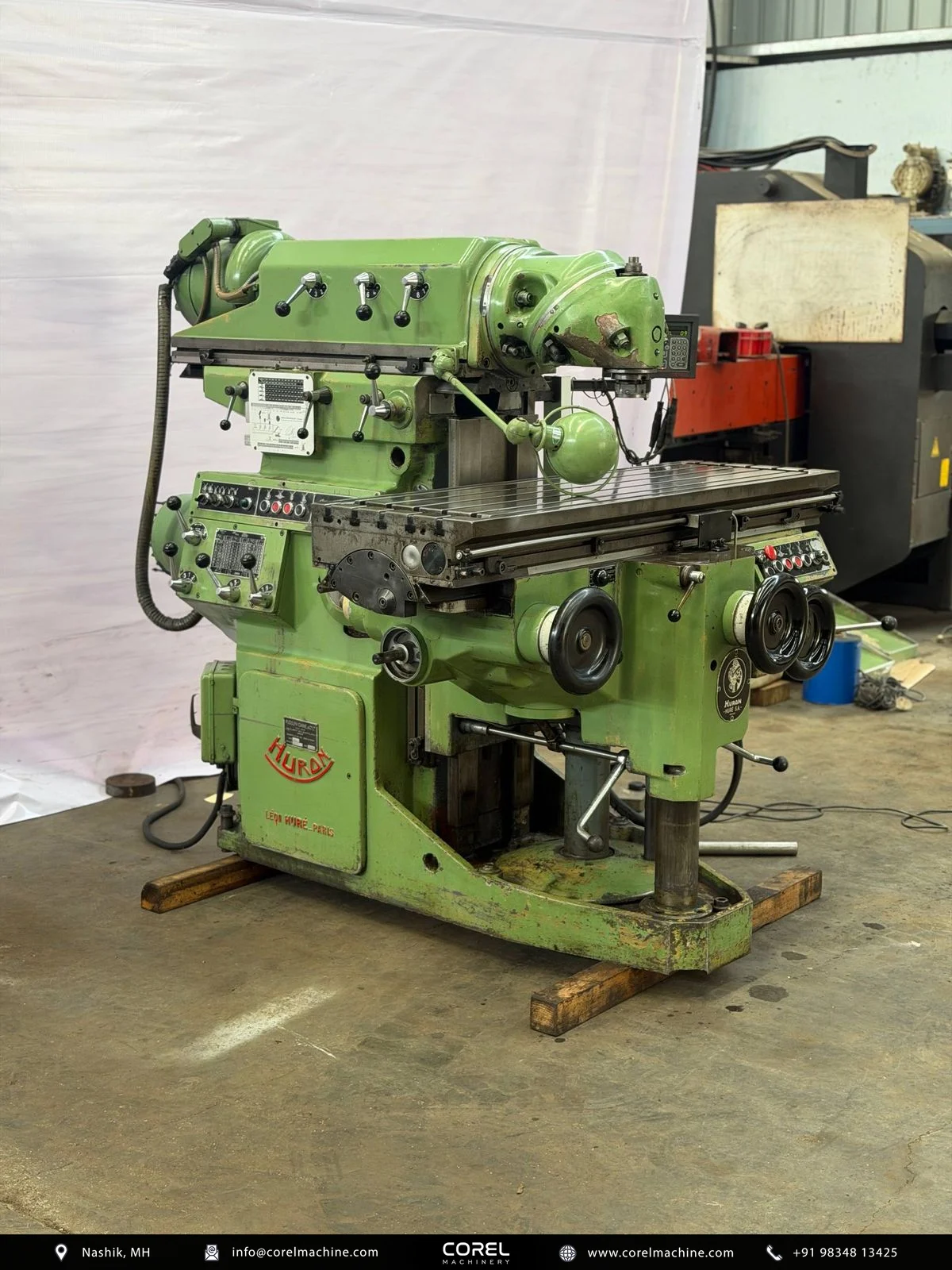

Used HURON NU4 Universal Milling Machine

HURON NU4

Capacity
1100 x 700 x 500 mm

Technical Specifications

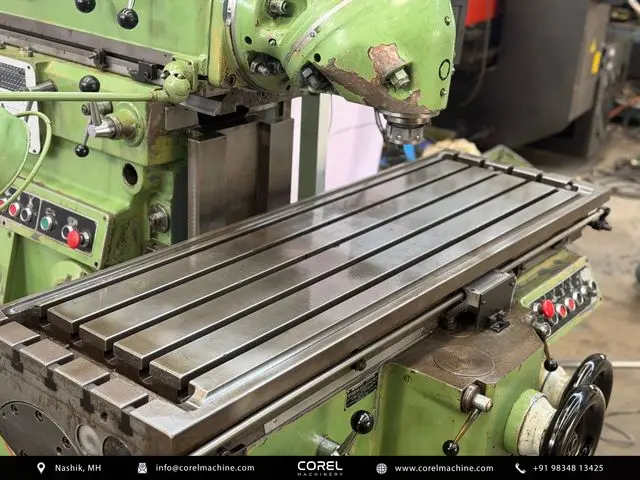

Table Size1435 x 460 mm
Travels (XYZ)1100 x 700 x 500 mm
Spindle HeadSwivelable 360°
Distance Spindle to Table9 - 509 mm
Spindle Taper40
Spindle Turning Speed Range30 - 2066 RPM
Turning Speed Steps27
Feed Speeds1.6 - 820 mm/min
Feed Steps27
Rapid Traverse X- and Y-Axis2.8 m/min
Rapid Traverse Z-Axis1.4 m/min
Total Power Requirement10 HP
Weight of the Machine3.1 t (approx.)
Dimensions of the Machine2.36 x 1.65 x 1.45 m (approx.)

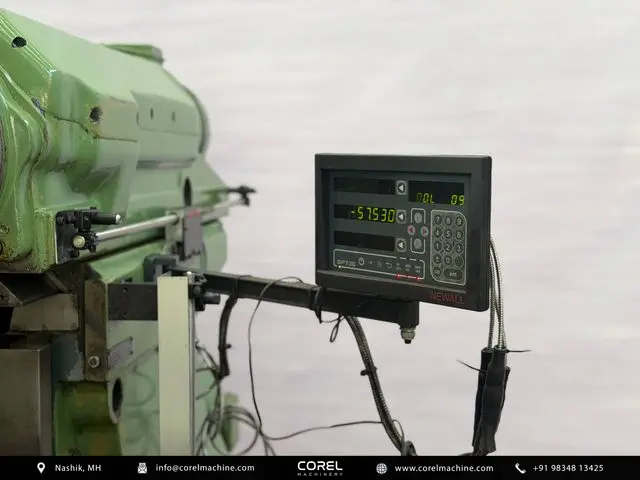

DRO EquippedXYZ Axis

Buying with Corel Machinery

  • Sourced abroad and inspected before we list it.
  • Genuine photos of this machine — inspect it at our Nashik yard before you buy.
  • A specialist used-machine importer and dealer since 2016.
  • Delivery and export logistics arranged worldwide.

Not sure yet? Talk to us before you commit — we reply within 24 hours.

+91 98348 13425

Machine Overview

The HURON NU4 is a universal milling machine designed for robust metal-cutting applications requiring precise toolroom or production machining. Corel Machinery offers this pre-owned unit to industrial buyers in India and across global markets. Featuring a generous table size of 1435 x 460 mm, the HURON NU4 accommodates medium to heavy workpieces, supported by physical travels of 1100 mm on the X-axis, 700 mm on the Y-axis, and 500 mm on the Z-axis. A core feature of this universal milling machine is its 360° swivelable spindle head, allowing complex angular positioning and multi-sided operations. The distance from the spindle to the table ranges from a minimum of 9 mm to a maximum of 509 mm, providing flexibility for varied fixture heights. Driven by a 10 HP total power requirement, the spindle utilizes a standard taper 40 interface. Spindle speeds range from 30 to 2066 RPM across 27 distinct turning speed steps, allowing operators to match speeds accurately to various cutter diameters and material types. Feed performance is equally adaptable, delivering feed speeds from 1.6 to 820 mm/min across 27 feed steps. For efficient positioning, the machine provides rapid traverse rates of 2.8 m/min on the X- and Y-axes and 1.4 m/min on the Z-axis. Structurally, the unit weighs approximately 3.1 tonnes and has external dimensions of approximately 2.36 x 1.65 x 1.45 meters. The HURON NU4 is well-suited for general engineering, tool and die manufacturing, maintenance shops, and custom job work requiring flexible universal milling capabilities. The unit is inspected, maintained, and available directly from Corel Machinery in India, with worldwide export and shipping services available upon request.

The HURON NU4 is a universal milling machine featuring a 1435 x 460 mm table, 1100 x 700 x 500 mm travels, and a 360° swivelable ISO 40 spindle. Powered by a 10 HP motor, it is available used and thoroughly inspected from Corel Machinery in India.

Frequently Asked Questions

What are the travel dimensions and table size of the HURON NU4?

The HURON NU4 features a table measuring 1435 x 460 mm. It delivers axis travels of 1100 mm on the X-axis, 700 mm on the Y-axis, and 500 mm on the Z-axis.

What spindle specifications does the HURON NU4 offer?

The machine features a 360° swivelable spindle head with a size 40 spindle taper. Spindle speeds range from 30 to 2066 RPM across 27 speed steps, powered by a 10 HP total system.

What are the floor space and weight requirements for this machine?

The machine has approximate overall dimensions of 2.36 x 1.65 x 1.45 meters. It has a total weight of approximately 3.1 tonnes.

How can I purchase and ship the HURON NU4 from Corel Machinery?

Corel Machinery stocks inspected, used machinery in India and provides complete logistics support. We arrange domestic delivery within India as well as international freight and shipping for overseas customers.
