Used KEARNEY & TRECKER 310-S-15 UNIVERSAL MILLING — sold (Milling Machines)

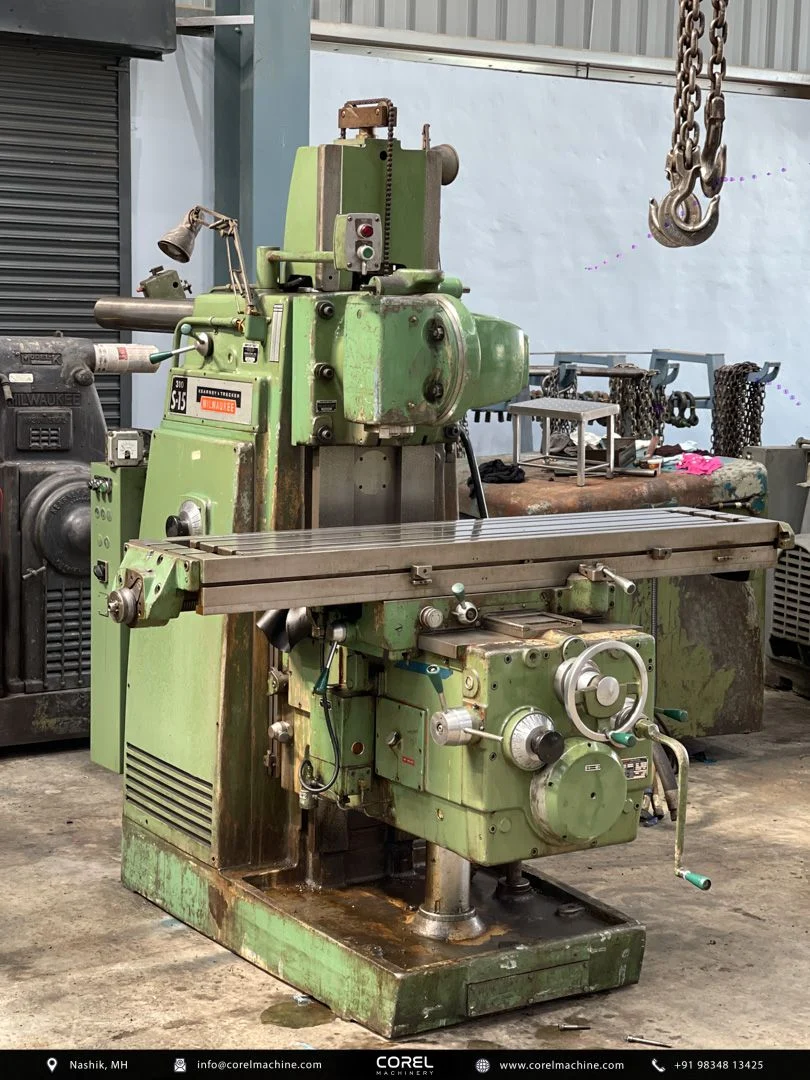

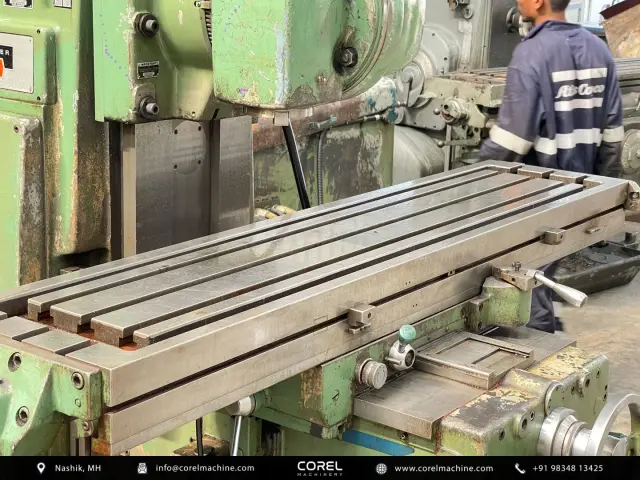

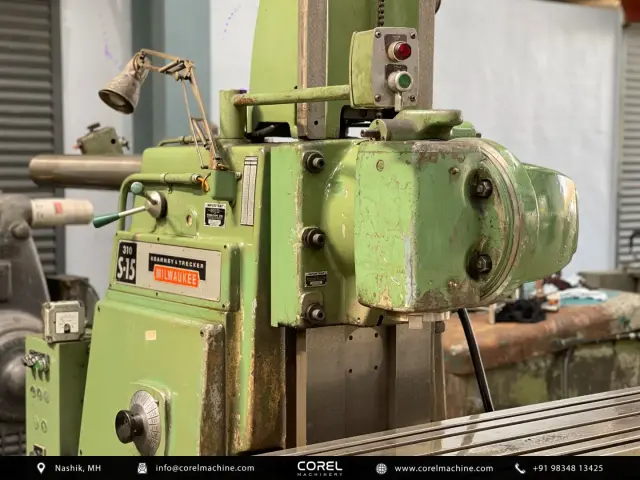

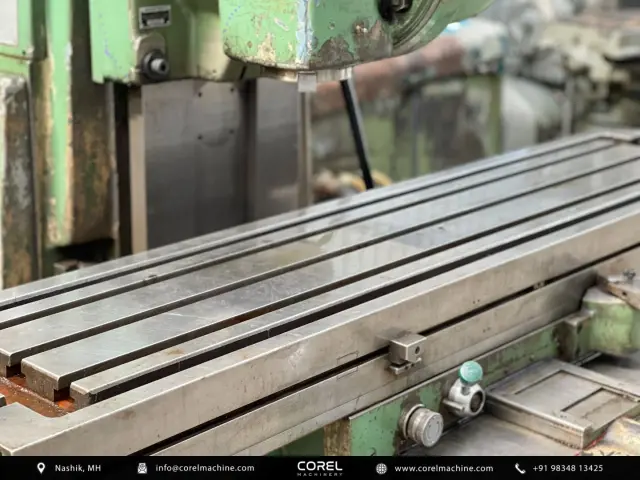

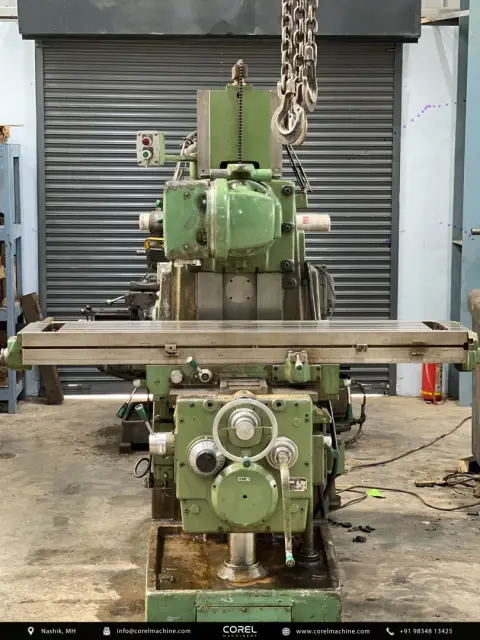

Corel Machinery offers the Kearney & Trecker 310-S-15 milling machine, a heavy-duty industrial metalworking machine designed for versatile shop operations. This knee-type milling machine features a generous table size of 1730 x 381 mm, providing ample working surface for securing large workpieces and specialized fixtures. Machine travels are configured with an X-axis longitudinal travel of 864 mm, Y-axis cross travel of 305 mm, and Z-axis vertical travel of 432 mm. The centerline distance from the spindle to the table top ranges from 0 to 455 mm, allowing operators to accommodate various workholding setups and part heights. Equipped with a double swivel spindle head and a standard ISO 50 spindle taper, the Kearney & Trecker 310-S-15 delivers robust cutting performance. The spindle is driven by a 10 HP main motor, providing necessary power for heavy milling operations. Spindle speeds range from 25 to 2000 RPM, selectable across 24 gear step changes to match various tooling and material requirements. Material feed rates are controlled via a dedicated 3 HP feed motor. The longitudinal and cross feed speeds offer 32 steps ranging from 3/8 to 90 IPM, while vertical feed speeds provide 32 steps ranging from 3/16 to 45 IPM. To reduce non-cutting time during setup and positioning, rapid traverse rates are rated at 150 IPM for the X and Y axes, and 75 IPM for the Z axis. These verified specifications make the Kearney & Trecker 310-S-15 well-suited for general machining, die and mold preparation, maintenance workshops, and medium-to-heavy production operations requiring precise angular and face milling. Imported, thoroughly inspected, and available from Corel Machinery in India, this used milling machine is ready for dispatch with domestic delivery and worldwide shipping options available.
