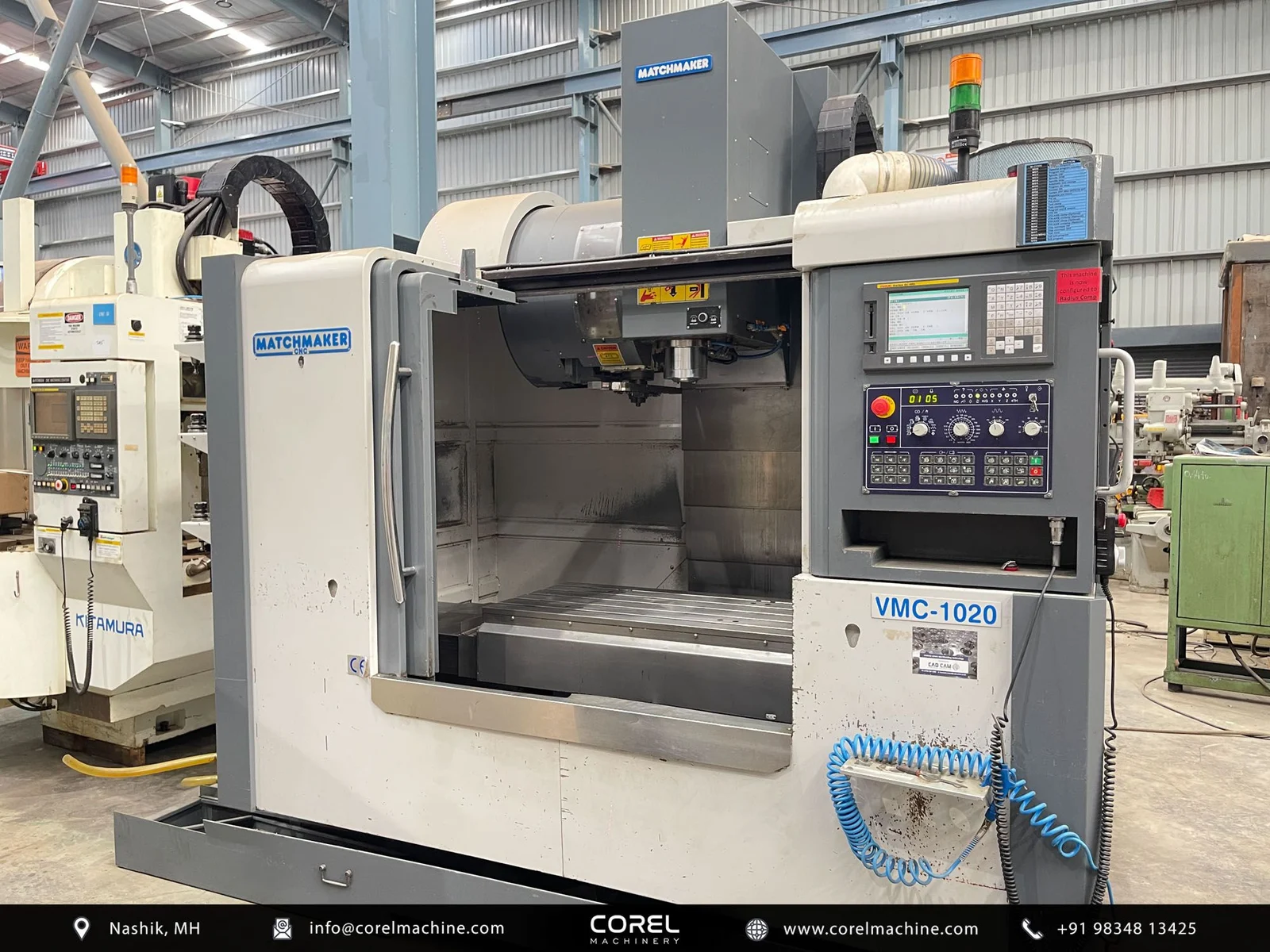

Used MATCHMAKER 1020 VMC for sale — Vertical Machining Centers (VMC)

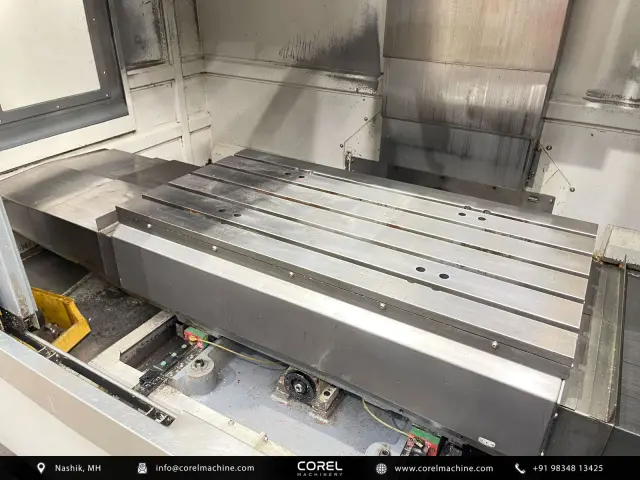

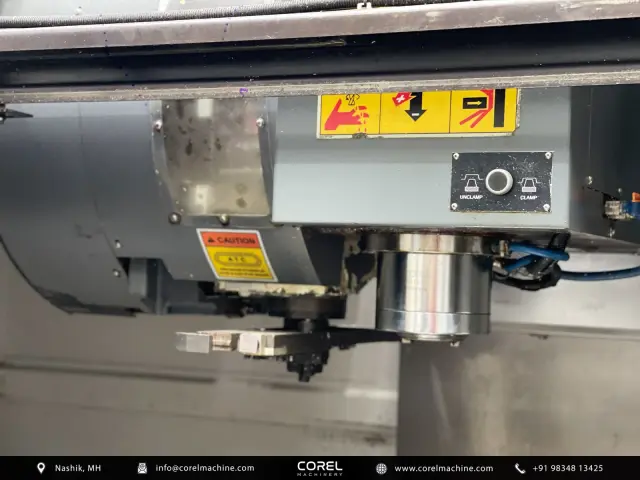

The Matchmaker 1020 is a 3-axis Vertical Machining Center designed for precise milling, drilling, and rigid tapping operations. Built with linear motion (LM) guideways across all axes, this machine ensures smooth, high-speed movement and precise positioning during heavy-duty production runs. It features a working table size of 1100 x 560 mm and offers axis travels of 1020 mm on the X-axis, 560 mm on the Y-axis, and 600 mm on the Z-axis, making it suitable for medium-to-large workpiece processing. Equipped with a BT40 spindle taper, the Matchmaker 1020 delivers spindle speeds up to 10000 RPM powered by an 11 kW main spindle motor. This combination provides the required torque and velocity for efficient metal removal across various materials, including steel, cast iron, and aluminum components. Tooling setup and automatic tool changes are handled via a 24-tool capacity arm-type Automatic Tool Changer (ATC), which minimizes non-cut times and supports continuous automated production cycles. Rapid traverse rates for the Matchmaker 1020 are rated at 36 meters per minute along the X and Y axes, and 24 meters per minute on the Z axis, facilitating quick positioning between cuts. Operational control is managed through a Fanuc Oi-MD CNC system coupled with Alpha Drives, delivering dependable motion control, precise interpolation, and user-friendly program execution for complex machining routines. Given its work envelope, spindle power, and rapid feeds, this machine is well-suited for general engineering job shops, automotive component manufacturing, die and mold preparation, and aerospace sub-assembly machining. The Matchmaker 1020 is imported, thoroughly inspected, and offered by Corel Machinery in India, with export and worldwide shipping services available.
