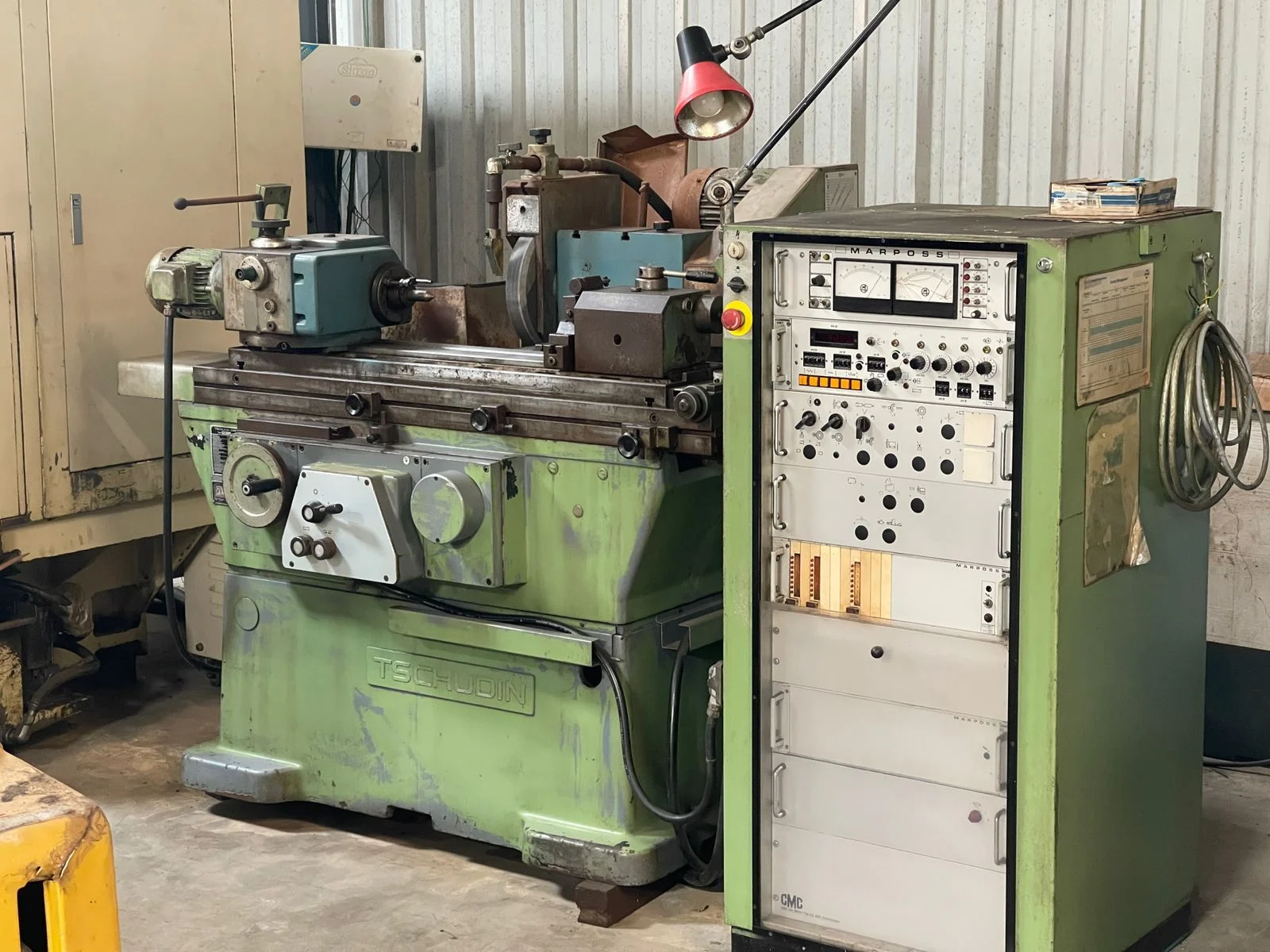

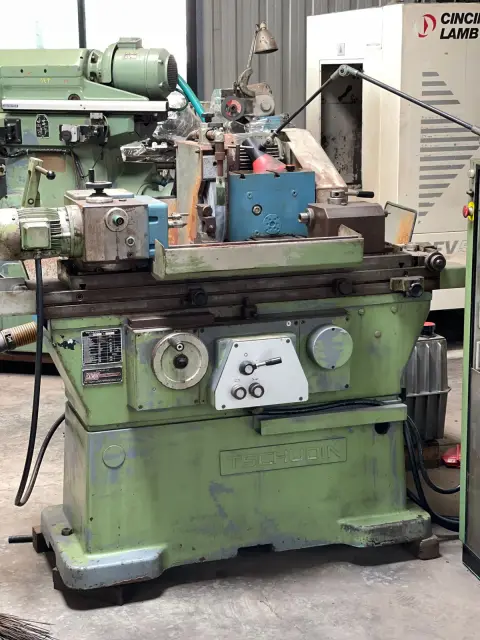

TSCHUDIN HTG 412 CYLINDRICAL GRINDER
Tschudin HTG 412
- Category
- Cylindrical Grinders
- Capacity
- Ø200 X 480 MM
Technical Specifications
Buying with Corel Machinery
- Sourced abroad and inspected before we list it.
- Full specifications and genuine photos on every machine.
- A specialist used-machine importer and dealer since 2016.
- Delivery and export logistics arranged worldwide.
Not sure yet? Talk to us before you commit — we reply within 24 hours.
+91 98348 13425Machine Overview

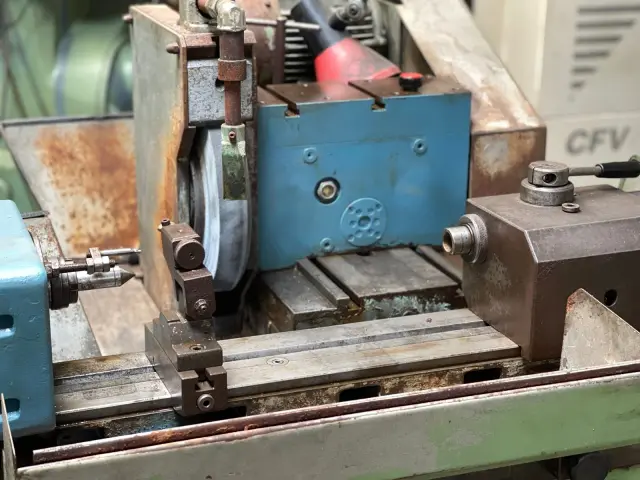

Centre height 100 mm Distance between centres: 480 mm Grinding wheel: Diameter 350 mm Width 50 mm Bore 127.0 mm Grinding wheel speeds: number (steps) 3 from 1640 rpm up to 2300 rpm Work piece spindle head: speeds: 65 rpm to 500 rpm rotatable 360 ° Spindle taper: 5 MT Taper in tailstock: 3 MT Table angular displacement 9 ° Table speed: 0 m/min to 5.0 m/min Voltage 50 Hz 3x 380 Volt External Grinding wheel motor 3 kW Workpiece spindle motor 0.55 kW Total power required 5 kVA Machine’s weight about 2300 kg Overall dimensions machine: Length 1800 mm Width 1200 mm Height 1500 mm
The Tschudin HTG 412 is a precise external cylindrical grinder featuring a 480 mm distance between centres, spindle speeds of 65-500 rpm, and a variable table speed up to 5.0 m/min. This machine is currently available used through Corel Machinery, India, and is ready for global shipping and immediate integration.
Frequently Asked Questions
What is the maximum workpiece length the Tschudin HTG 412 can accommodate?
The Tschudin HTG 412 has a distance between centres of 480 mm. This defines the maximum length of the component that can be mounted between the headstock and tailstock for grinding operations.
Does this grinder allow for variable speed adjustments?
Yes, the machine features a spindle speed range of 65 rpm to 500 rpm. Additionally, the table speed is adjustable from 0 m/min to 5.0 m/min to suit specific application requirements.
What is the inspection process for used machines at Corel Machinery?
Corel Machinery conducts thorough inspections on all used equipment before it is listed for sale. We ensure that every machine meets our operational standards for importers and dealers, and we can provide additional details regarding the machine's current status upon request.
Can Corel Machinery arrange shipping outside of India?
Yes, Corel Machinery manages logistics for both domestic delivery within India and international shipping. We handle the export procedures to ensure your machine reaches your facility worldwide.
