Used WMW HECKERT FSS 400 VI/2 VERTICAL MILLING MACHINE — sold (Milling Machines)

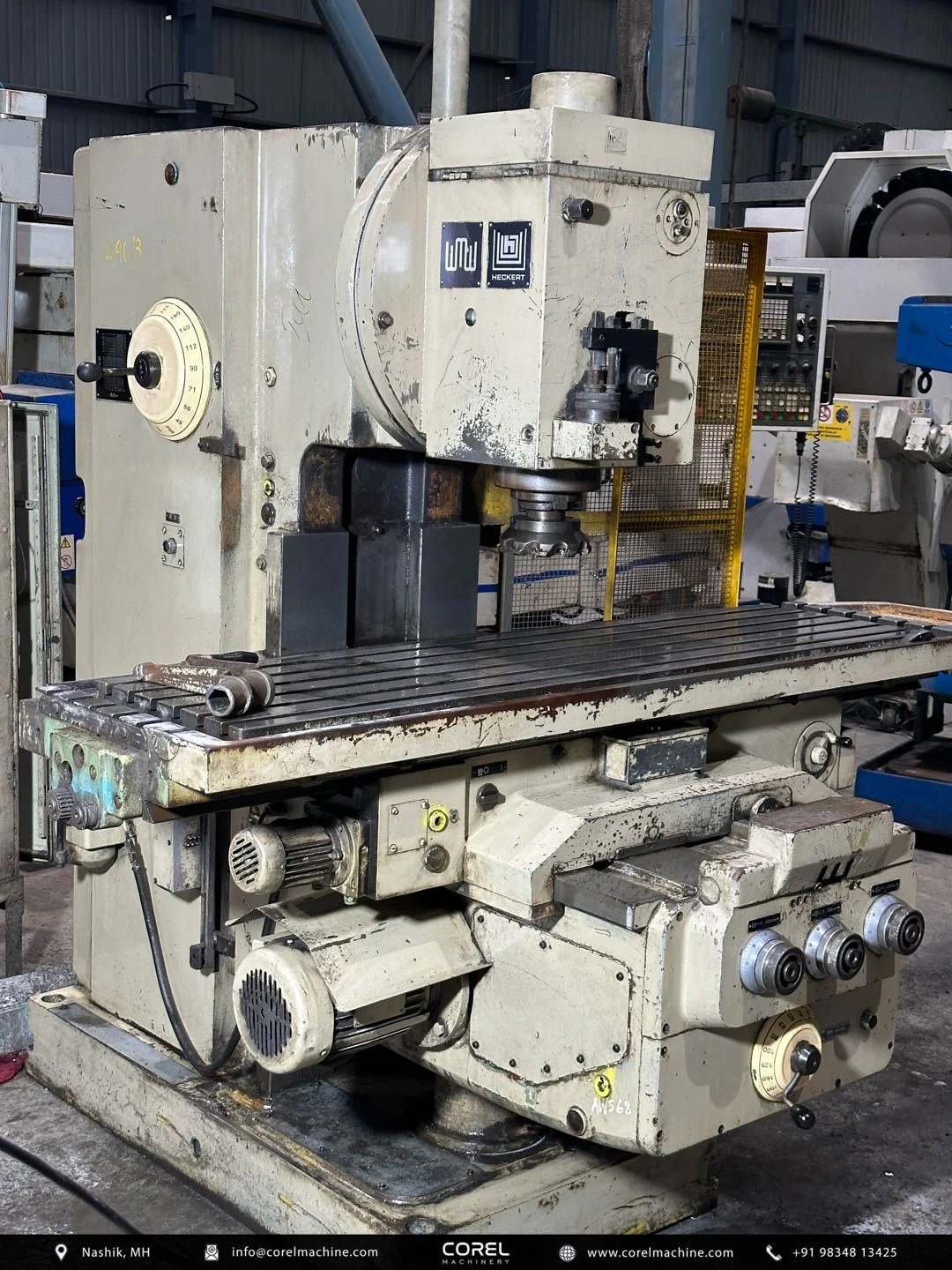

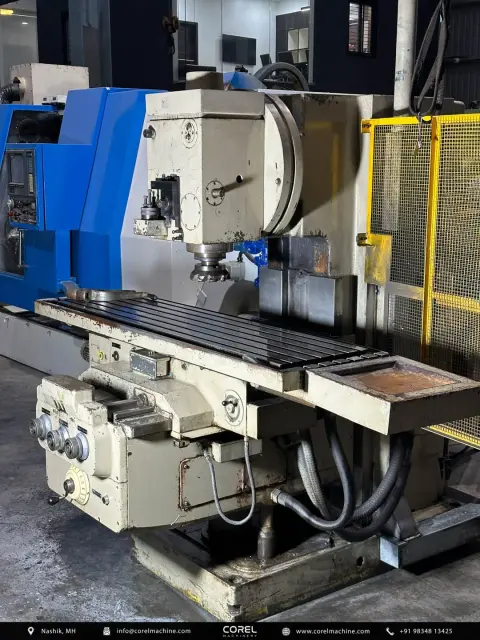

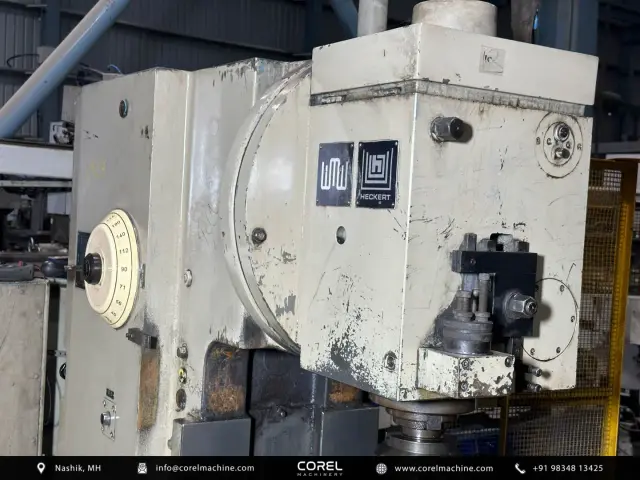

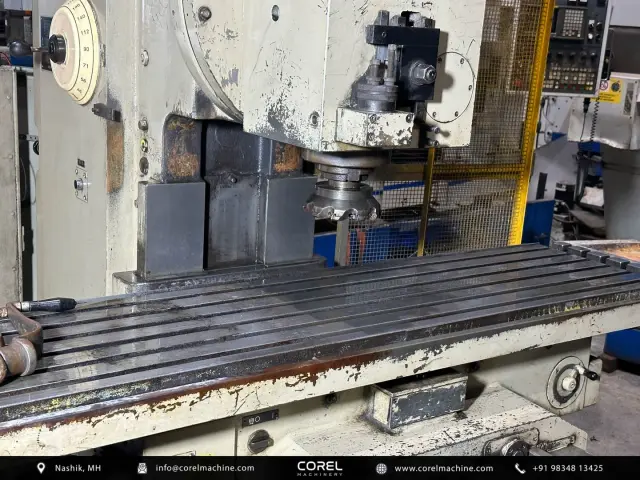

Corel Machinery offers the WMW FSS 400 VI/2, a robust milling machine engineered for precision machining tasks in industrial manufacturing environments. Designed to meet the demanding requirements of production engineers and workshop managers, this machine combines substantial structural integrity with versatile operational parameters. At the core of its operational capacity is a generous clamping surface area of 1600 mm in length and 400 mm in width, supported by a maximum table load capacity of 1.5 tons. This robust table setup allows for the secure mounting of heavy workpieces commonly found in heavy engineering, tool and die making, and general contract machining. The machine offers extensive travel capabilities across three axes, providing an x-travel of 1120 mm, a y-travel of 400 mm, and a z-travel of 430 mm. These travel dimensions accommodate a wide variety of medium to large-scale components. Spindle performance on the WMW FSS 400 VI/2 is driven by a tool taper of SK 50, ensuring high rigidity and secure tool retention during aggressive material removal operations. The spindle offers 18 distinct steps for revolutions per minute, ranging from 28 to 1400 U/min, allowing operators to match cutting speeds precisely to specific material requirements. Additionally, the distance from the spindle center to the column is 450 mm, while the distance between the spindle nose and the table ranges from a minimum of 70 mm to a maximum of 500 mm. The milling head features a swiveling capability of plus or minus 45 degrees left and right, adding flexibility for angled machining operations. Vertical positioning and drilling-like operations are further supported by a quill stroke of 100 mm. Feed rates for the z-axis are adjustable across 18 steps, ranging from 5 to 250 mm/min, ensuring controlled and consistent motion under load. Powering these systems requires a total power requirement of 14.5 kW. In terms of physical footprint, the main machine body weighs approximately 4 tons and measures approximately 2.0 meters in length, 1.7 meters in width, and 2.7 meters in height. It is accompanied by a separate electric cabinet with dimensions of 0.8 meters in length, 0.45 meters in width, and 1.6 meters in height. This WMW FSS 400 VI/2 milling machine has been imported and thoroughly inspected by Corel Machinery in India, making it a reliable addition to any production floor requiring dependable milling performance. Worldwide shipping options are available.
