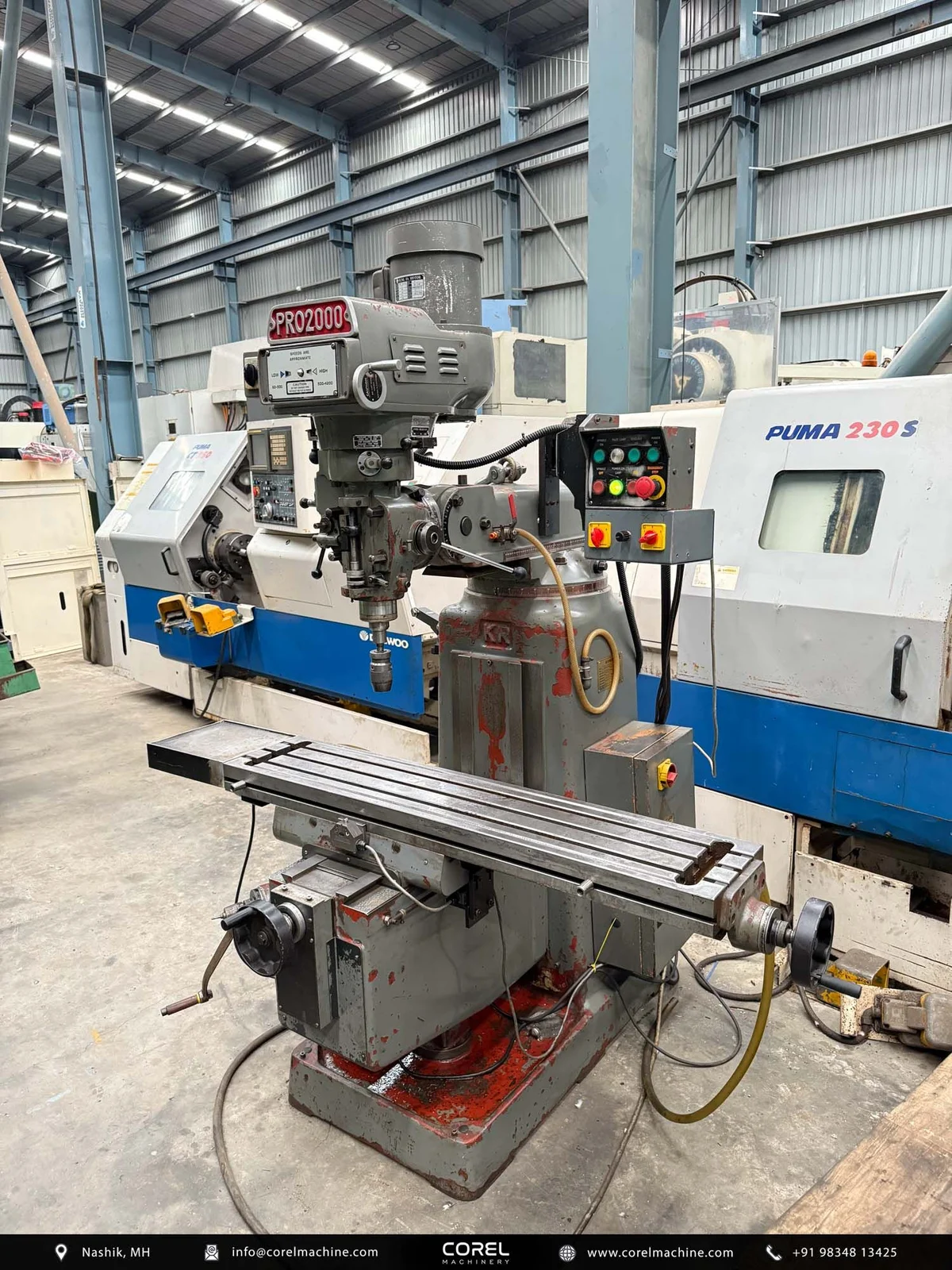

Used XYZ KRV PRO 2000 M1TR TURRET (BALL-SCREW) MILLING MACHINE for sale — Milling Machines

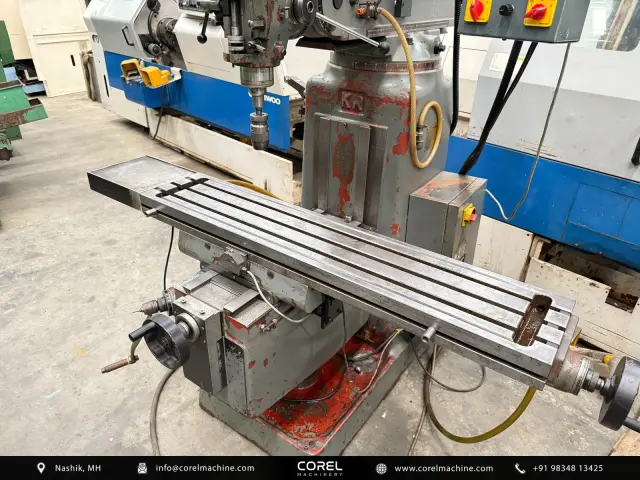

The XYZ KRV PRO 2000 M1TR is a Vertical M1TR Turret Milling Machine designed for precision machining operations in production environments. Built with a robust table measuring 1270 mm x 254 mm, this machine offers substantial workspace for handling diverse milling tasks. It features manual table movements with a longitudinal travel of 800 mm, a cross travel of 400 mm, and a vertical travel of 406 mm. The table is equipped with three T-slots measuring 15.9 mm, accommodating M12 x 16 mm fixings for secure workpiece clamping. Flexibility in positioning is further enhanced by a ram travel (overarm) of 450 mm, allowing the spindle to reach various points across the work area with a distance ranging from 50 mm to 456 mm between the spindle nose and table. The machine is powered by a 2.25 kW (3 HP) motor, providing reliable drive capability for its dual spindle speed ranges. Operating at 50 Hz, the speed range offers a Low setting of 50 to 500 rpm and a High setting of 500 to 3500 rpm, making it adaptable to different material removal rates and tooling requirements. It utilizes an R8 spindle taper and features an 80 mm quill diameter with a total quill travel of 127 mm. For precision drilling and boring operations, the quill feeds can be set to 0.038, 0.076, or 0.152 mm per revolution. With a compact overall floor space requirement of 1800 x 1700 x 2150 mm, the XYZ KRV PRO 2000 M1TR integrates efficiently into machine shops, tool rooms, and manufacturing facilities focused on component fabrication, prototyping, and general engineering works. This pre-owned milling machine has been imported, thoroughly inspected, and is available from Corel Machinery in India, with worldwide shipping options to support global manufacturing operations.
