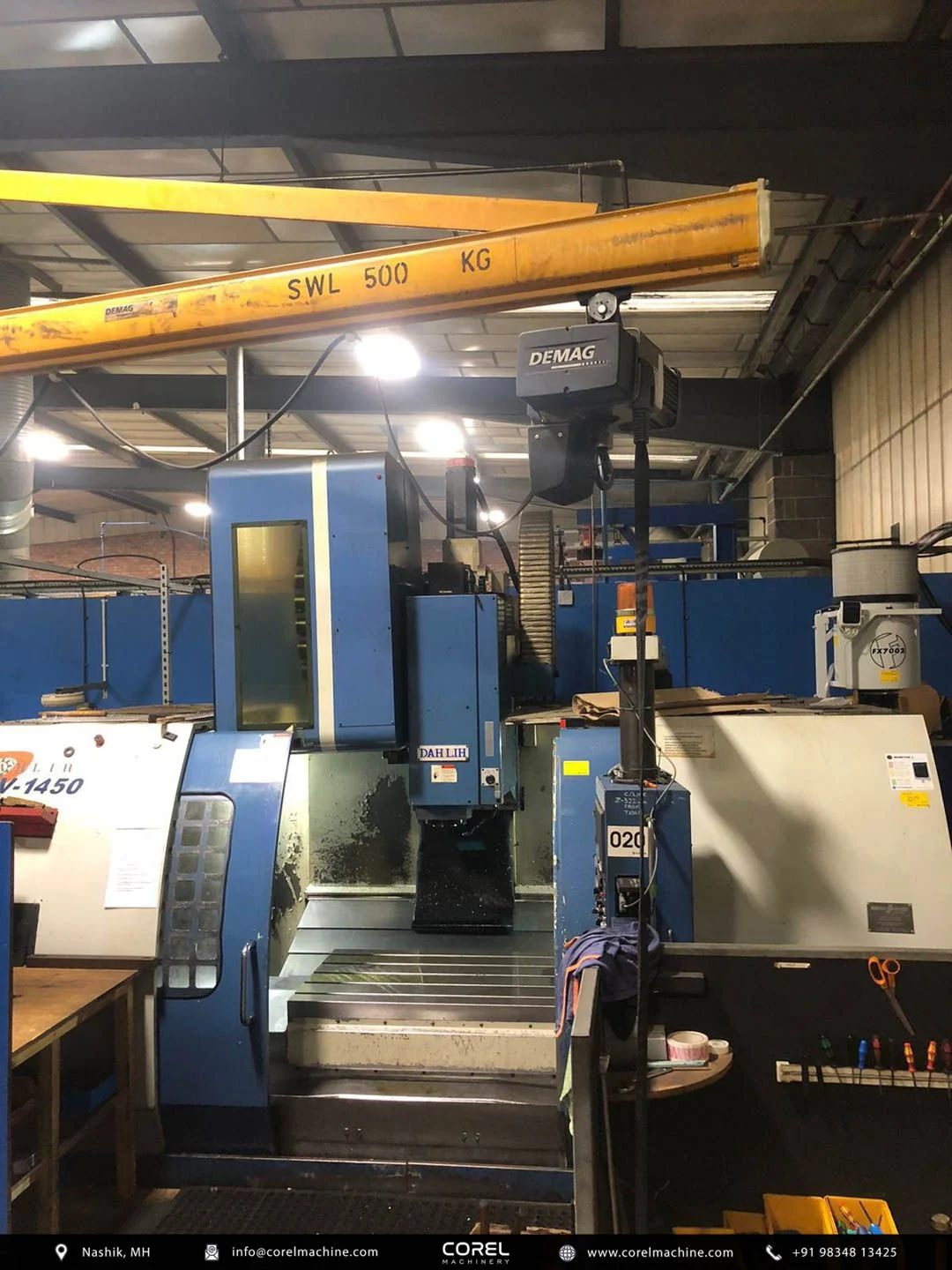

Used DAHLIH DL-MCV 1450 VMC (4 AXIS) — sold (Vertical Machining Centers (VMC))

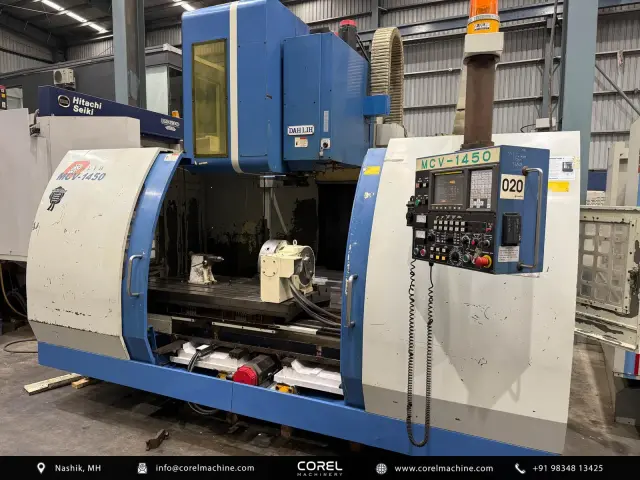

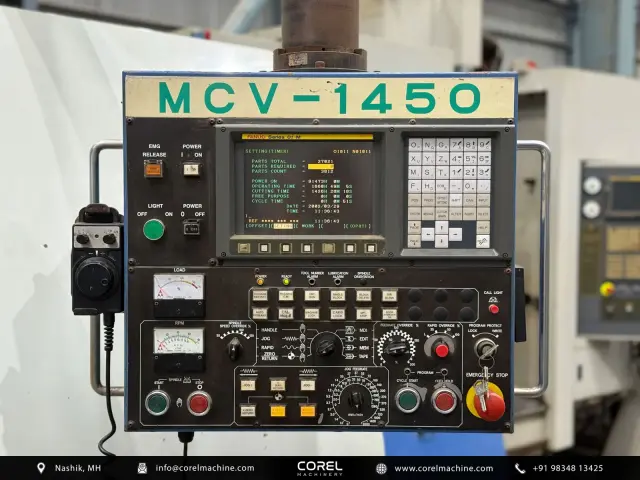

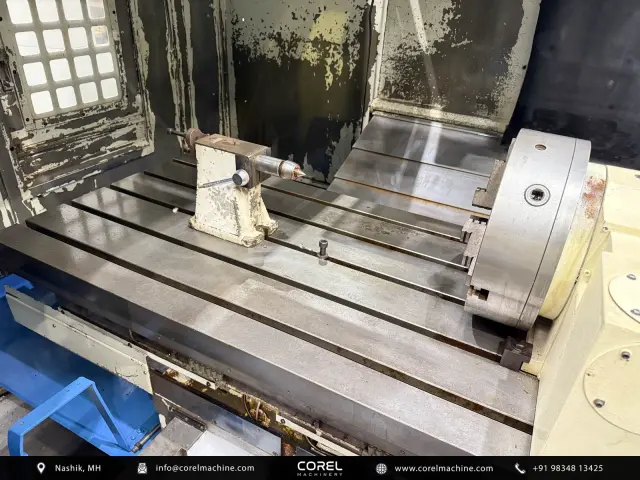

Corel Machinery offers the used Dahlih DL-MCV 1450, a robust 4-axis Vertical Machining Center designed for heavy-duty milling and precision machining operations. Built with rigid box guideways and a heavy-duty cast structure, this machine delivers the stability required for demanding industrial applications. The table measures 1600 x 800 mm and is engineered to support a maximum load of up to 2000 kg, making it exceptionally well-suited for large, heavy workpieces often found in heavy engineering, mold and die, and general component manufacturing. Axis travels for the DL-MCV 1450 are specified at 1450 mm along the X-axis, 750 mm along the Y-axis, and 750 mm along the Z-axis. The distance from the spindle nose to the table ranges from a minimum of 200 mm to a maximum of 950 mm, providing generous vertical clearance for diverse tooling and workpiece configurations. Powering the cutting operations is a gear-driven BT50 spindle capable of speeds up to 6000 RPM, delivering the high torque necessary for aggressive material removal rates in tough metals. Operation is managed via the Fanuc Oi-M control system, offering reliable and familiar programming capabilities for production environments. Tool management is streamlined through an arm-type Automatic Tool Changer (ATC) with a capacity of 30 tools (TBC), allowing for efficient multi-operation job setups. In terms of physical footprint, the machine measures 3,556 mm in length, 2,540 mm in width, and 2,794 mm in height, with an approximate overall weight of 6.5 tonnes. This imported used Dahlih DL-MCV 1450 Vertical Machining Center has been thoroughly inspected by Corel Machinery and is ready for deployment in production facilities across India, with worldwide shipping options available. Contact Corel Machinery today to request a detailed quotation and inspect this machine.
