Used HITACHI SEIKI CA23-II CNC TURN MILL (Y + C Axis + Sub Spindle) for sale — CNC Turning Centers

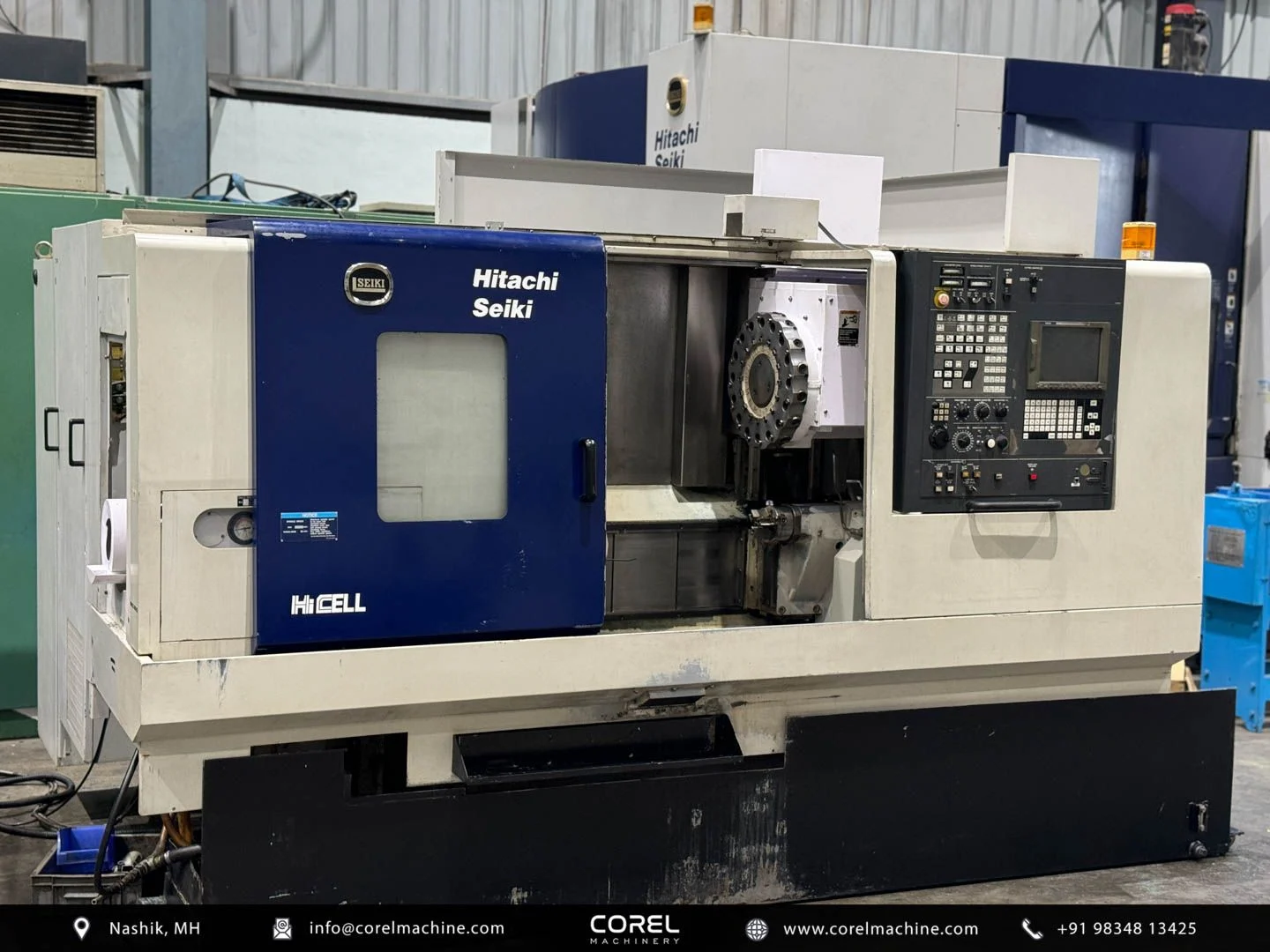

The Hitachi Seiki CA23-II is a high-performance multi-axis CNC turning center designed for complex machining operations requiring high precision. Built as a slant bed machine with LM guideways, this turning center is engineered to deliver exceptional structural rigidity and positioning accuracy. It features a Fanuc 18iT control system, providing operators with a reliable, industry-standard interface for programming and execution. With a swing of 450 mm and a maximum turning length of 500 mm, the machine accommodates a wide variety of workpieces, offering robust performance for diverse manufacturing operations. In terms of motion capability, the Hitachi Seiki CA23-II provides a travels range of 265 mm on the X-axis, +/- 60 mm on the Y-axis, and 530 mm on the Z-axis. This multi-axis configuration is complemented by a high-resolution C-axis offering indexing down to 0.001 degrees, allowing for detailed contouring and off-center milling operations. The integrated spindle features an A2-8 spindle nose (to be confirmed) and operates at a maximum rotation speed of 4000 RPM, delivering stable torque and speed characteristics. Tooling options are supported by a 16-station turret utilizing VDI 30 tool holders, which facilitates rapid tool changes and minimizes setup times. These capabilities make the Hitachi Seiki CA23-II ideal for producing precision components in sectors such as automotive engineering, general machinery fabrication, and aerospace manufacturing. The combination of Y-axis travel and a 16-station turret allows for single-setup processing of complex parts, reducing handling and improving overall turnaround times. It is well-suited for operations that require a balance of high-speed turning and accurate secondary milling or drilling. This used machine is imported, inspected, and offered by Corel Machinery, India. It is available for inspection and ready for delivery, with worldwide shipping options available to meet your production needs.
