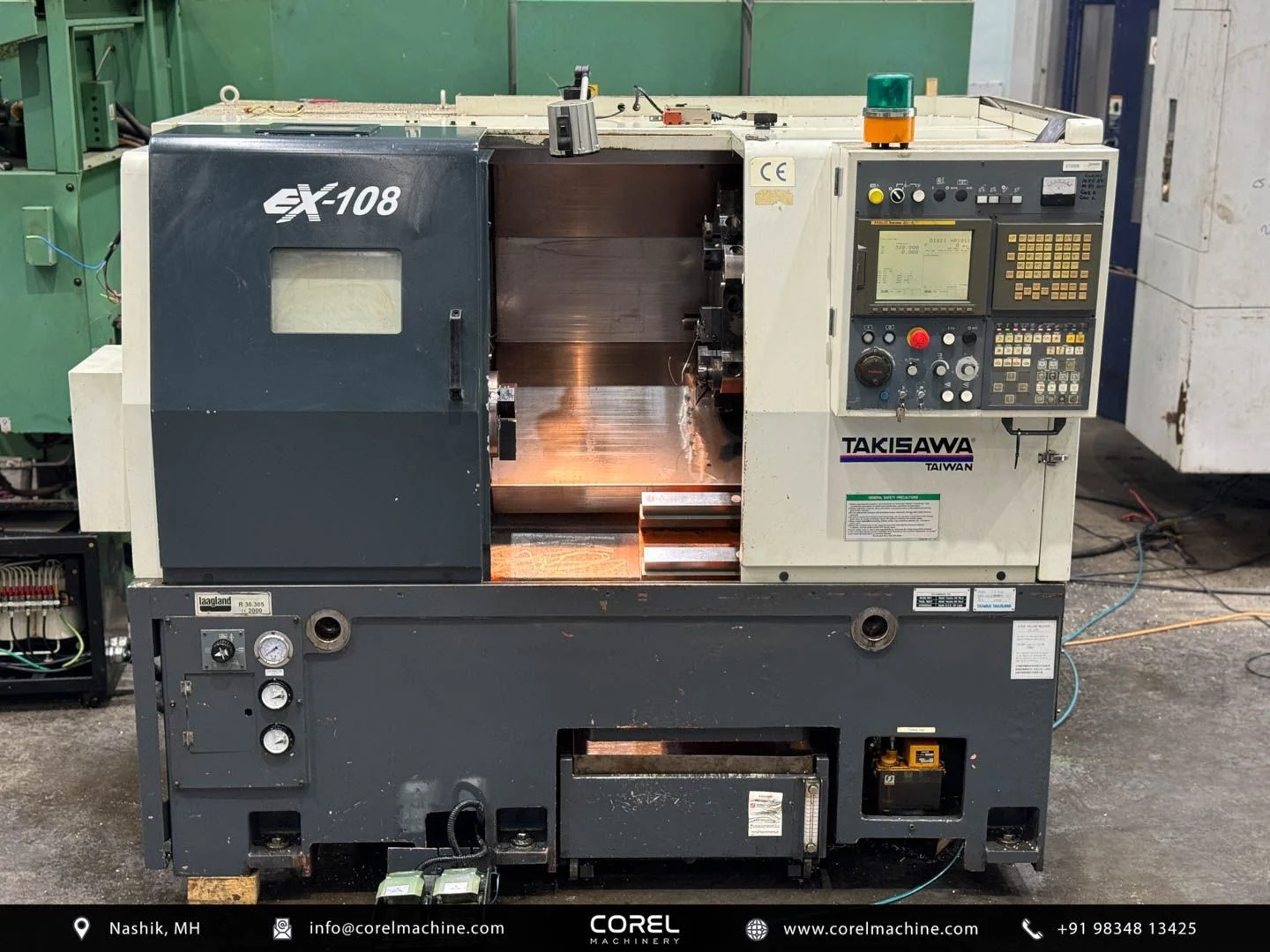

Used TAKISAWA EX-108 CNC LATHE for sale — CNC Turning Centers

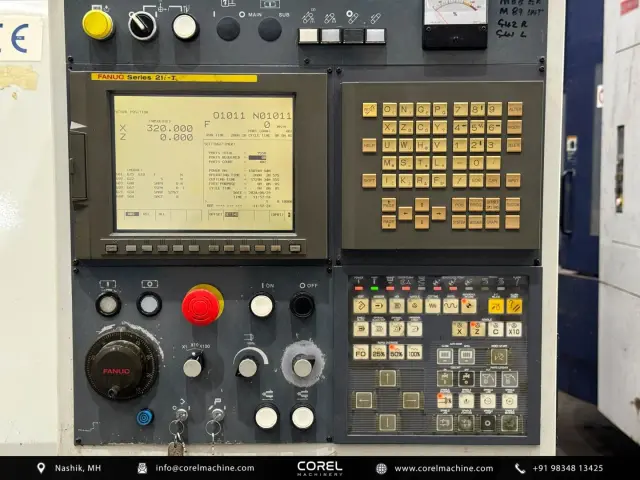

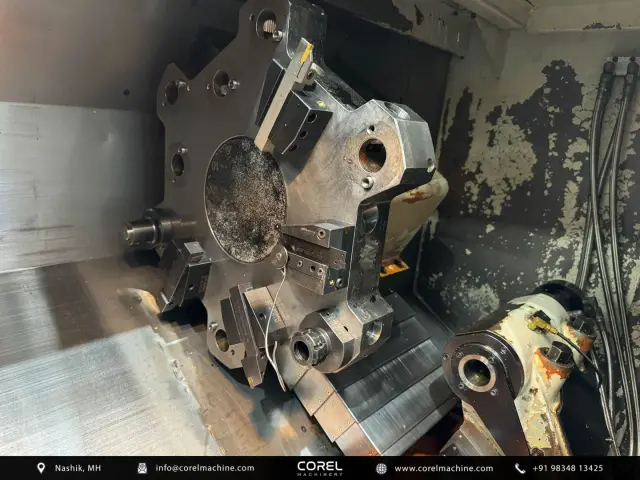

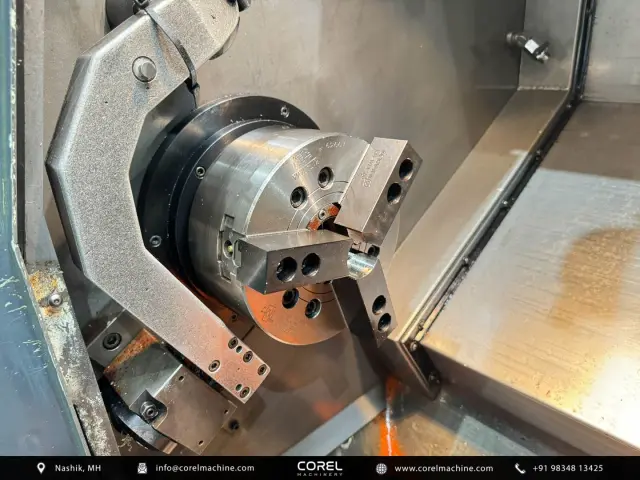

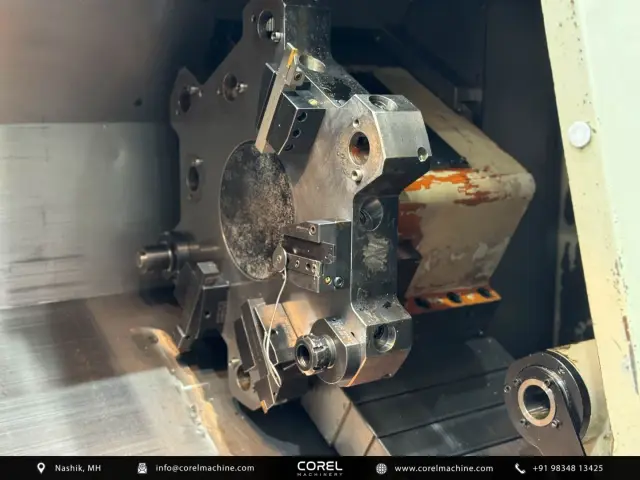

The Takisawa EX-108 is a compact, high-precision slant bed CNC turning center designed for efficient metal-cutting operations. Built with a sturdy frame weighing approximately 4.5 tonnes and physical dimensions of 2240 x 1645 x 1170 mm, this machine utilizes Linear Motion (LM) guideways to support smooth, precise axis travel. The machine features an X-axis travel of 180 mm and a Z-axis travel of 530 mm. Workpiece capacity includes a maximum swing of 480 mm, a maximum turning diameter of 320 mm, and a maximum turning length of 476 mm. At the core of the spindle system is an A2-6 spindle nose with a 76 mm spindle bore, fitted with a 200 mm chuck. Driven by a 7.5 / 11 kW spindle motor, the headstock is capable of reaching a maximum rotation speed of 4000 RPM (TBC). Tooling is managed via a 12-station turret that accommodates standard 25 mm turning tools and boring bars with a shank diameter of 40 mm. For longer shaft work, the machine is equipped with a tailstock featuring a 100 mm quill stroke. Control operations are driven by a Fanuc 21i-T CNC system, offering proven reliability for precision turning. The structural design and capacity of the Takisawa EX-108 make it suitable for a wide range of general engineering, automotive component manufacturing, and job shop machining tasks requiring tight tolerances on small-to-medium-sized cylindrical components. This used Takisawa EX-108 CNC turning center has been thoroughly inspected and is available directly through Corel Machinery in India, with worldwide shipping options provided for international buyers.
