Used LEADWELL V40 VMC (4 Axis) for sale — Vertical Machining Centers (VMC)

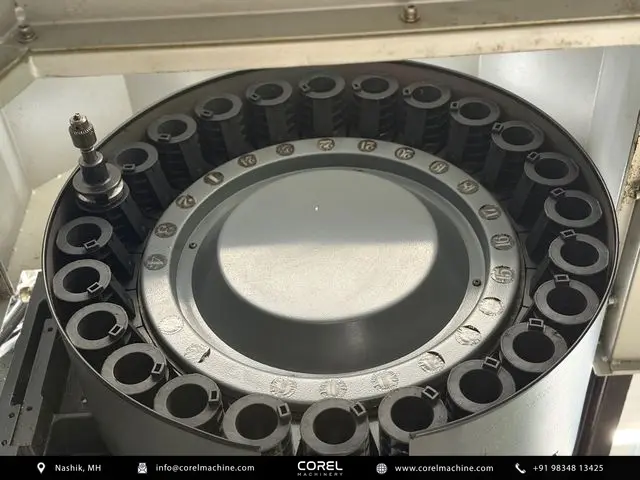

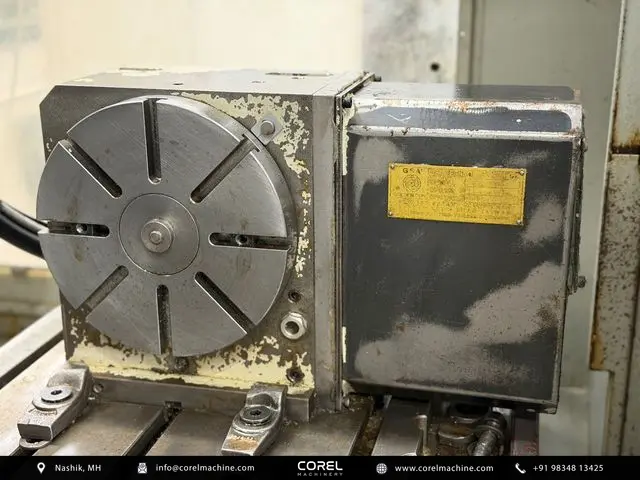

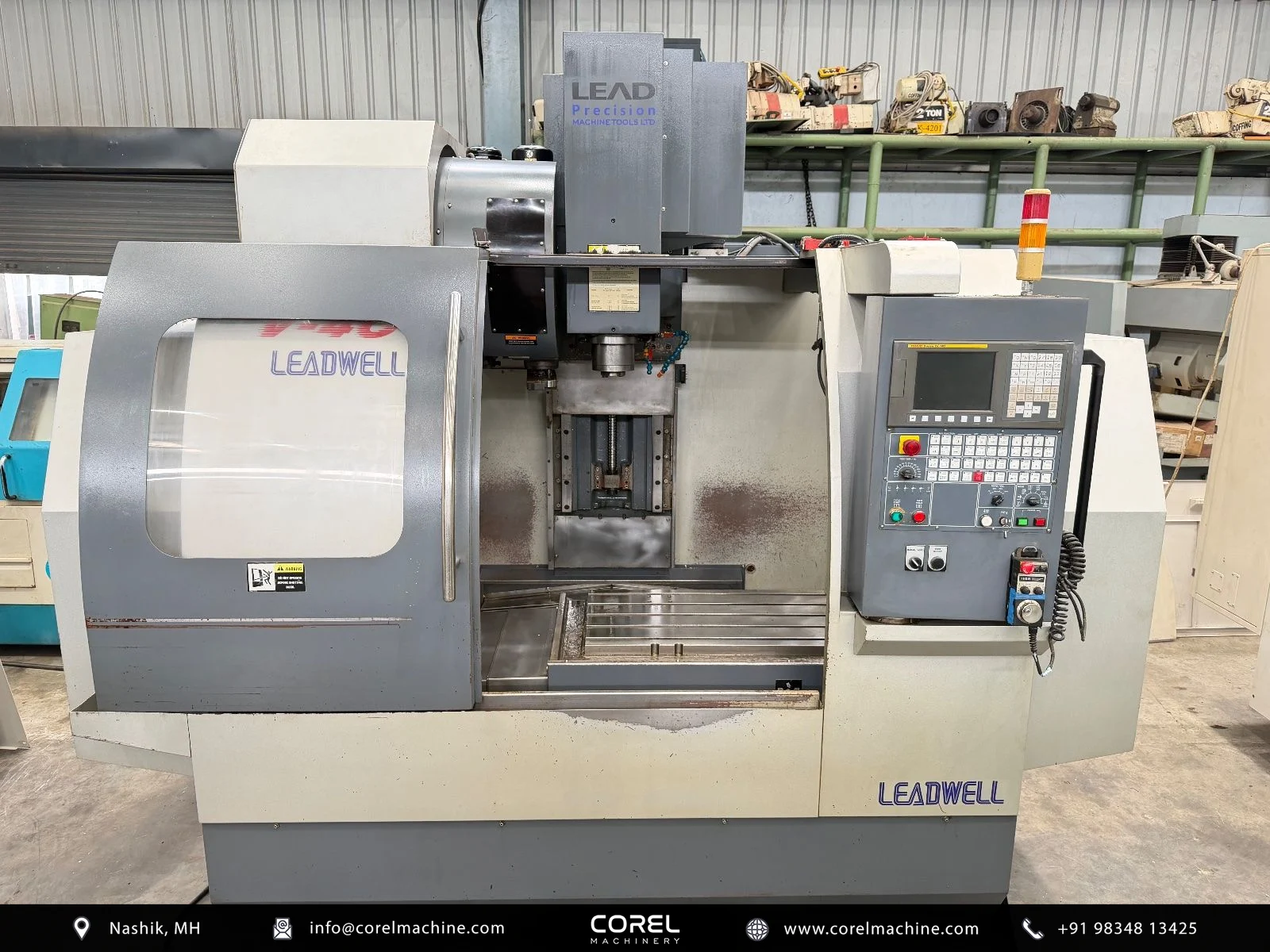

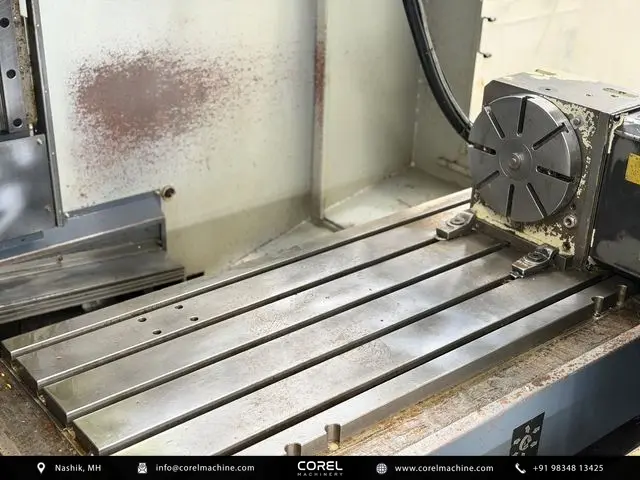

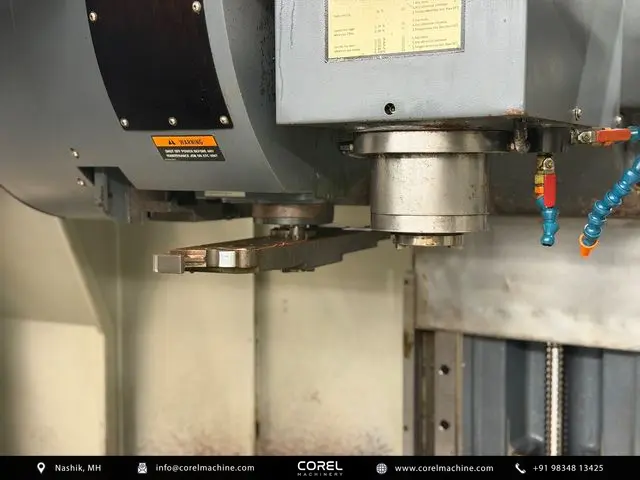

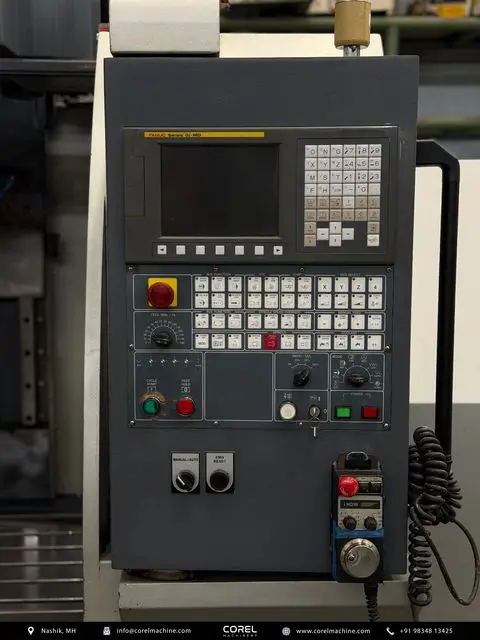

The LEADWELL V40 is a 4-axis Vertical Machining Center (VMC) equipped with a Fanuc Oi-MD control system. Engineered for multi-side machining and versatile milling operations, this machine features X, Y, and Z axis travels of 1020 mm, 510 mm, and 610 mm, along with a distance from the spindle nose to table ranging from 100 mm to 710 mm. It rides on linear motion (LM) guideways, ensuring rigid and precise positioning across all axes. The machine includes an integrated Ø250 mm 4th axis rotary table to handle complex rotational workpieces and indexed multi-axis machining. At the core of the cutting system is a BT40 spindle powered by an 18.5 kW motor, delivering speeds up to 8000 RPM. Tool management is driven by an arm-type automatic tool changer (ATC) with a 24-tool capacity. The ATC accommodates a maximum tool weight of 7 kg, a maximum tool length of 250 mm, and a maximum tool diameter of 80 mm (or up to 110 mm without adjacent tools installed). These features make the machine well-suited for medium to heavy-duty milling, drilling, and tapping applications in sectors such as automotive component manufacturing, general engineering, and job-shop production requiring 4-axis capabilities. This imported LEADWELL V40 has been inspected and verified by Corel Machinery. Located in India, it is ready for deployment with worldwide shipping options available. Contact Corel Machinery to request pricing and technical details.
