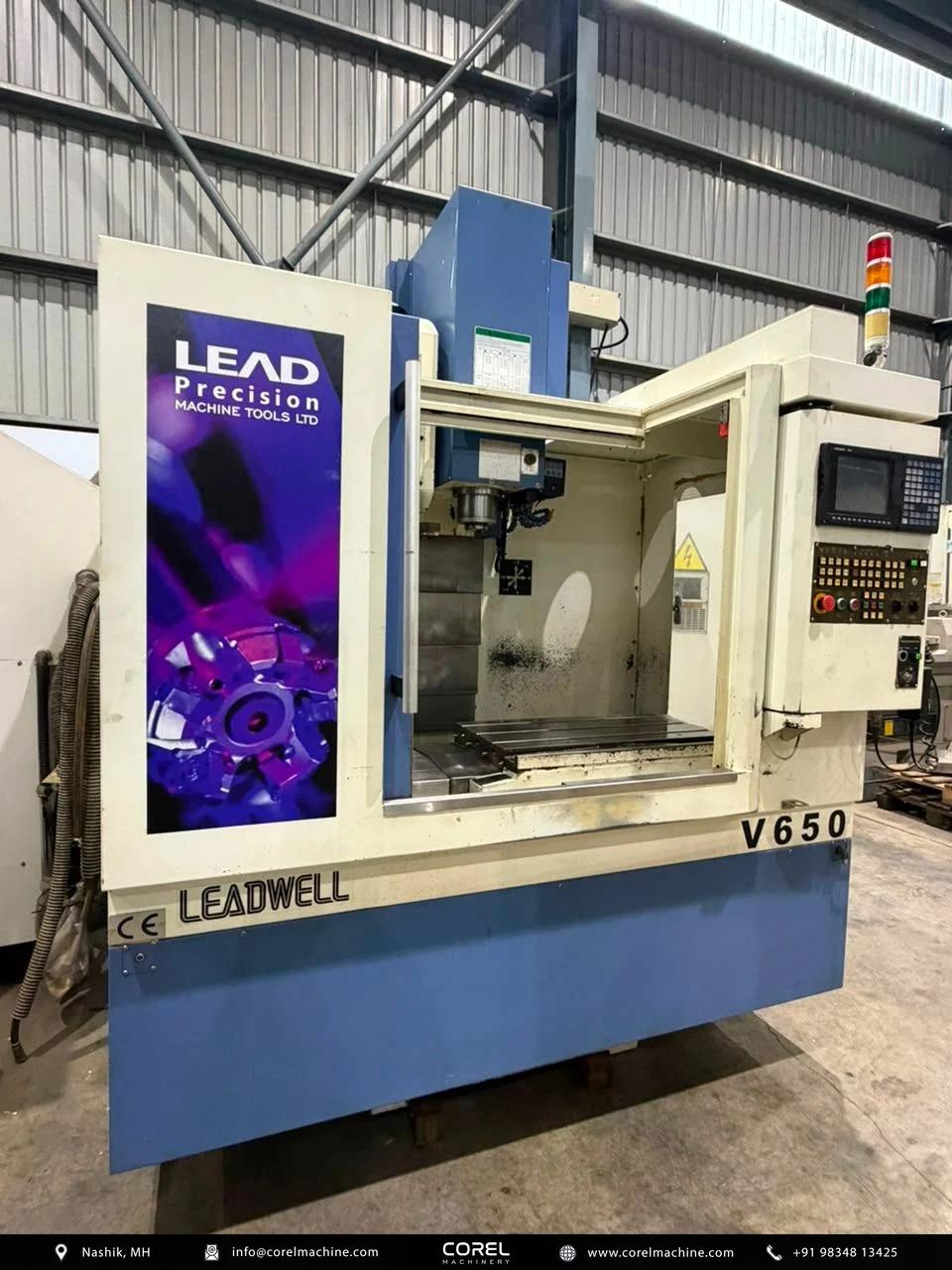

Used LEADWELL V650 Vertical Machining Center (VMC) for sale — Vertical Machining Centers (VMC)

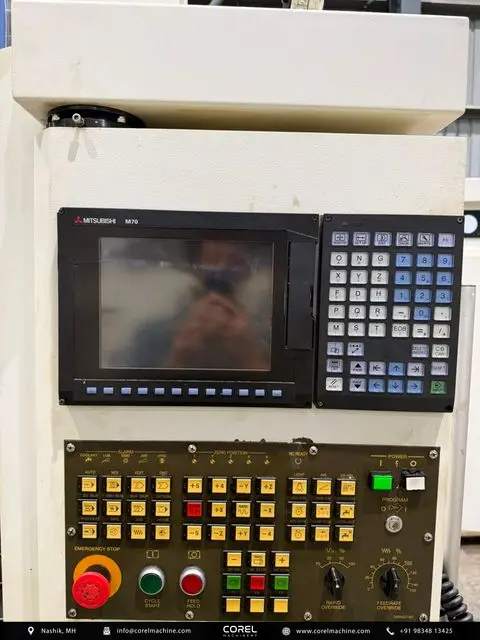

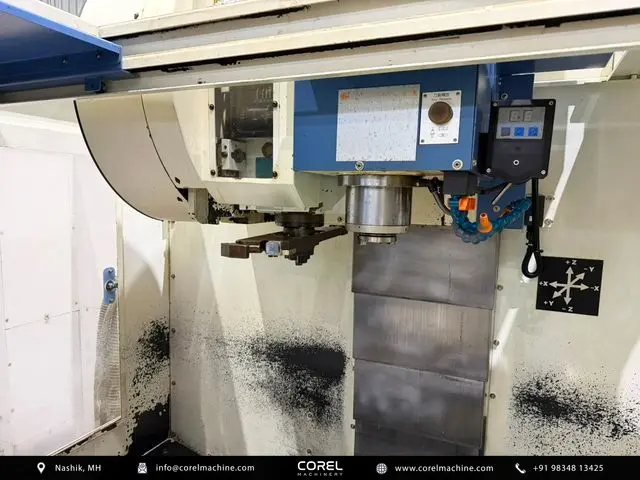

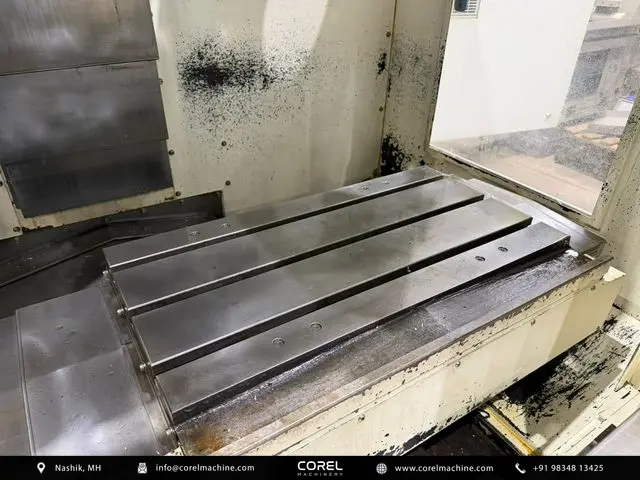

The LEADWELL V650 is a 3-axis Vertical Machining Center (VMC) equipped with a Mitsubishi M70 CNC control system. Designed for precise and efficient milling operations, this machine features a 800 x 500 mm worktable capable of handling a maximum table load capacity of 300 Kg. The machine offers axis travels of 650 mm on the X-axis, 450 mm on the Y-axis, and 550 mm on the Z-axis, with a spindle nose to table clearance ranging from a minimum of 125 mm to a maximum of 625 mm. Linear Motion (LM) guideways provide smooth axis movement, supporting rapid traverse rates of 36 m/min on the X and Y axes and 30 m/min on the Z-axis. Machining power is delivered by an 11 kW spindle motor driving a BT/CT 40 taper spindle capable of speeds up to 10000 RPM. For automated tool management, the LEADWELL V650 includes an ARM-type Automatic Tool Changer (ATC) with a 24-station tool capacity, facilitating reduced cycle times during complex machining sequences. The physical structure of the machine occupies a footprint measuring 2664 x 2345 x 2500 mm (L x W x H) and carries a total machine weight of 3.5T. Given its work envelope, 10000 RPM spindle, and 24-station arm-type ATC, the LEADWELL V650 is well-suited for general precision component manufacturing, die and mold work, automotive parts processing, and batch production of small-to-medium metal parts. This imported used machine is thoroughly inspected and available from Corel Machinery in India, with worldwide shipping services offered to international buyers.
