Used QUASER MK 60 II S TWIN PALLET VMC for sale — Vertical Machining Centers (VMC)
QUASER MK 60 II S TWIN PALLET VMC
Quaser MK 60 II S
- Category
- Vertical Machining Centers (VMC)
- Capacity
- 1020 X 610 X 560 MM
- Control
- Fanuc 18MC (Alpha Drives)
- Year (YOM)
- 2000
Technical Specifications
Buying with Corel Machinery
- Sourced abroad and inspected before we list it.
- Full specifications and genuine photos on every machine.
- A specialist used-machine importer and dealer since 2016.
- Delivery and export logistics arranged worldwide.
Not sure yet? Talk to us before you commit — we reply within 24 hours.
+91 98348 13425Machine Overview

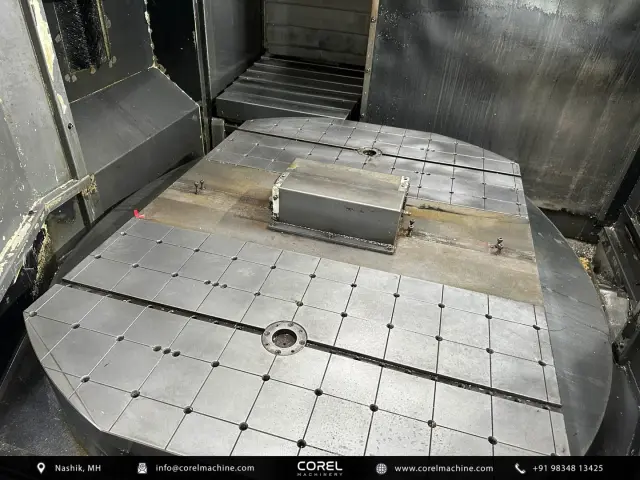

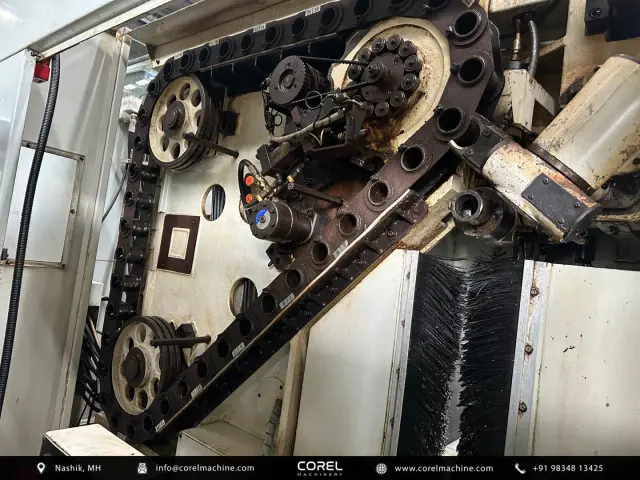

Specification: Travel: X-axis travel (Longitudinal movement of column) :1020 mm. Y-axis travel (Cross movement column) : 610mm. Z-axis (Vertical movement of spindle head) : 560 mm. Distance from table surface to spindle gauge plane : 125-685 mm Table: Table size : 1050mm x 550mm x 2 Table loading capacity : 300 kg x2 Table Surface Configuration : ø 50 center holes & M12 tapped holes pitch 100 mm center 18 H8 groove. Swing table change time : 7 sec Spindle: Max. spindle speed : 10,000 min-1 Type of spindle speed ranges : 1 Max. torque : 192 N.M Bearing inner diameter : 7/24 Taper Spindle bearing inner diameter : 70 mm Feedrate: Rapid traverse rate : X , Y, Z : 32,000 mm/min Feed rate : 1- 20,000 mm/min Jog feed rate : 4,000 mm/min Thrust : 13,500 N ATC: Type of tool shank : ISO 40/BT/40 Tool storage capacity : 40 [60] Max. tool diameter 100 [150]mm. Max. tool length : 300 mm. Max. tool mass : 10 kg. Method of tool selection : Fixed address ,shorter route. Random access. Tool change time (tool to tool ) :2.5 sec. Tool change time ( Chip to Chip ) :6 sec. /8 Motor: Spindle driver motor : (30 min/cont.) 15kw/llkw Servo motor : 3.8 kw Hydraulic pump motor : 3.7 kw Coolant pump motor : 1.4 + 3.0 POWER SOURCE : 45 KVA Tank Capacity: Hydraulic oil tank capacity : 200 L Lubricant tank capacity : 4 L Coolant dirty tank : 200 L Coolant clean tank : 500 L Machine Size: Machine height : 3,080 mm Floor space : 2,660 x 4,670 mm. Mass of machine ; Total/Main Frame : 12,000 kg Cutting Capacity: Drilling in ST60 : ø54 mm Tapping : M36 x 4P Face milling : 576 cc / min Through spindle coolant : 20 BAR Ballscrew diameter: ø45 X 16mm Pitch Accuracy: Positioning accuracy, VDI 3441 / JIS B6338 : 10/5 um Circularity, DBB at 5m/ min : 10 pm
The Quaser MK 60 II S is a used twin pallet, 3-axis Vertical Machining Center featuring a 1050 x 550 mm table, 1020 x 610 x 560 mm travels, BT40 spindle up to 10000 RPM (TBC), Fanuc 18MC control, and a 40-tool arm-type ATC. It is available from Corel Machinery, India, with worldwide shipping.
Frequently Asked Questions
What are the table size and axis travels of the Quaser MK 60 II S?
This Vertical Machining Center features a table size of 1050 x 550 mm. The axis travels (XYZ) measure 1020 x 610 x 560 mm, providing ample workspace for a variety of machining applications.
What type of control system and spindle does this machine use?

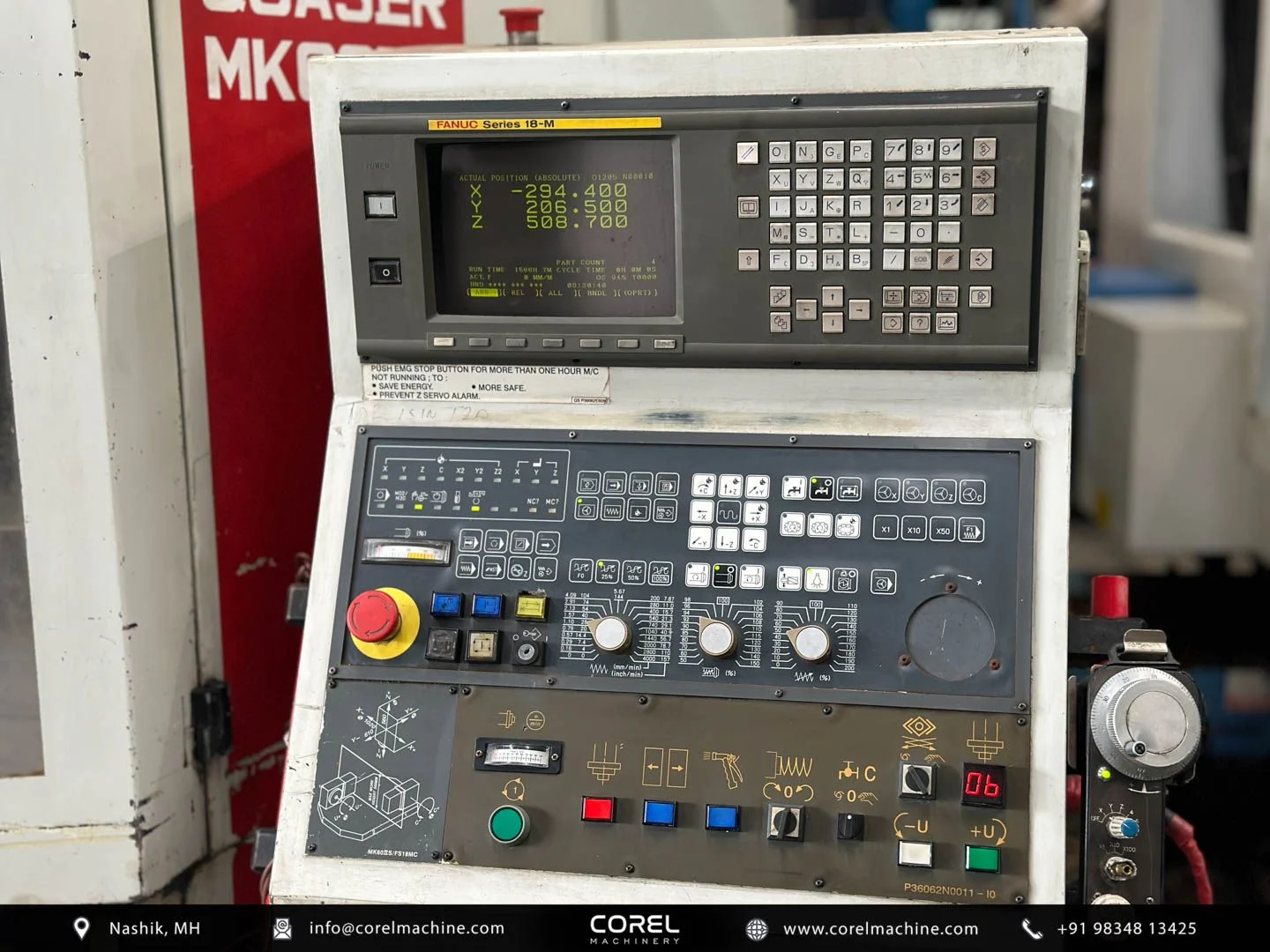

The machine is equipped with a Fanuc 18MC control system utilizing Alpha Drives. It features a BT40 spindle taper with speeds up to 10000 RPM (TBC).
What is the tool changer capacity of the Quaser MK 60 II S?
It features an arm-type Automatic Tool Changer (ATC) with a capacity of 40 tools, allowing for efficient management of multi-step machining operations.
Where is this machine located and can it be shipped internationally?
This used machine is available from Corel Machinery in India. We offer complete inspection details upon request and facilitate worldwide shipping to your manufacturing plant.
Compare this machine with others
Line up to 3 machines side by side to weigh capacity, control and condition on a single sheet before you request a quotation.
