Used SNK RB-2NM DOUBLE COLUMN 5-FACE VMC for sale — Vertical Machining Centers (VMC)

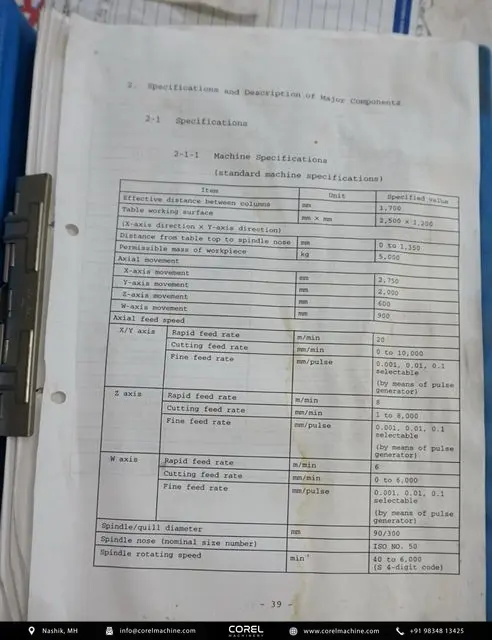

The SNK RB-2NM is a highly rigid, double column Vertical Machining Center (VMC) designed for heavy-duty industrial machining applications. Featuring an effective distance between columns of 1,700 mm, this machine is engineered to accommodate large-format workpieces and structural components. The worktable measures 2,500 x 1,200 mm and supports a maximum table load capacity of 5,000 kg, allowing for the stable setups required when processing heavy dies, molds, and industrial plates. The distance from the spindle nose to the table ranges from a minimum of 0 mm to a maximum of 1,350 mm, offering substantial vertical versatility. In terms of motion and axis capabilities, the SNK RB-2NM offers an X-axis travel of 2,750 mm, Y-axis travel of 2,000 mm, Z-axis travel of 600 mm, and a W-axis travel of 900 mm. The spindle and quill diameter is specified at 90/300 mm. The spindle features an ISO No. 50 taper and operates across a speed range of 40 to 6,000 rpm, ensuring high torque at lower speeds for roughing operations as well as stable performance at higher speeds for fine finishing. The drive systems deliver a rapid traverse rate of 20 m/min, while the X/Y-axis cutting feed rate spans from 0 to 10,000 mm/min with selectable fine feed rates of 0.001, 0.01, and 0.1 mm/pulse. For vertical operations, the Z-axis offers a rapid feed rate of 8 m/min, a cutting feed rate of 1 to 8,000 mm/min, and identical fine feed increments. The W-axis rapid feed rate is rated at 6 m/min with a cutting feed rate of 0 to 6,000 mm/min and selectable fine feed steps. Control of all movements is managed through the integrated Fanuc 18M CNC system. This double column VMC is well-suited for heavy-duty mold bases, aerospace components, and general precision engineering fields where stability and scale are paramount. The machine is imported, inspected, and available through Corel Machinery, India. We facilitate secure loading, inspection support, and worldwide shipping to ensure a seamless procurement process.
