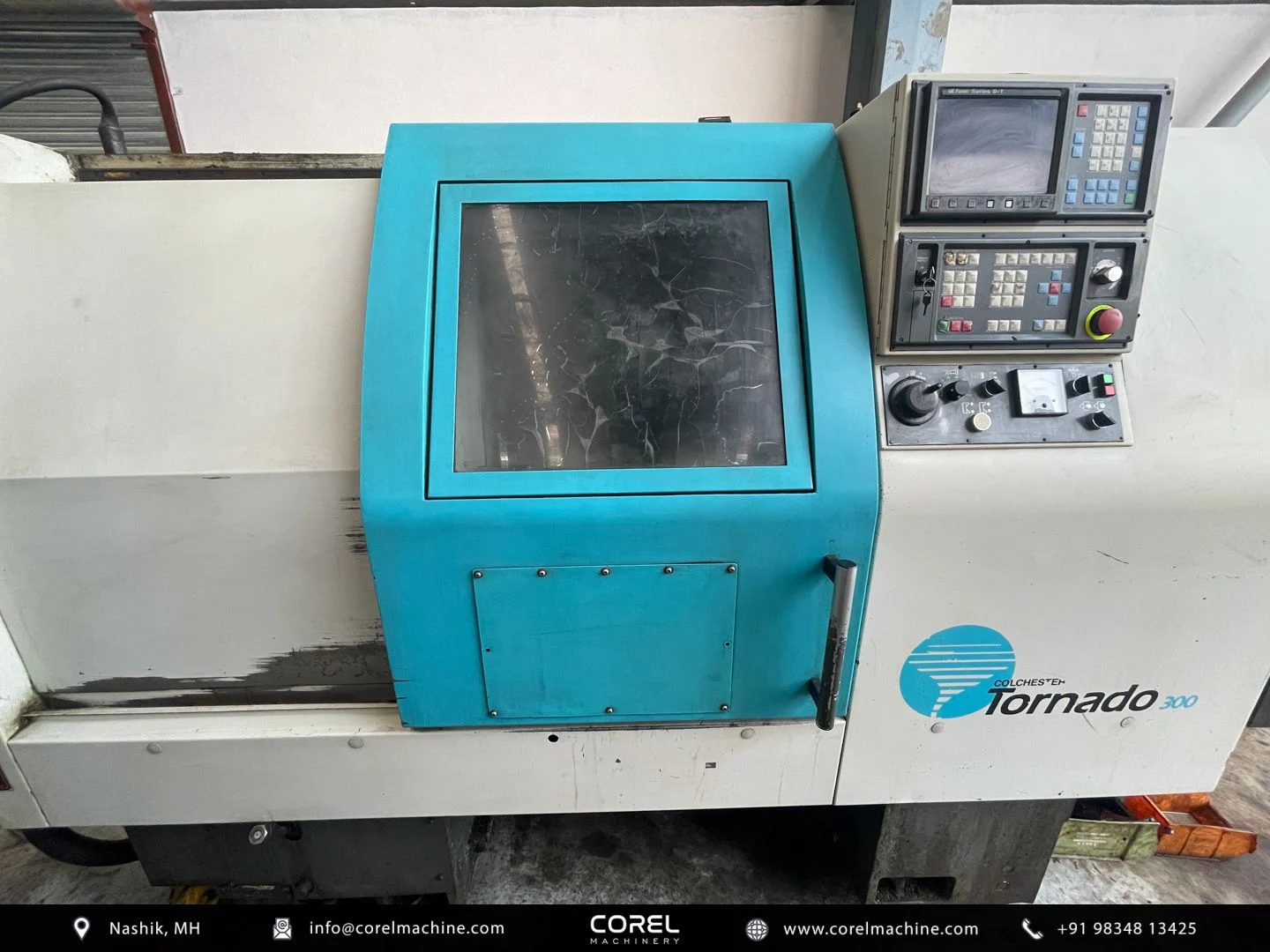

Used COLCHESTER TORNADO 300 CNC LATHE — sold (CNC Turning Centers)

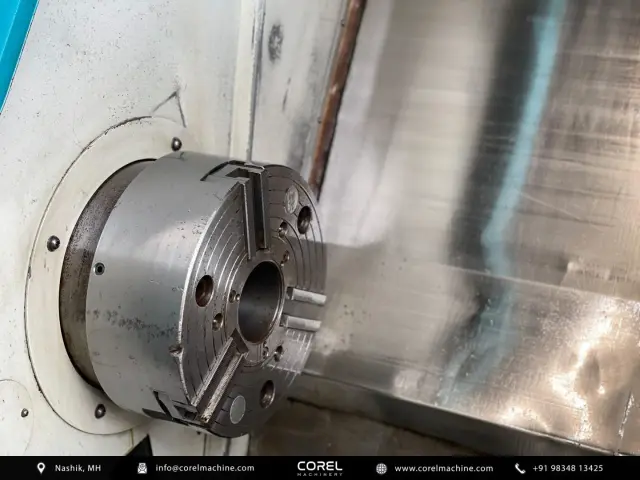

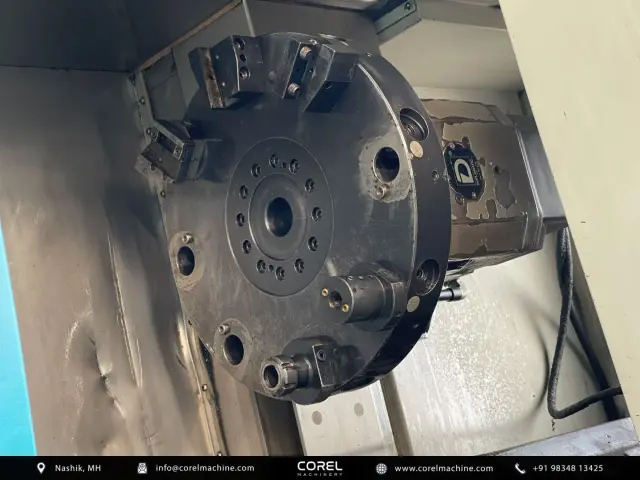

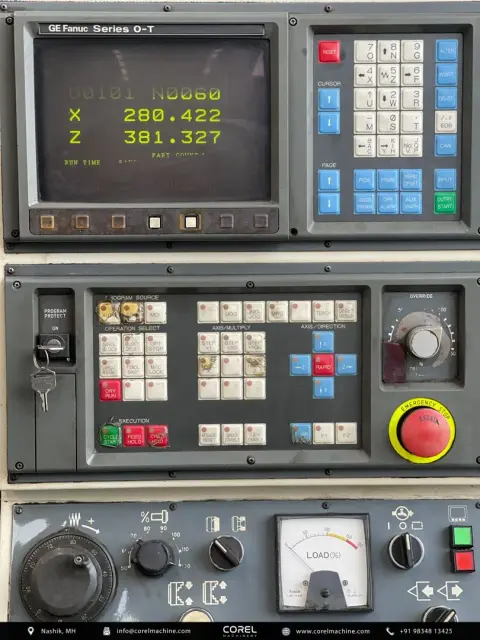

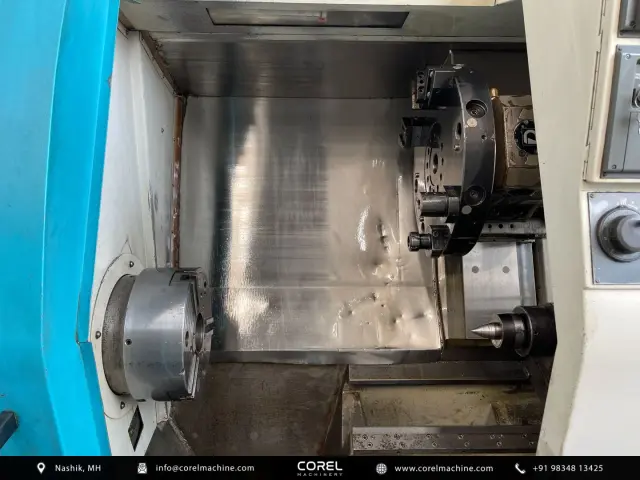

Corel Machinery offers the Colchester TORNADO 300 CNC Turning Center, a slant bed turning machine designed for industrial metal cutting operations. This machine operates via a Fanuc OT control system equipped with Alpha Drives. Built for precision and rigidity, the TORNADO 300 features a hybrid guideway system combining Box guideways on the X-axis with Linear Motion (LM) guideways on the Z-axis, supporting an overall machine weight of 3.5 tonnes. In terms of working dimensions, the Colchester TORNADO 300 features a maximum swing of 530 mm, a maximum turning diameter of 300 mm, and a maximum turning length of 500 mm. The axis travels are rated at 240 mm along the X-axis and 500 mm along the Z-axis. The spindle is driven by an 18 / 22 kW motor, offering a maximum rotation speed of 3000 RPM. The spindle utilizes an A2-8 spindle nose with a 91 mm spindle bore and comes equipped with a 300 mm chuck. For tooling and work holding, the machine is fitted with an 8-station VDI 40 turret to handle turning operations, alongside an integrated tailstock for supporting longer workpieces. The combination of a 300 mm chuck capacity, 91 mm spindle bore, 3000 RPM top speed, and 500 mm maximum turning length makes this unit well-suited for medium to heavy-duty component manufacturing, shaft turning, and general precision engineering batch production. This used Colchester TORNADO 300 CNC Turning Center has been imported and inspected, and is available for purchase from Corel Machinery in India. We provide full export assistance and worldwide shipping for international buyers. Contact Corel Machinery today for pricing, inspection details, and technical inquiries.
