Used DAEWOO DOOSAN PUMA 12L-C CNC Turning Center for sale — CNC Turning Centers

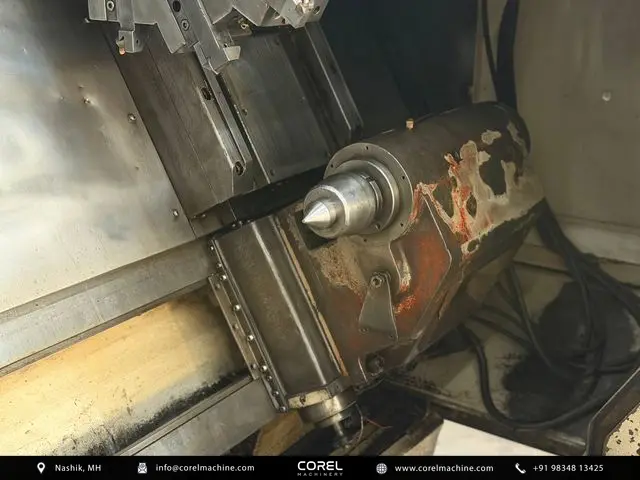

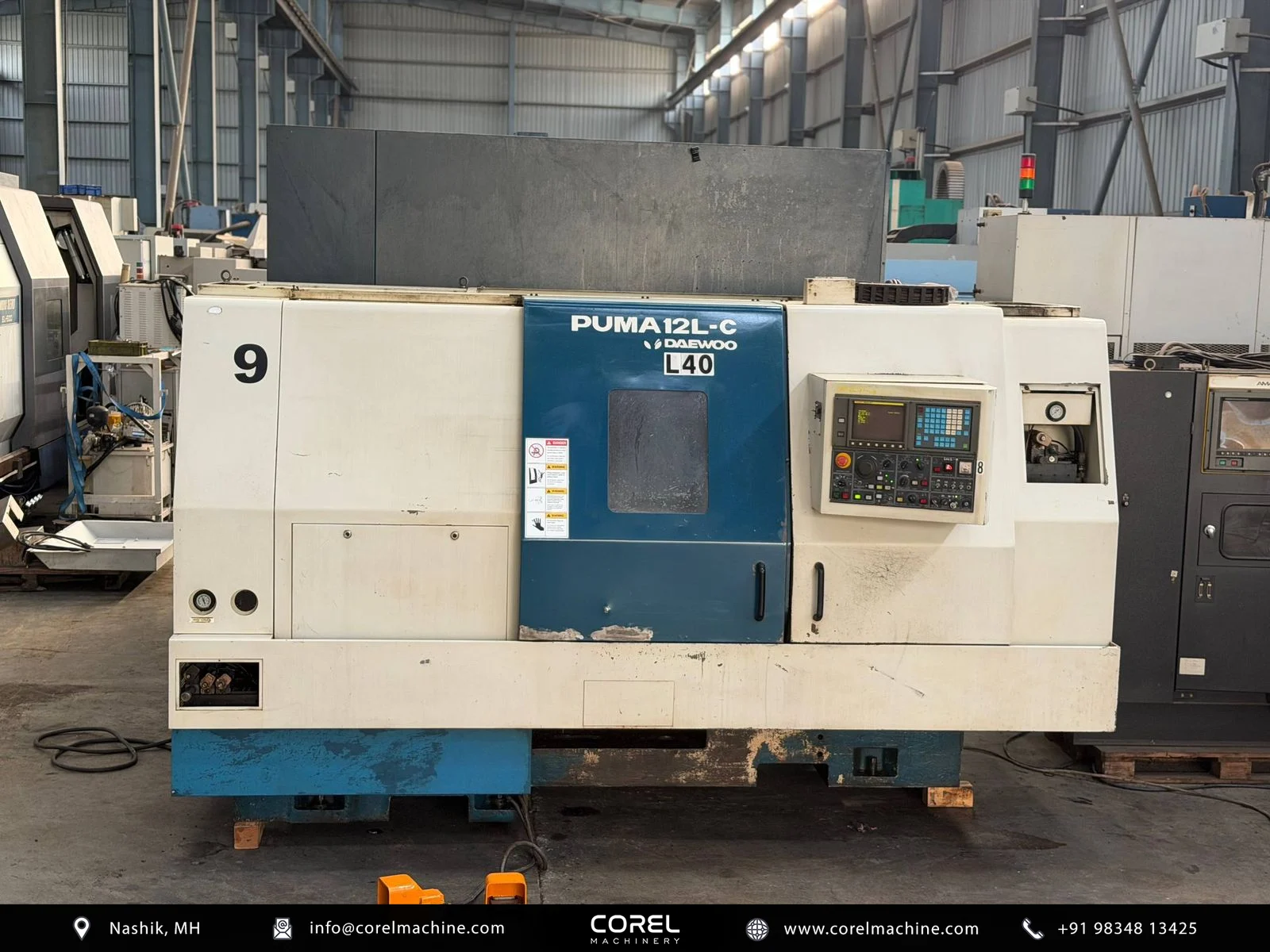

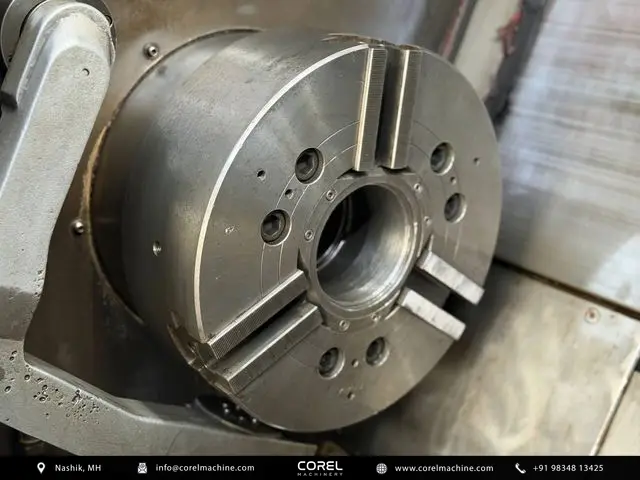

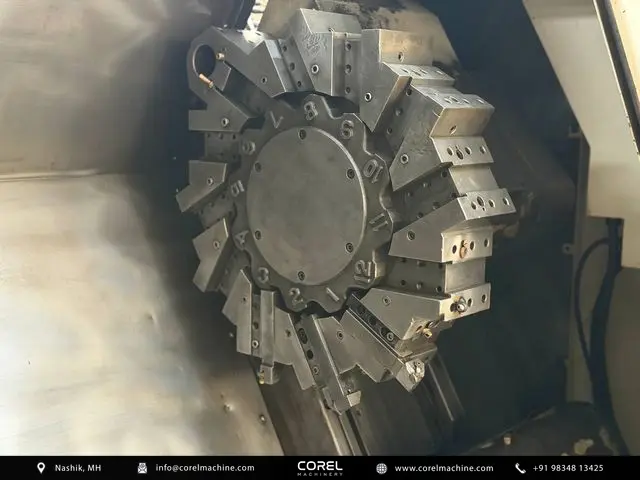

The DAEWOO DOOSAN PUMA 12L-C is a heavy-duty slant bed CNC Turning Center designed for large-diameter shaft and chucking applications. Engineered for substantial material removal, this machine features a 569 mm swing over bed, a maximum turning diameter of 483 mm, and a maximum turning length of 1,021 mm, with a distance between centers of 1,067 mm. Powered by a 35 HP spindle motor, the headstock is equipped with an A2-11 spindle nose, a large 132 mm spindle bore, and a bar capacity of 117 mm, offering a spindle speed range of 20 to 2,000 RPM. This substantial spindle bore capability allows for efficient machining of heavy tubing and large bar stock. Axis travels on the PUMA 12L-C include an X-axis travel of 259 mm and a Z-axis travel of 1,049 mm. Rapid traverse rates reach 12,192 mm/min on the X axis and 16,002 mm/min on the Z axis, optimizing non-cut time during production runs. Tooling is managed by a 12-station turret delivering a fast turret index time of 1 second. For long workpiece support, the machine incorporates a tailstock with an MT-5 taper, a quill diameter of 110 mm, and a quill travel of 102 mm. These technical parameters make the PUMA 12L-C well-suited for heavy industrial manufacturing, oil and gas component machining, large valve production, and general job-shop turning of long shafts and heavy forged parts. Imported, thoroughly inspected, and available from Corel Machinery in India, this pre-owned machine is ready for domestic deployment or worldwide shipping.
