Used DAEWOO DOOSAN PUMA 230SB CNC LATHE for sale — CNC Turning Centers

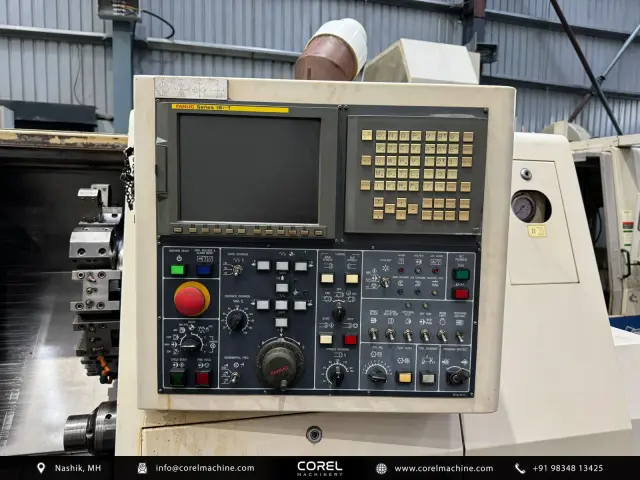

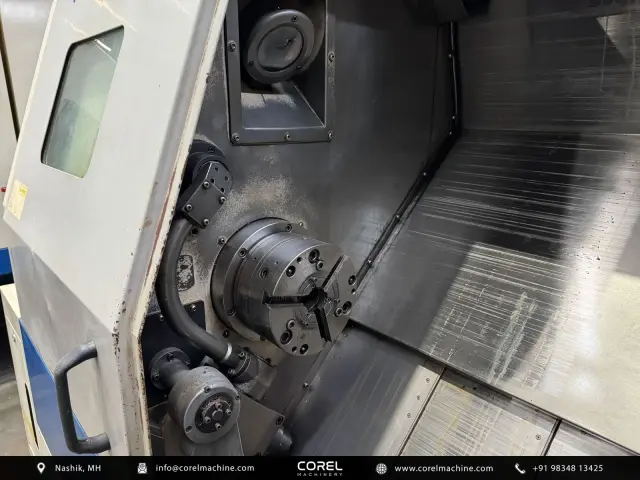

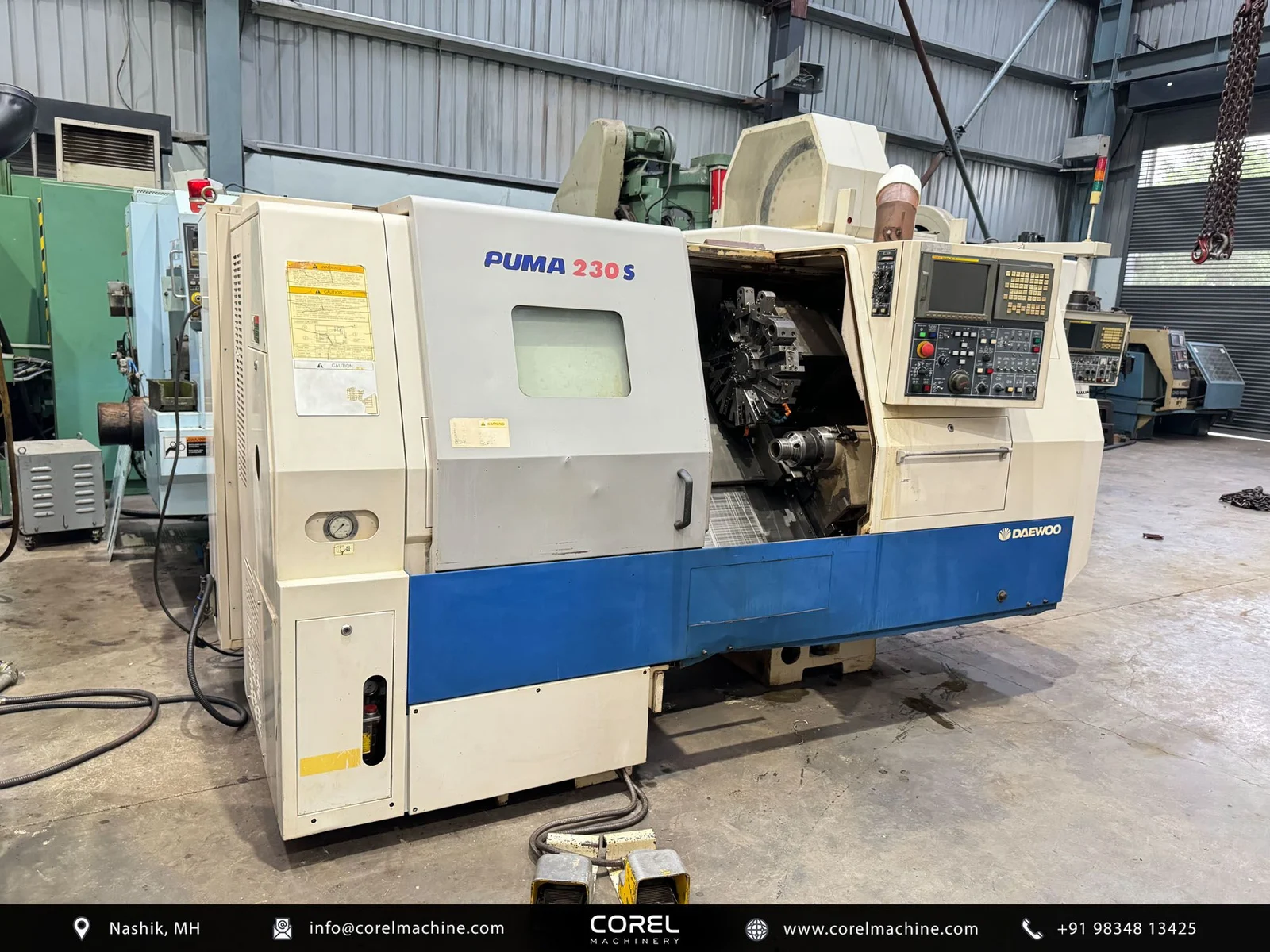

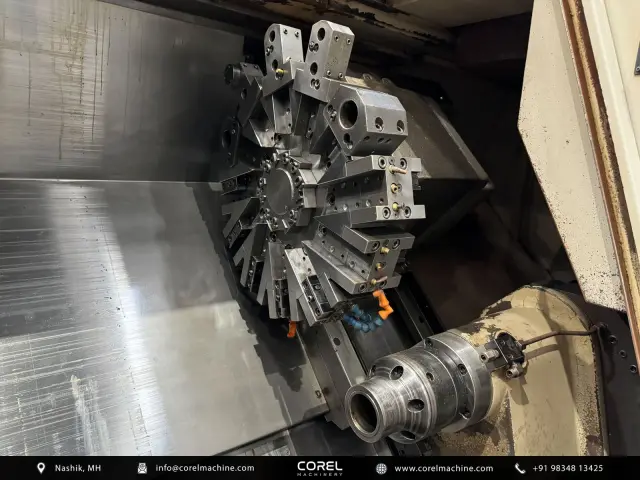

The Doosan PUMA 230SB is a high-performance twin spindle slant bed CNC turning center designed for precision metal cutting operations. Engineered with robust box guideways, this machine offers exceptional rigidity and damping characteristics during heavy-duty turning applications. Powered by a Fanuc 18iT control system, it provides reliable path control, efficient program execution, and user-friendly operation for complex machining sequences. In terms of capacity, the PUMA 230SB features a maximum swing over bed of 510 mm, a maximum turning diameter of 350 mm, and a maximum turning length of 548 mm. Axis travel distances are rated at 220 mm along the X-axis and 580 mm along the Z-axis. The primary turning zone is powered by a 15 kW main spindle motor delivering speeds up to 4500 RPM. The main spindle features an A2-6 spindle nose and a 76 mm spindle bore, accommodating a wide range of bar stock and chucked workpieces. To enable complete secondary operations and eliminate manual re-fixturing, the machine is equipped with a sub-spindle running at speeds up to 6000 RPM. The sub-spindle is driven by a 5.5 kW motor and features a 45 mm spindle bore. Tooling indexation is handled by a 12-station turret, allowing for rapid tool changes and extensive tool setups required for multi-process turning. The combination of a main spindle, sub-spindle, and a 12-position turret makes this turning center ideally suited for producing automotive components, hydraulic fittings, aerospace fasteners, and general precision engineering parts requiring front-and-back machining in a single cycle. This used Doosan PUMA 230SB CNC turning center is imported, thoroughly inspected, and available directly from Corel Machinery in India. We offer full support and worldwide shipping options to meet your plant production requirements.
