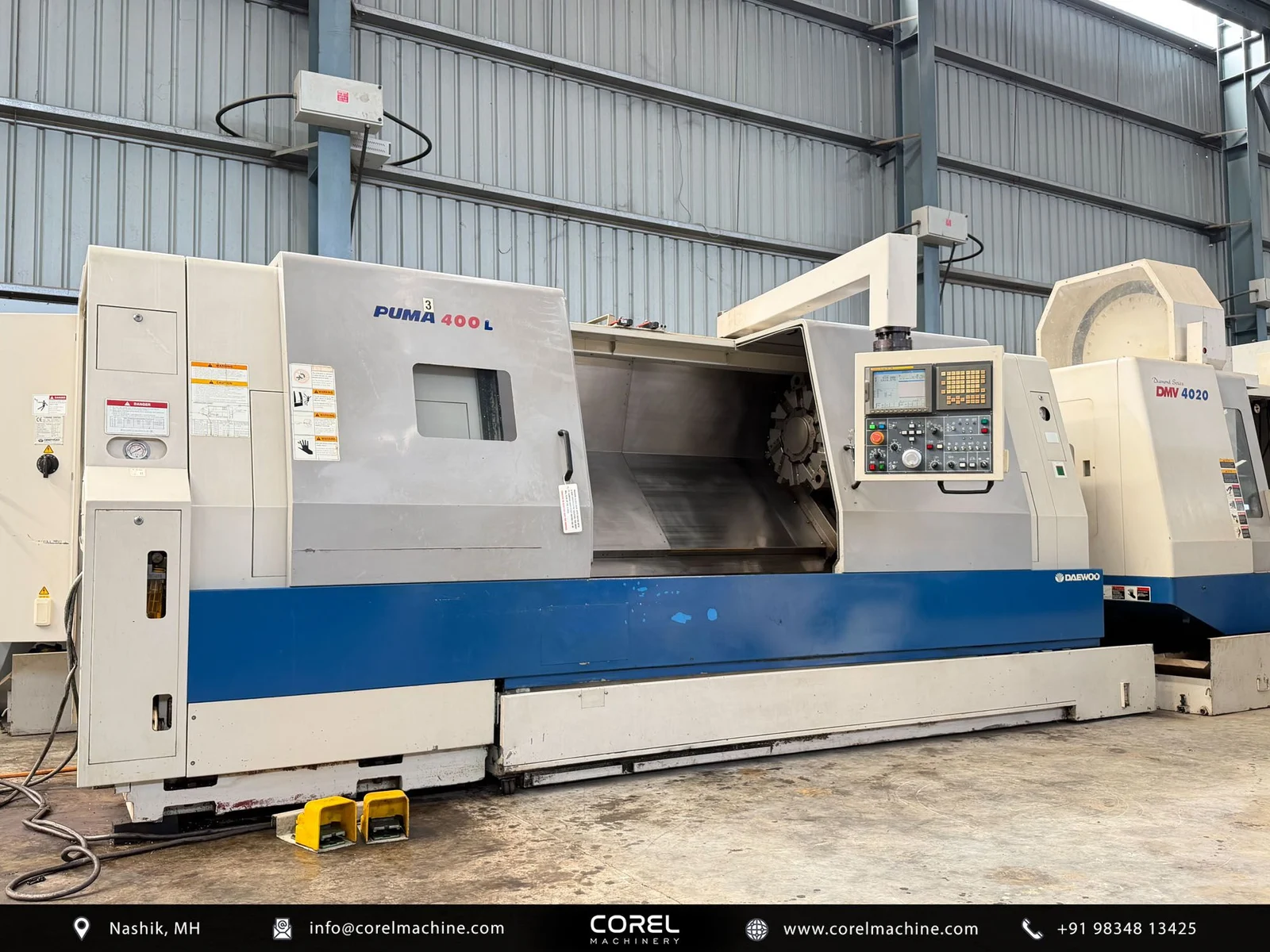

Used DAEWOO DOOSAN PUMA 400LB CNC LATHE for sale — CNC Turning Centers

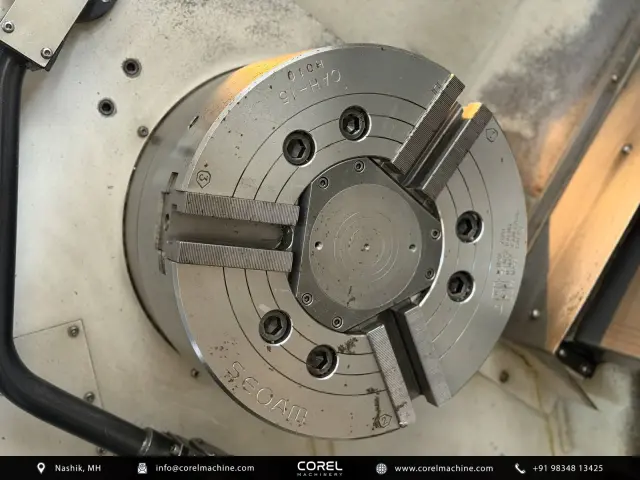

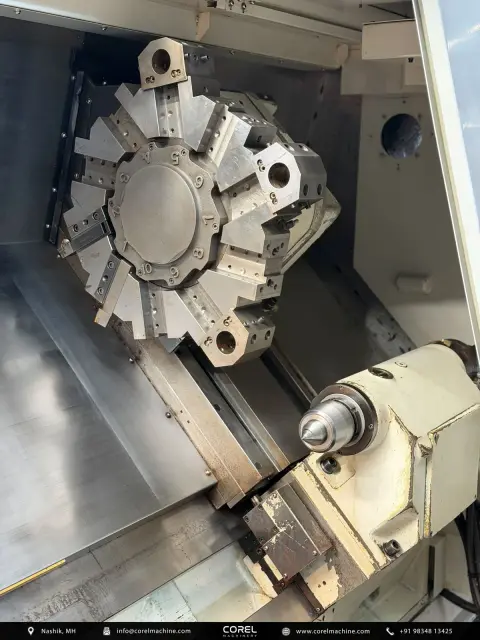

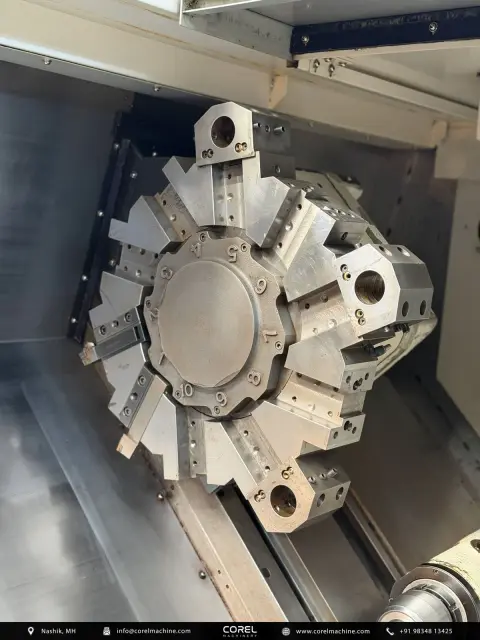

Corel Machinery offers the used Doosan PUMA 400LB, a heavy-duty CNC Turning Center with a slant bed design engineered for large-diameter and long-shaft turning applications. Built with rigid box guideways, this machine provides superior damping and stability during heavy cutting operations. The turning center features a maximum swing over bed of 700 mm, a maximum turning diameter of 550 mm, and an extended maximum turning length of 2100 mm. Axis travels are rated at 362 mm on the X-axis and 2155 mm on the Z-axis, allowing ample clearance for large workpieces. At the core of the Doosan PUMA 400LB is a gear-driven spindle mounted on an A2-11 spindle nose, delivering high torque across its speed range up to a maximum rotation speed of 2000 RPM. The spindle features a large 132 mm spindle bore and supports a bar capacity of 117 mm. The machine comes equipped with a 15-inch chuck, making it well-suited for heavy chucking and shaft processing tasks. Tooling management is handled by a 10-station turret, offering reliable tool indexing for complex turning profiles. To support long workpiece machining, the unit includes an integrated tailstock with an MT6 taper, a quill diameter of 120 mm, and a quill travel of 120 mm. Control over all operations is managed by the proven Fanuc 21i TB CNC control system, ensuring precise execution and familiar interface operations for machinists. Given its dimensions and capacity, this machine is well-suited for heavy engineering sectors, oil and gas component manufacturing, energy equipment production, and general large-shaft machining industries. This imported Doosan PUMA 400LB CNC turning center has been thoroughly inspected and is available directly from Corel Machinery in India, with worldwide shipping options available.
