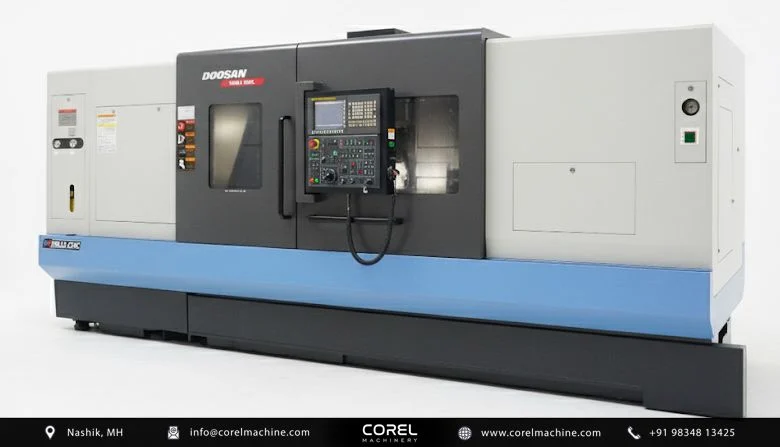

Used DOOSAN PUMA 480-L CNC TURNING CENTER for sale — CNC Turning Centers

Catalogue: https://app.box.com/s/d3r73ul37yk4p1rrpcvd58xlt0mg0hyx DOOSAN PUMA 480 CNC LATHE Capacity • Swing over bed: 900 mm (35.4 in) • Swing over saddle: 720 mm (28.3 in) • Recommended turning diameter: 380 mm (15.0 in) • Max. turning diameter: 650 mm (25.6 in) • Max. turning length: 2042 mm • Bar working diameter: 165.5 mm (6.5 in) Travels • X-axis travel distance: 362 mm (14.3 in) • Z-axis travel distance: 2155 mm Feedrates • Rapid Traverse Rate (X-axis): 16 m/min (629.9 in/min) • Rapid Traverse Rate (Z-axis): 20 m/min (787.4 in/min) Main Spindle • Max. spindle speed: 1500 r/min • Spindle nose: ASA A1-15 • Spindle bearing diameter (Front): 240 mm (9.4 in) • Spindle through hole: 181 mm (7.1 in) Tool Post • No. of tool stations: 10 • OD tool height: 32 × 32 mm (1.3 × 1.3 in) • Boring bar diameter: Ø 80 mm (3.1 in) • Indexing time (1st swivel): 0.25 s Tail Stock • Quill diameter: 120 mm (4.7 in) • Quill bore taper: MT#6 • Quill travel: 120 mm (4.7 in) Motors • Main spindle motor (30 min): 45 kW (60.3 Hp) • Servo motor (X-axis): 4.0 kW (5.4 Hp) • Servo motor (Z-axis): 6.0 kW (8.0 Hp) Power Source • Electric power supply (rated capacity): 53.1 kVA Machine Dimensions • Height: 2197 mm (86.5 in) • Length: 4613 mm (181.6 in) • Width: 2050 mm (80.7 in) • Weight: 10100 kg (22266.4 lb)
