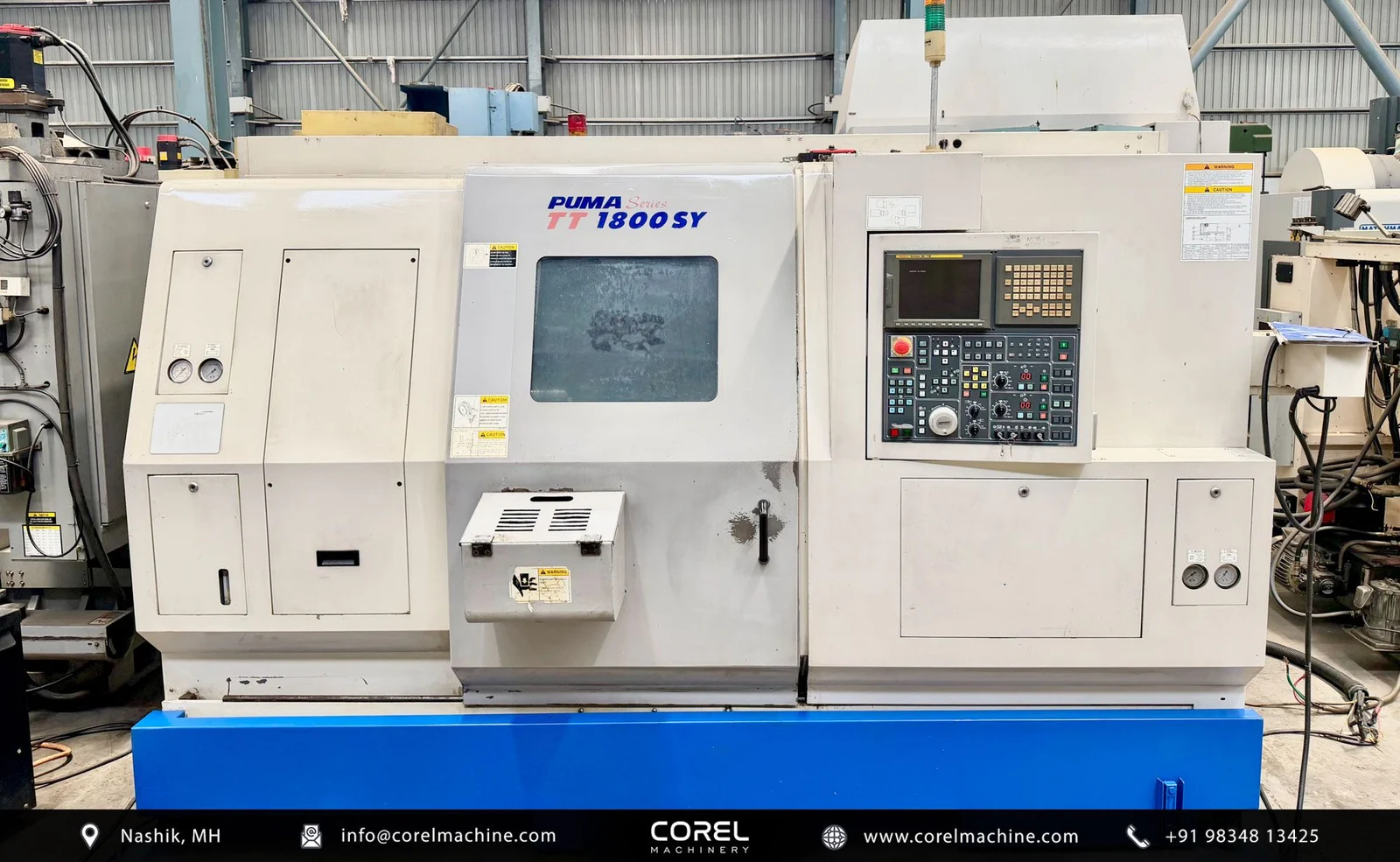

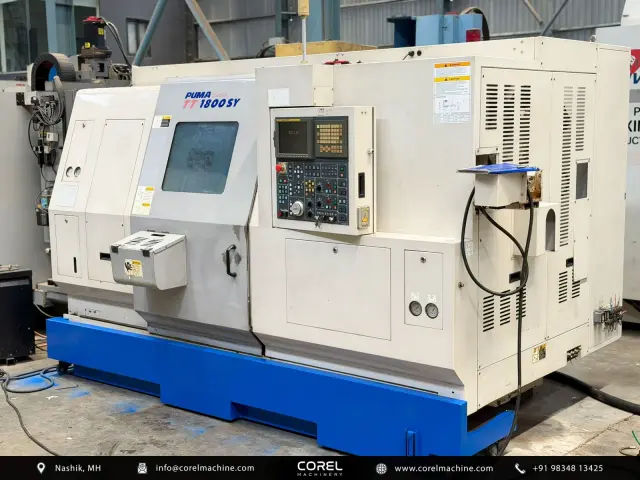

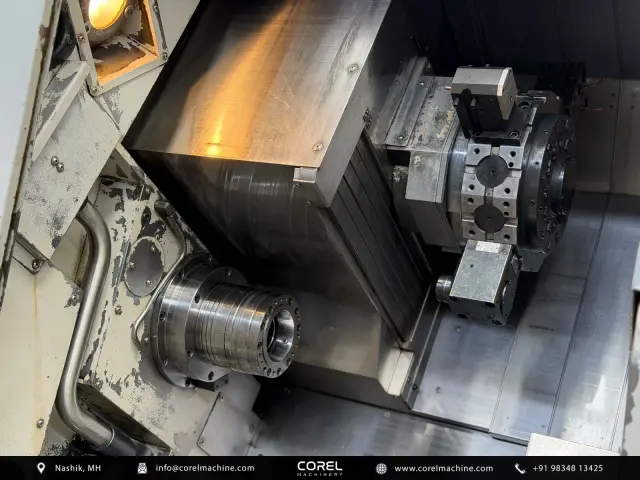

Used DAEWOO DOOSAN PUMA TT1800SY CNC TURN MILL for sale — CNC Turning Centers

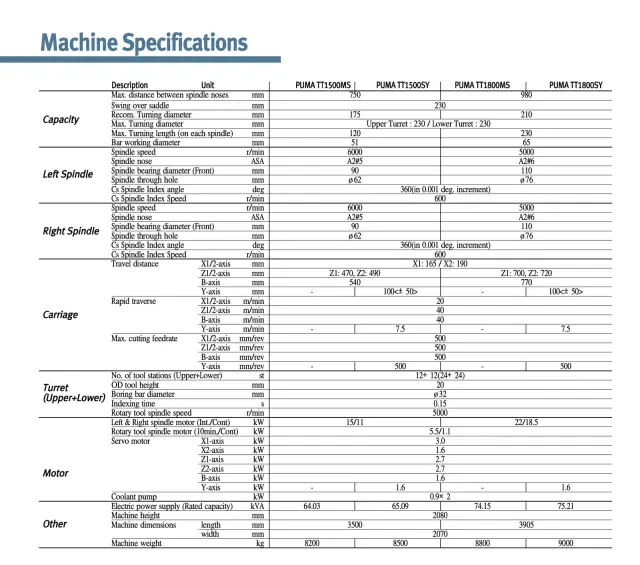

Corel Machinery offers the DAEWOO DOOSAN PUMA TT1800SY, a high-performance CNC Turning Center featuring a twin spindle, twin turret, Y-axis, multi-axis, and slant bed design. Engineered for complex and high-precision machining, this machine delivers robust operational capabilities backed by verified technical specifications. The machine features a maximum distance between spindle noses of 980 mm, a swing over saddle of 230 mm, a recommended turning diameter of 210 mm, and a maximum turning diameter of 230 mm for both the upper and lower turrets. The maximum turning length per spindle is 230 mm, with a bar capacity of 65 mm and a maximum spindle-to-spindle transfer distance of 980 mm. The main spindle provides a maximum spindle speed of 5,000 rpm, utilizing an A2-6 spindle nose, a front spindle bearing diameter of 110 mm, and a spindle bore of 76 mm. Both spindles are powered by a main spindle motor rated at 22/18.5 kW for 30 minutes and continuous operation respectively. Additionally, the C-axis provides 360° indexing in 0.001° increments at an indexing speed of 600 rpm. Axis travel capabilities include an X1 travel of 165 mm, X2 travel of 190 mm, Z1 travel of 700 mm, and Z2 travel of 720 mm. Rapid traverse rates are specified at 40 m/min for the B-axis, 7.5 m/min for the Y-axis, 20 m/min for X1 and X2, and 40 m/min for Z1 and Z2. Servo motor specifications comprise 3.0 kW for X1, 1.6 kW for X2, 2.7 kW for Z1, 2.7 kW for Z2, 1.6 kW for the B-axis, and 1.6 kW for the Y-axis. Tooling configuration consists of an upper turret with 12 stations and a lower turret with 12 stations, providing a total of 24 + 24 tool positions. It accommodates an OD tool size of 20 mm and a boring bar capacity of 32 mm, with a turret index time of 0.15 seconds. Live tooling is supported by a live tool speed of 5,000 rpm and a live tool motor rated at 5.5/1.1 kW. Coolant is managed by dual 0.9 kW coolant pumps, and the system requires an electrical capacity of 75.21 kVA. Physical dimensions of the machine are 3905 mm in length, 2070 mm in width, and 2080 mm in height, with a total machine weight of 9000 kg. Further technical documentation can be reviewed via the official catalogue at https://app.box.com/s/n3jnn7637tkm7d9oh4h2stotc93wcc14. This used DAEWOO DOOSAN PUMA TT1800SY CNC Turning Center is imported, inspected, and made available by Corel Machinery, India, with worldwide shipping options for manufacturing facilities looking to expand their multi-axis turning capabilities.
