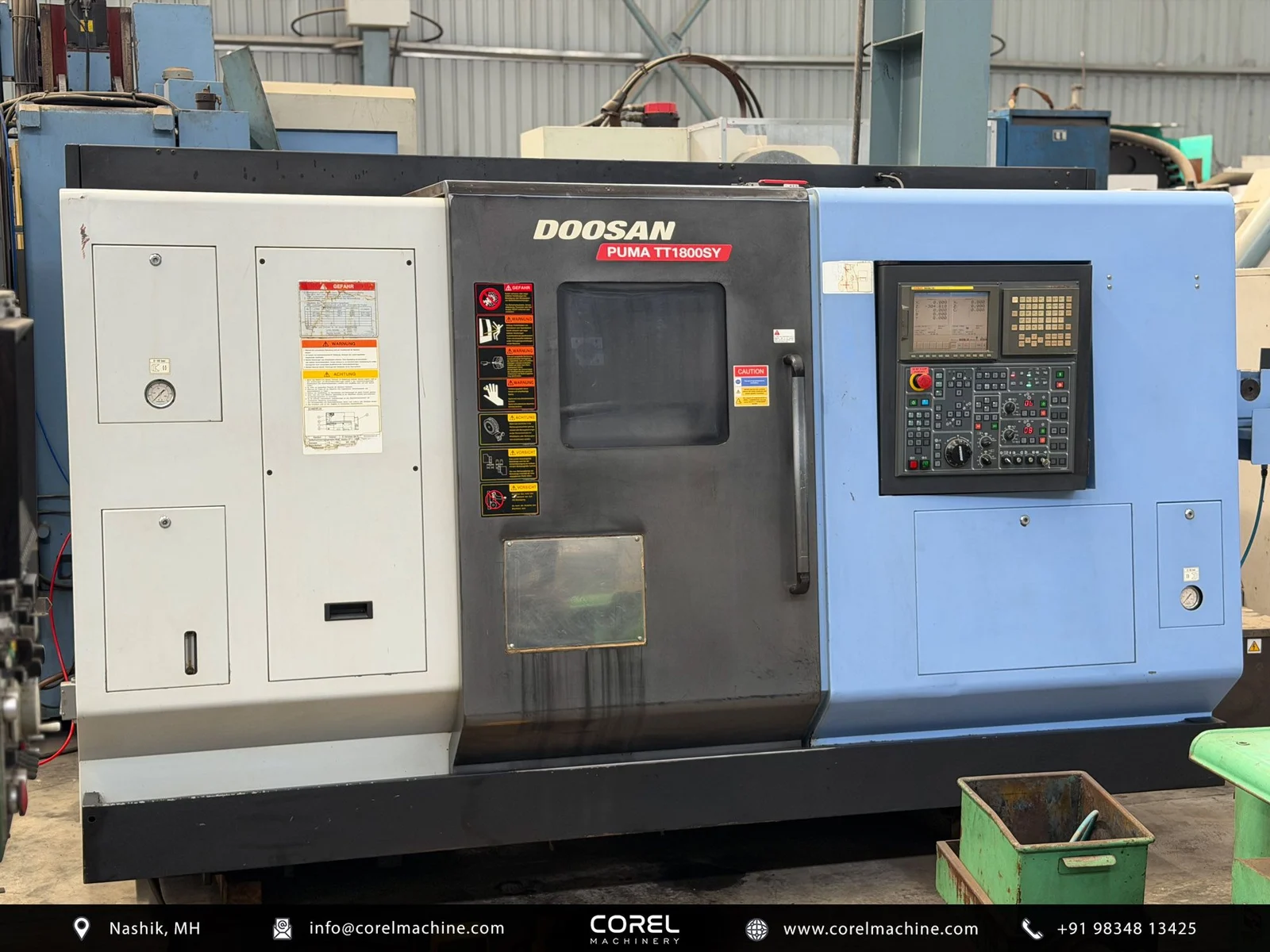

Used DAEWOO DOOSAN PUMA TT1800SY CNC TURN MILL — sold (CNC Turning Centers)

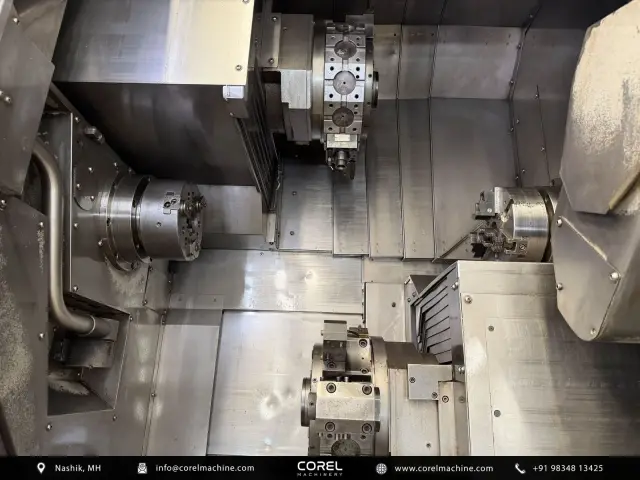

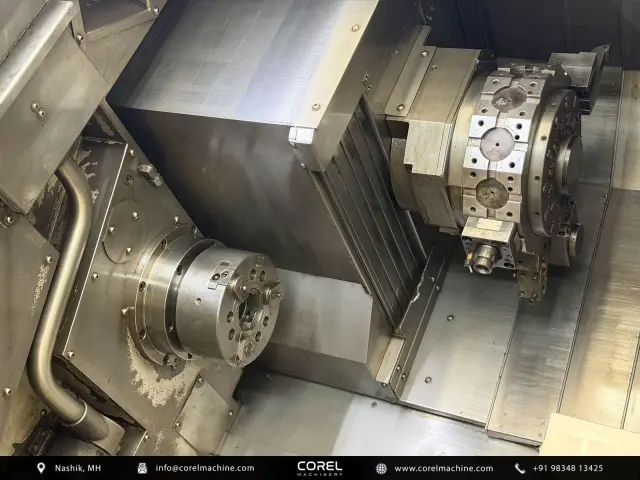

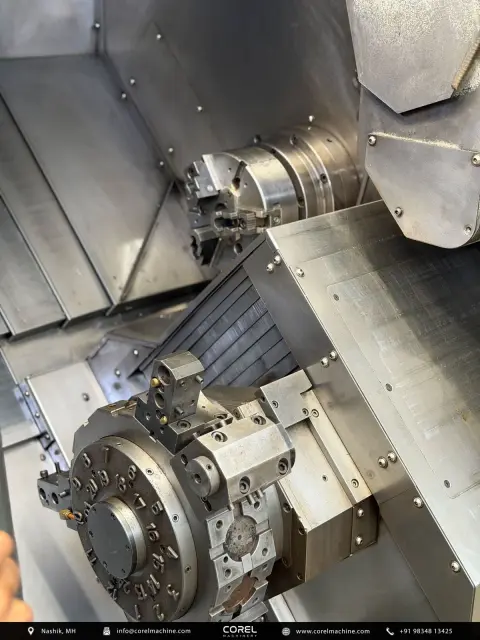

Corel Machinery offers the DAEWOO DOOSAN PUMA TT1800SY, a high-performance CNC Turning Center featuring a twin spindle, twin turret, Y-axis, multi-axis, and slant bed design. Engineered for precision machining, this machine delivers robust capabilities backed by verified technical specifications designed for demanding industrial manufacturing environments. Capacity and Dimensions: The machine provides a maximum distance between spindle noses of 980 mm and a maximum spindle-to-spindle transfer distance of 980 mm. It features a swing over saddle of 230 mm, a recommended turning diameter of 210 mm, and a maximum turning diameter of 230 mm for both the upper and lower turrets. The maximum turning length per spindle is 230 mm, with a bar capacity of 65 mm. Spindle and Axis Performance: Equipped with an A2-6 spindle nose, a front spindle bearing diameter of 110 mm, and a spindle bore of 76 mm, the main spindle achieves a maximum speed of 5,000 rpm. The C-axis provides 360° indexing in 0.001° increments with an indexing speed of 600 rpm. Axis travels are specified at X1: 165 mm, X2: 190 mm, Z1: 700 mm, and Z2: 720 mm. Rapid traverse rates are rated at 40 m/min for the B-axis and Z1/Z2 axes, 7.5 m/min for the Y-axis, and 20 m/min for the X1/X2 axes. Tooling and Turret System: The turning center incorporates upper and lower turrets with 12 stations each, providing total tool positions of 24 + 24. It accommodates an OD tool size of 20 mm and a boring bar capacity of 32 mm, featuring a rapid index time of 0.15 seconds. Live tooling operates at a maximum speed of 5,000 rpm. Power and Utilities: Drive power is delivered by a main spindle motor (each spindle) rated at 22/18.5 kW for 30 min/continuous operation, alongside a live tool motor of 5.5/1.1 kW. Servo motors include X1 at 3.0 kW, X2 at 1.6 kW, Z1 at 2.7 kW, Z2 at 2.7 kW, B-axis at 1.6 kW, and Y-axis at 1.6 kW. Coolant is supplied by dual 0.9 kW pumps, with a total required electrical capacity of 75.21 kVA. Physical Specifications: The machine measures 3905 mm in length, 2070 mm in width, and 2080 mm in height, with an approximate machine weight of 9000 kg. This imported used CNC turning center has been thoroughly inspected and is available directly from Corel Machinery, India, with worldwide shipping options to support global production engineering requirements.
