Used DUGARD TAKANG TNC-VS35 CNC LATHE — sold (CNC Turning Centers)

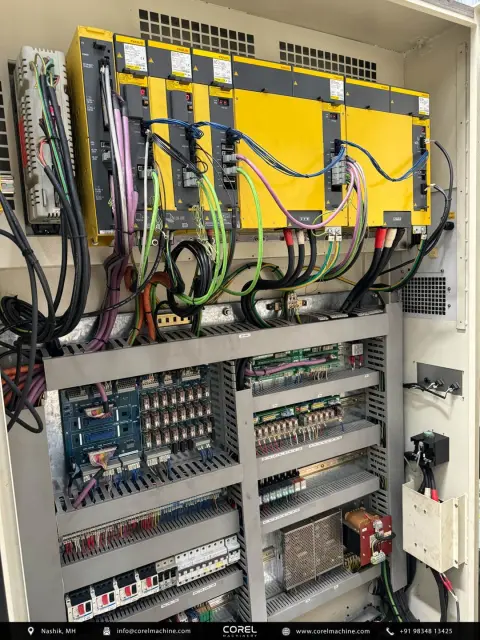

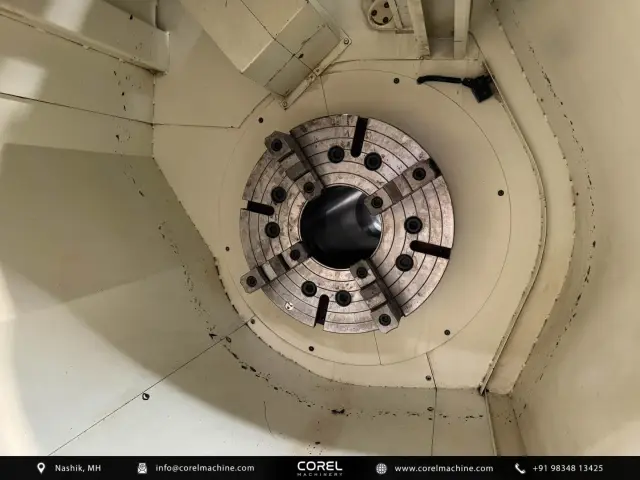

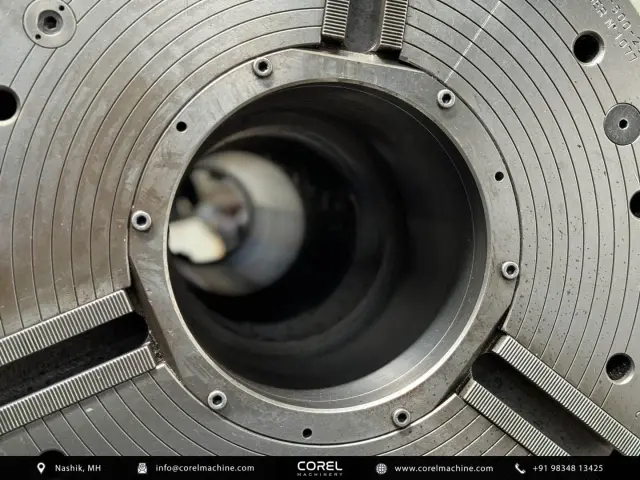

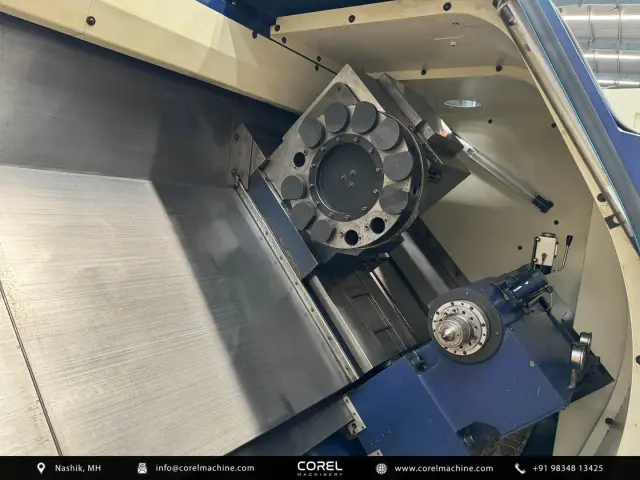

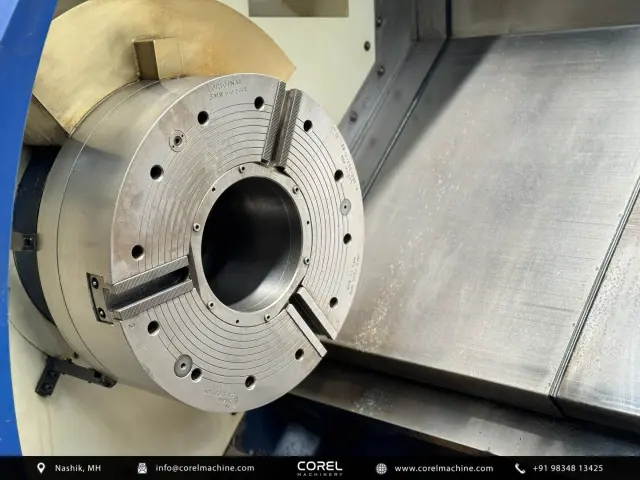

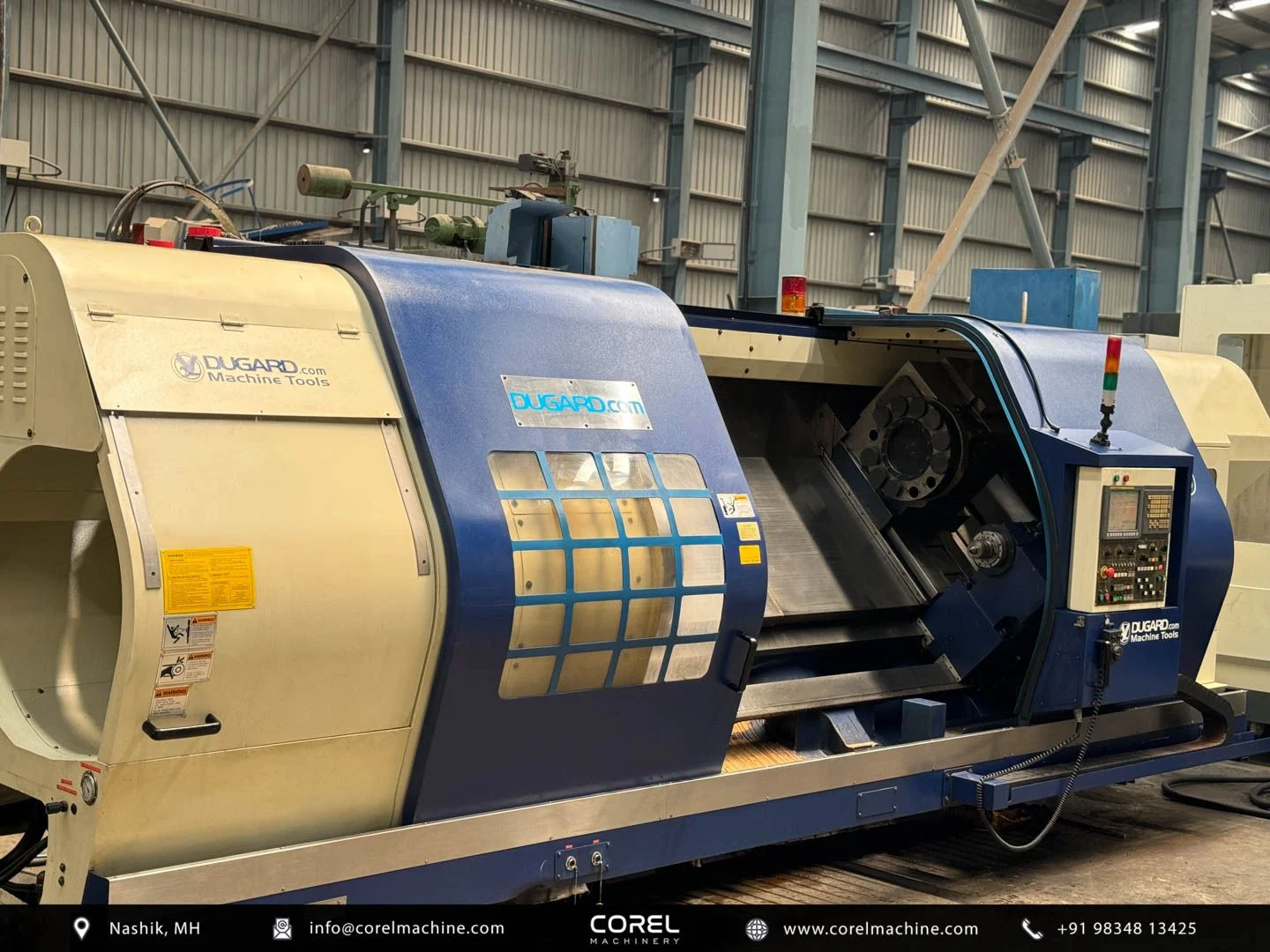

The Dugard TNC-VS35 is a heavy-duty CNC Turning Center featuring a rigid box guideway design tailored for demanding machining operations. Built for precision and heavy material removal, this slant bed lathe offers a maximum turning length of 2250 mm and a distance between centers of 2250 mm, accommodating long workpieces with stability. It provides a generous swing of 890 mm over the bed, making it well-suited for large-diameter components required in heavy engineering, oil and gas, infrastructure, and large-scale manufacturing sectors. The machine is equipped with a powerful 600 mm power chuck and features an A2-15 spindle nose with a large 230 mm spindle bore, facilitating the processing of heavy tubular and shaft components. Driven by a robust 22 / 37 kW spindle motor paired with a 4-step gearbox, the spindle delivers a maximum rotation speed ranging from 4 to 1000 RPM, ensuring high torque delivery across heavy cutting applications. Tooling flexibility is managed by a 12-station turret, allowing efficient multi-tool operations for complex part geometries. Operation and programming are controlled via the reliable Fanuc Oi-TD control system, providing industry-standard functionality for production environments. For stability during turning operations on long components, the machine includes a functional tailstock featuring an MT 6 tailstock center, a 235 mm tailstock quill diameter, and 200 mm of tailstock quill travel. This pre-owned Dugard TNC-VS35 CNC Turning Center is thoroughly inspected and sourced for industrial deployment. Available through Corel Machinery in India, this machine represents a robust production asset for facilities seeking high-capacity turning capabilities. We offer professional handling, inspection options, and worldwide shipping to support global manufacturing requirements. Contact Corel Machinery today to request a detailed quotation and discuss availability.
