Used HARDINGE CONQUEST T51 CNC TURN MILL CENTER for sale — CNC Turning Centers

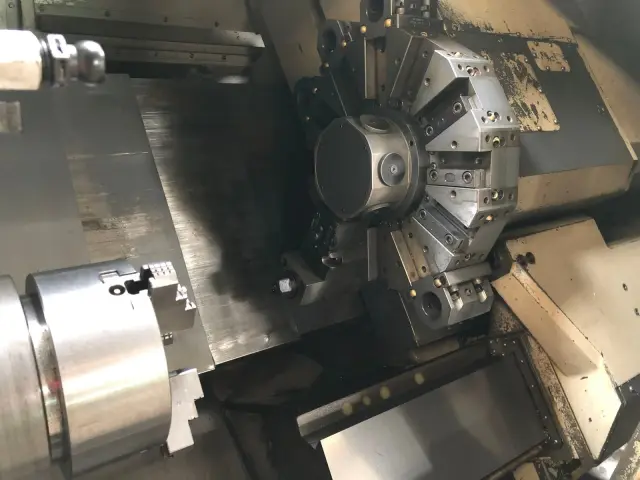

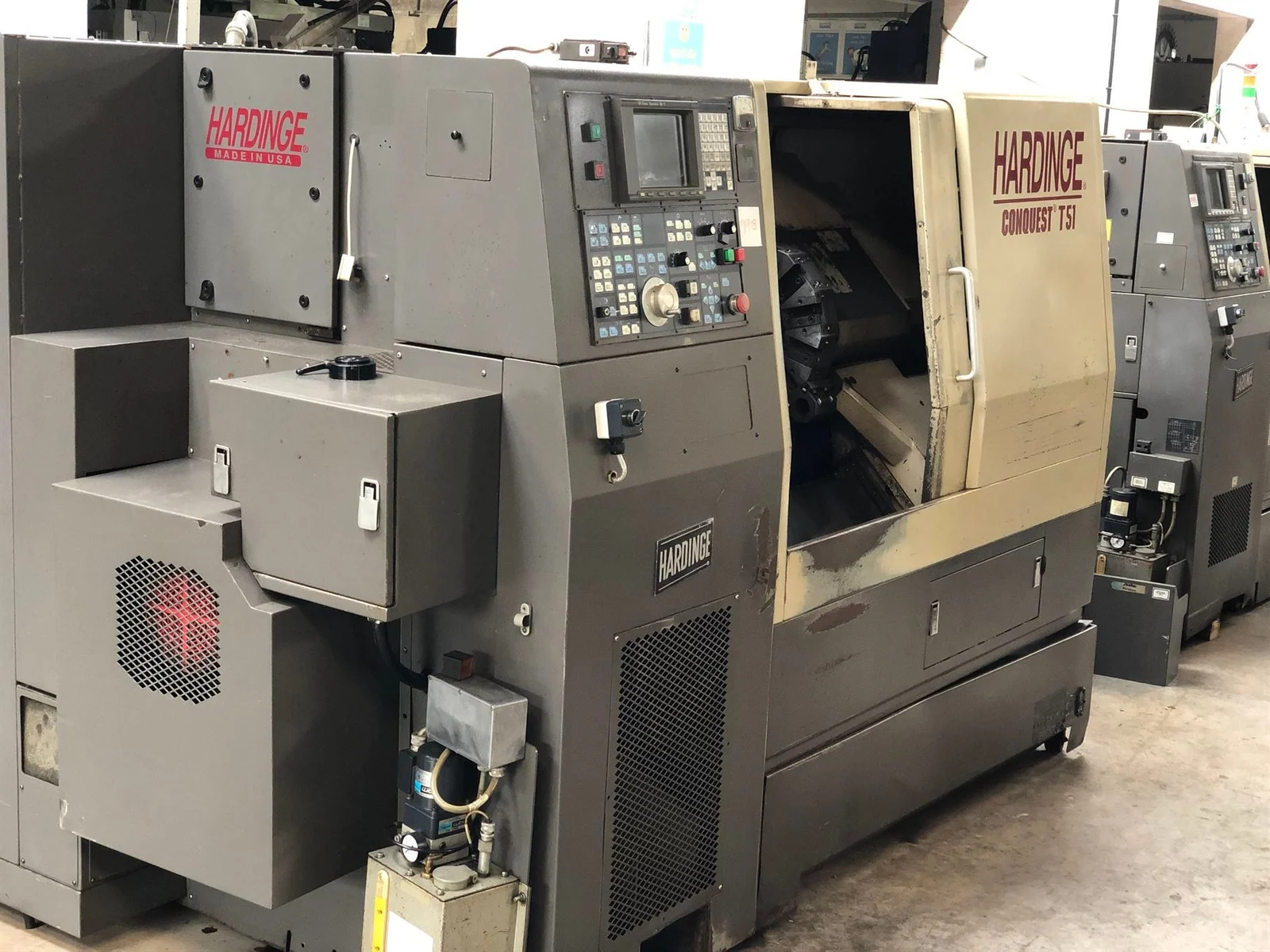

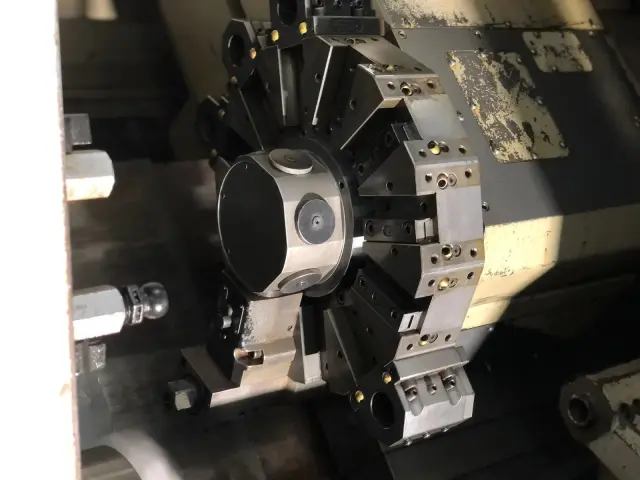

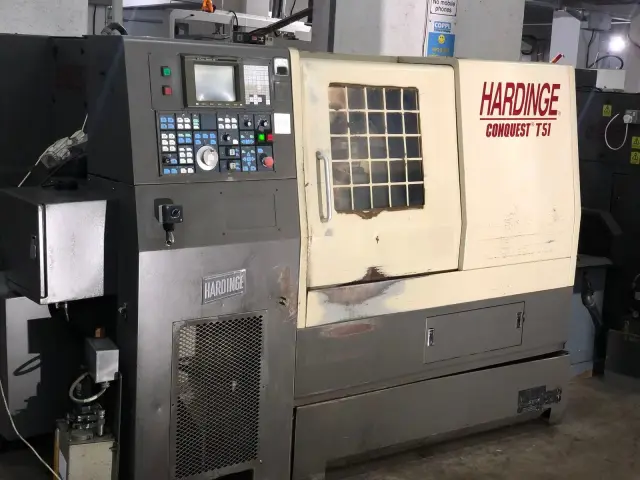

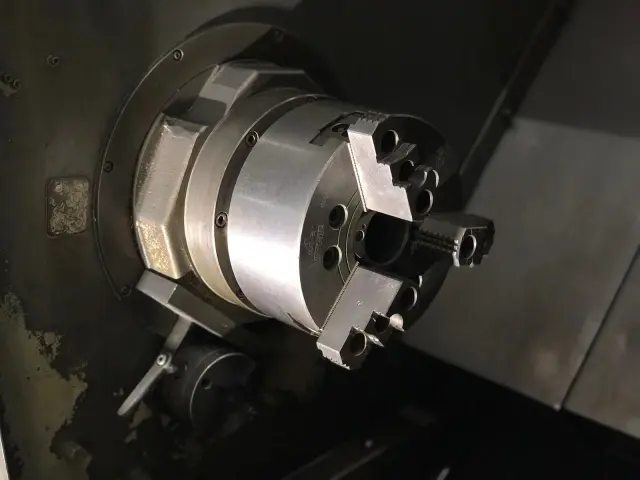

The Hardinge CONQUEST T51 is a slant-bed, multi-axis CNC turning center designed for high-precision manufacturing. With a robust machine weight of 6.8 T, this turning center provides the structural rigidity necessary to handle demanding production runs. The machine features a maximum swing of 400 mm, a maximum turning diameter of 300 mm, and a distance between centers of 500 mm. Its working envelope accommodates a maximum turning length of 450 mm. For axis motion, the machine delivers travels of 330 mm on the X-axis and 580 mm on the Z-axis, ensuring ample clearance and range for varied component geometries. At the core of its cutting capability is a high-performance spindle system equipped with a 200 mm chuck. The spindle features a 66 mm bore and is driven by an 11 / 15 kW motor, allowing it to achieve a maximum rotation speed of 3500 RPM. To facilitate complex, multi-axis operations, the machine is configured with a 12-station turret that includes 6 live stations. The live tooling function is powered by a 2.1 kW motor and can reach a maximum live tool speed of 3000 RPM, supporting milling, drilling, and tapping processes in a single setup. Additionally, a programmable tailstock is integrated to support longer workpieces during high-speed operations. Control of the Hardinge CONQUEST T51 is managed through a Fanuc 18T control system running on Alpha Drives, which offers reliable and precise axis coordination. Given its combination of a 66 mm spindle bore, live tooling capabilities, and a programmable tailstock, this machine is well-suited for producing complex, multi-featured components such as shafts, bushings, and customized industrial fittings. This used machine is imported, fully inspected, and available directly from Corel Machinery, India, with worldwide shipping options arranged to your facility.
