Used HARRISON ALPHA 400 CNC LATHE for sale — CNC Turning Centers

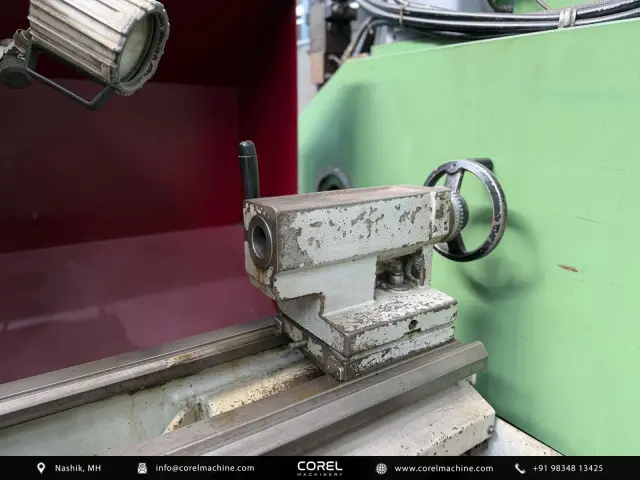

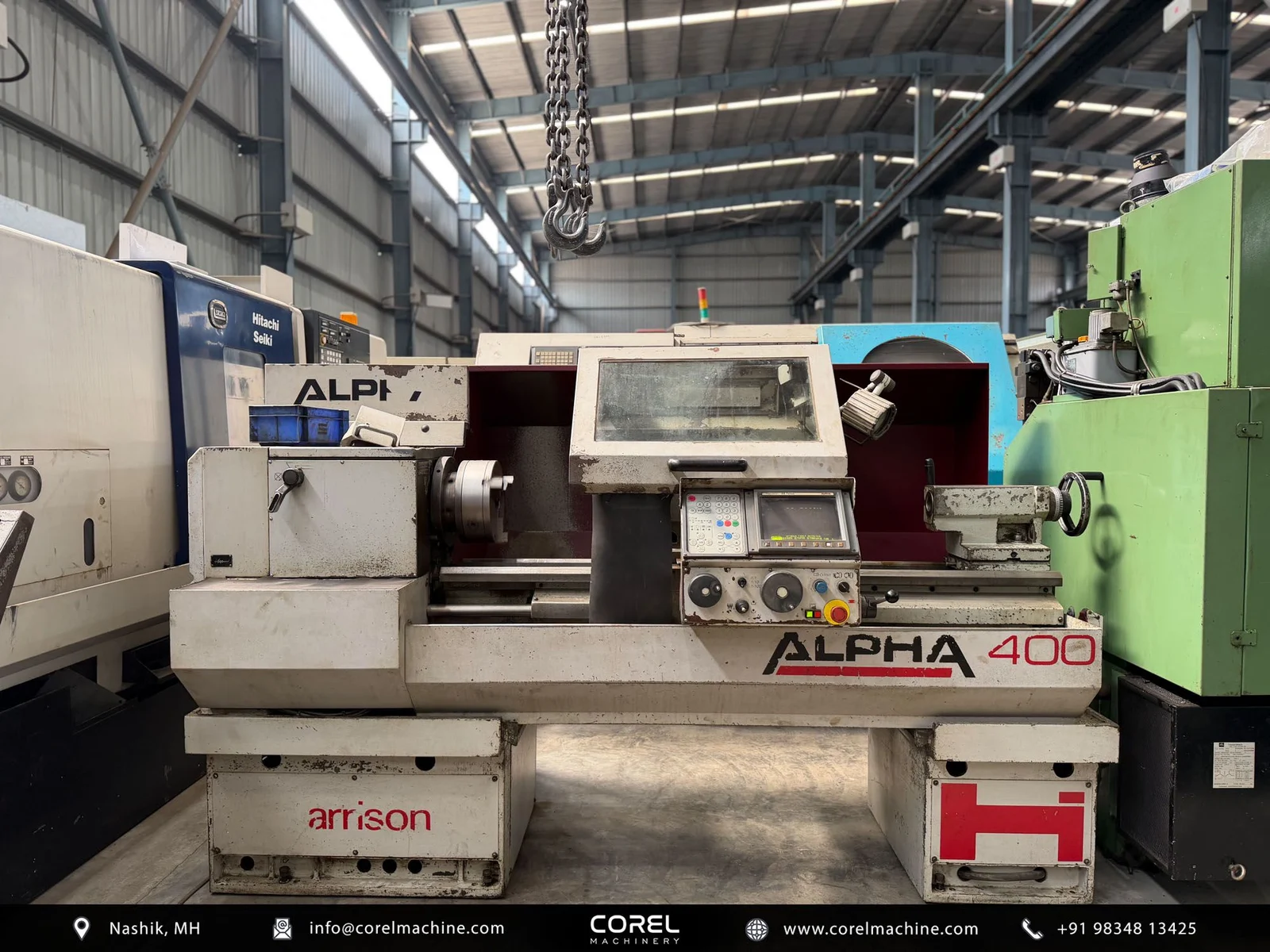

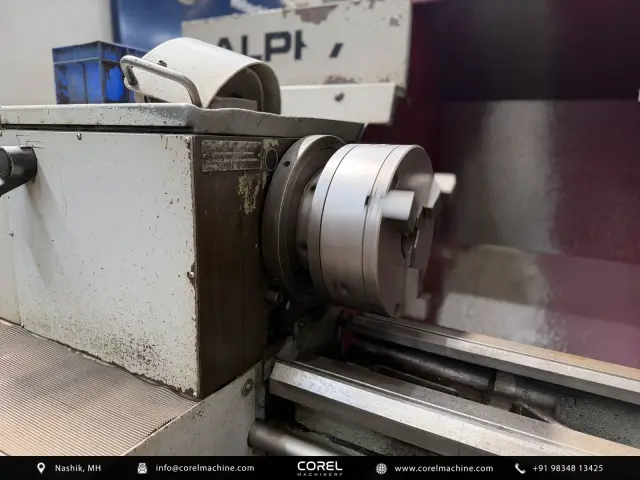

Corel Machinery offers the used Harrison ALPHA 400 CNC Turning Centers (Flat Bed), currently maintained in very good condition. Built as a versatile flat bed CNC turning center, this machine is engineered for precision component manufacturing, job shops, and general production environments where reliable turning operations are required. At the core of its performance is a 10 HP spindle motor driving through a spindle speed range of 45 to 2500 RPM. The spindle features a D1-6 spindle nose and a 2.04" spindle bore, matching the 2.04" max bar capacity to accommodate standard bar stock efficiently. For workpiece handling, the machine provides a 15.72" swing over bed, a 9.65" swing over slide, a max turning diameter of 10.63", and a max turning length of 50.6". Additionally, it delivers a distance between centers of 50.0", supporting a variety of shaft and cylindrical workpieces. Workpiece support is further enhanced by a robust tailstock configuration. The tailstock body travel spans 44.3", while the tailstock quill diameter measures 3.54" with a 3.53" [Note: verified is 3.93"] quill stroke and an MT-4 tailstock taper. Physically, the machine has overall dimensions of 110" × 68" × 60" (H) and an approximate weight of 5,500 lbs, making it a substantial yet manageable footprint for standard industrial shop floors. This Harrison ALPHA 400 is imported, thoroughly inspected, and ready for deployment. It is available directly from Corel Machinery, India, with worldwide shipping options to meet international manufacturing requirements. Production engineers and procurement specialists looking for a dependable used flat bed CNC turning center will find the specifications well-suited for tight-tolerance turning, threading, and facing tasks across diverse metalworking industries.
