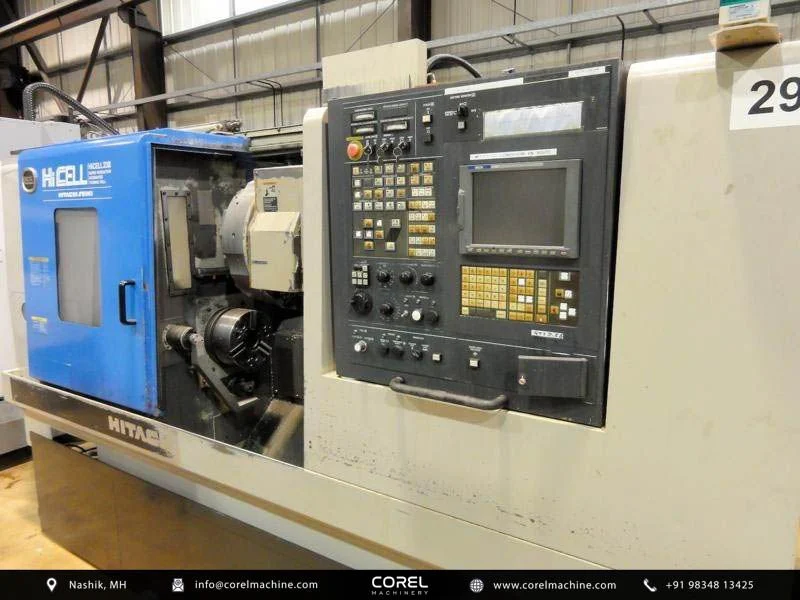

Used HITACHI SEIKI CA23-II CNC TURN MILL (Y + C Axis) for sale — CNC Turning Centers

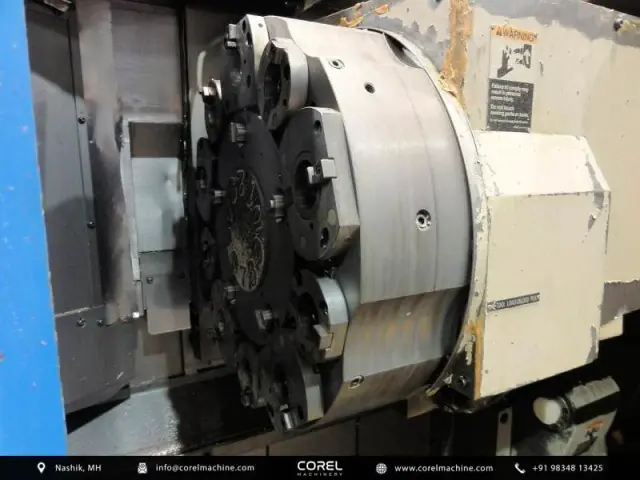

The Hitachi Seiki CA23-II is a high-precision multi-axis slant bed CNC turning center designed for complex turning and milling operations. Operating on a Fanuc 18iT CNC control system, this machine integrates C-axis indexing at 0.001 degrees with a dedicated Y-axis travel of +/- 60 mm, enabling off-center milling, drilling, and tapping operations in a single setup. Built with linear motion (LM) guideways, the CA23-II provides smooth axis movement and consistent positioning accuracy across all linear travels, which measure 265 mm on the X-axis, 530 mm on the Z-axis, and +/- 60 mm on the Y-axis. The turning center features a maximum swing of 450 mm and supports a maximum turning length of 500 mm, making it suitable for a wide range of medium-sized shaft and chucking components. Workpiece rotation is powered by an integrated spindle capable of reaching a maximum speed of 4000 RPM. Tooling demands are handled by a 12-station turret that accommodates live and static tooling configurations. The machine is also equipped with a tailstock to provide support when machining longer workpieces between centers. The combination of Y-axis milling, C-axis spindle indexing, and an integrated spindle design makes the Hitachi Seiki CA23-II well-suited for manufacturing complex components in industries such as automotive parts manufacturing, aerospace component production, fluid power, and general precision engineering. By completing turning and secondary rotary operations on one machine, users can reduce cycle times and eliminate secondary setup steps. Available as a used machine through Corel Machinery in India, this unit has been inspected and is offered for domestic delivery and worldwide export. Contact Corel Machinery for full commercial terms, technical details, and pricing.
