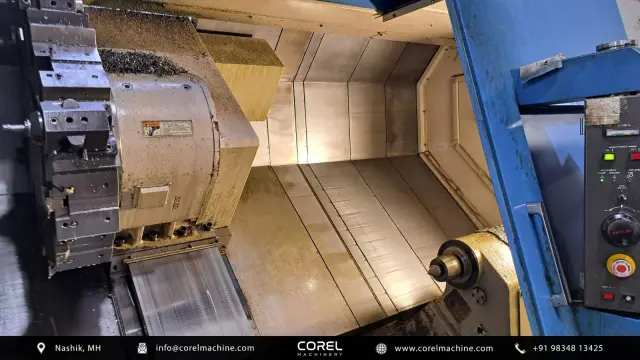

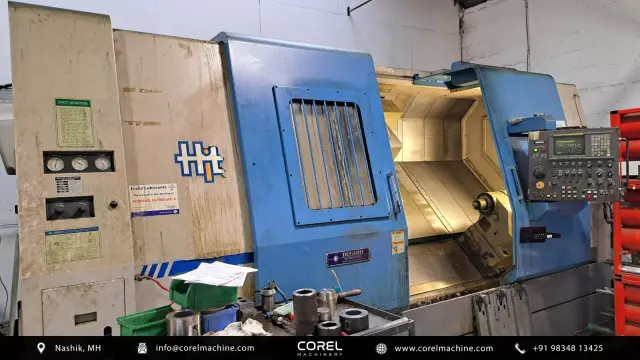

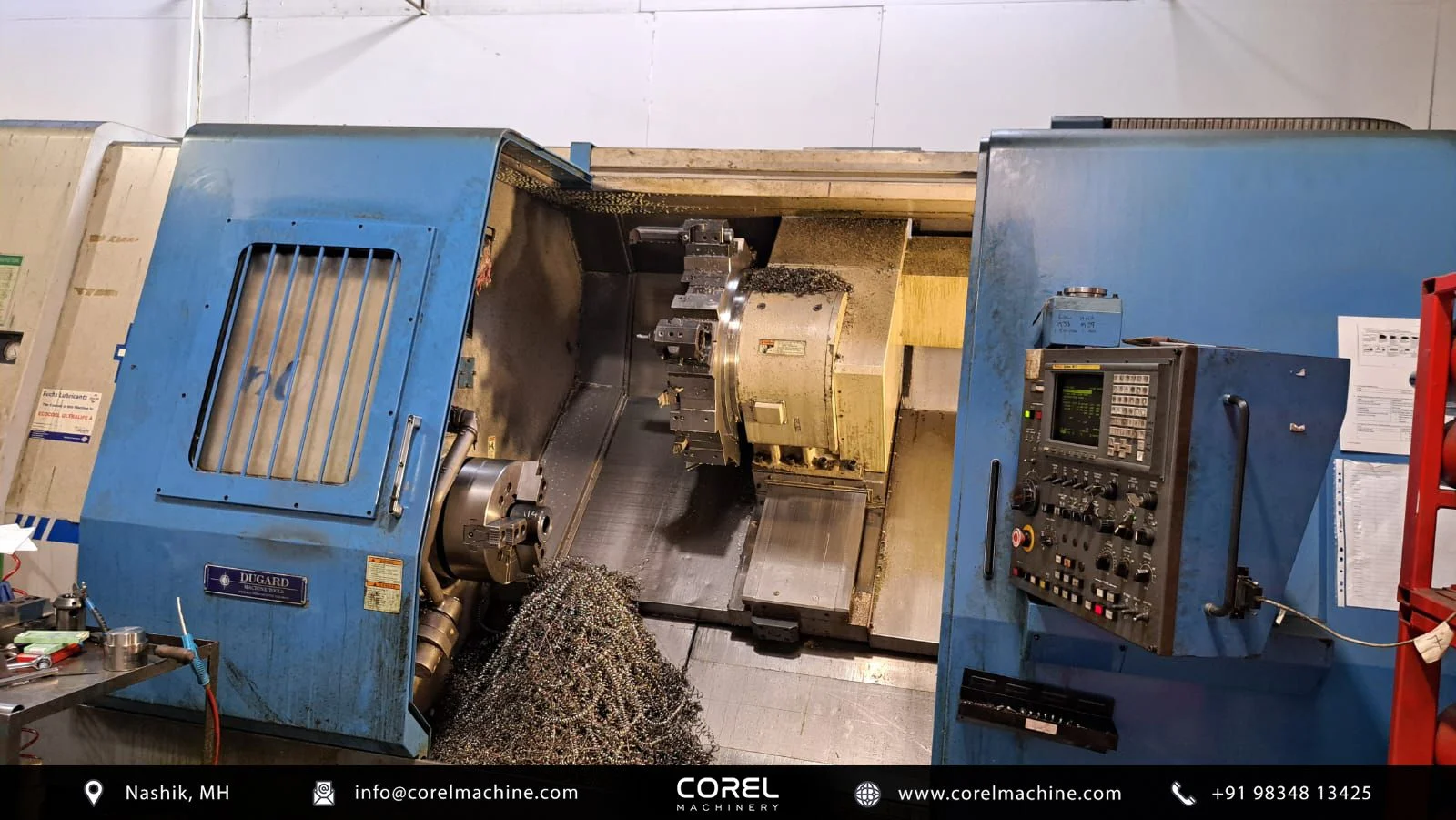

Used HYUNDAI HIT 460 CNC LATHE for sale — CNC Turning Centers

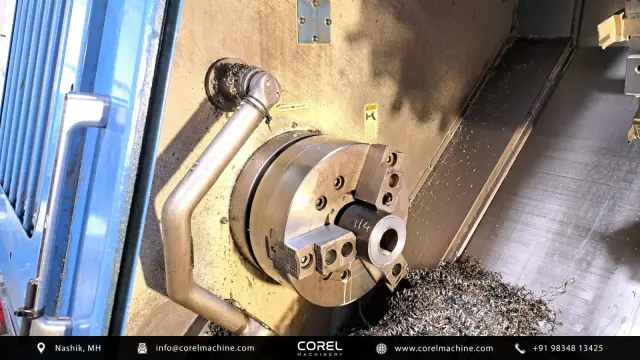

The Hyundai HIT 460 is a heavy-duty slant bed CNC turning center built to handle large-diameter and long-shaft workpieces. Engineered for high rigidity and precision, this machine features a robust box guideway construction. These box guideways provide superior vibration damping and structural stability during heavy metal removal processes, ensuring excellent surface finishes and extended tool life. Under the hood, the turning center is powered by a gear-driven spindle driven by a 37 kW spindle motor (to be confirmed). This gear-driven design delivers high torque at lower RPMs, which is ideal for tough materials, and is capable of reaching a maximum rotation speed of 2000 RPM. The spindle configuration includes a large A2-11 spindle nose, a generous spindle bore of 132 mm, and a draw tube internal diameter of 117 mm, making it highly suitable for passing large bar stock through the spindle. For securing large workpieces, the machine is equipped with a substantial 15-inch chuck. In terms of physical capacity, the Hyundai HIT 460 offers exceptional envelope dimensions. It features an impressive swing of 875 mm, a swing over carriage of 630 mm, and a maximum turning diameter of 660 mm. The maximum turning length stretches to 1575 mm, with a distance between centers measuring 1747 mm. Tool movements are defined by X-axis travel of 370 mm and Z-axis travel of 1575 mm. This expansive working envelope enables the efficient processing of heavy industrial parts and long shafts. To support complex machining operations, the machine features a 12-station turret that allows for rapid tool indexing and flexible tooling configurations. For machining longer workpieces with high geometric accuracy and minimal deflection, the turning center is equipped with a heavy-duty MT6 tailstock that features a robust quill diameter of 150 mm. Control of the machine's axes and spindle is managed via the reliable Fanuc 18T control system, which utilizes high-performance Alpha Drives for precise positioning, smooth interpolation, and dependable daily production. Given these technical specifications, the Hyundai HIT 460 is ideally suited for medium-to-heavy engineering industries. The combination of a large 132 mm spindle bore, a gear-driven spindle, and box guideways makes it prime for oil and gas component manufacturing, energy sector applications, heavy shaft machining, and large flange production. This used Hyundai HIT 460 CNC turning center is imported, thoroughly inspected, and available directly from Corel Machinery, located in India. We provide secure packaging and facilitate worldwide shipping to meet international logistics needs. Please contact our sales team to request additional details or a formal quotation.
