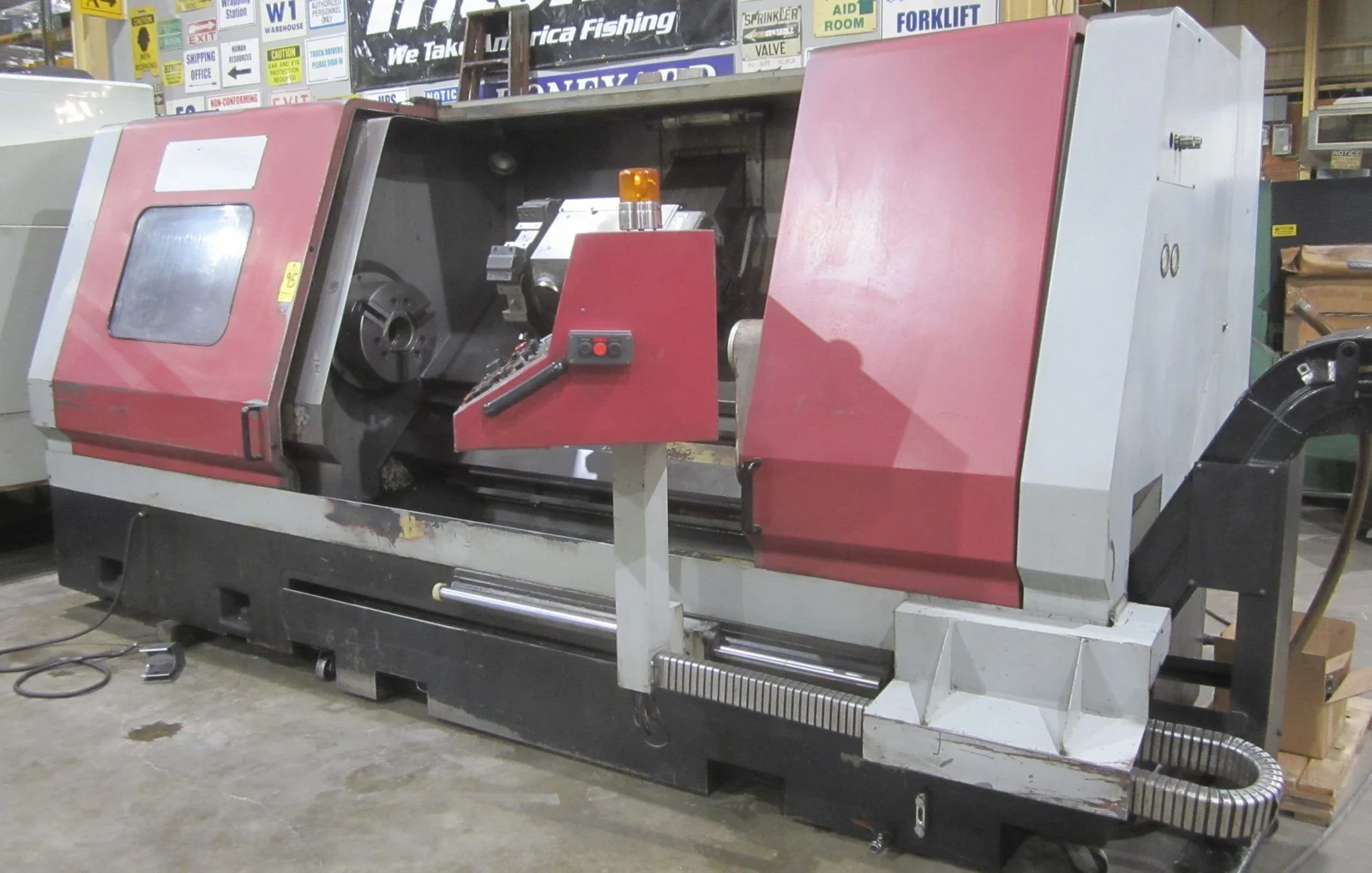

Used JOHNFORD TC75 CNC LATHE — sold (CNC Turning Centers)

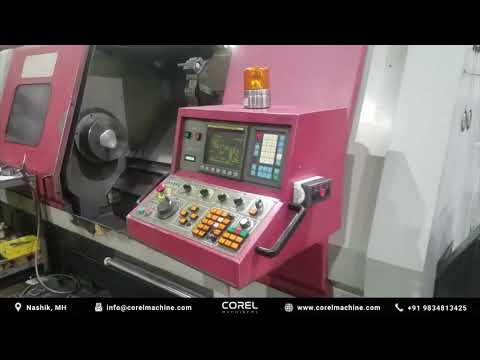

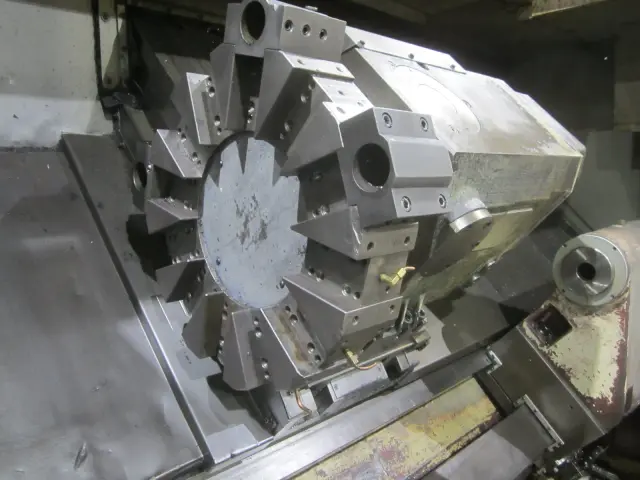

Corel Machinery offers the used Johnford TC75, a robust CNC Turning Center (Slant Bed) designed for heavy-duty industrial manufacturing environments. Engineered with rigid box guideways and a heavy 14 T structure measuring 214" x 96" x 104", this machine provides the stability required for demanding metal-cutting operations. Powered by a 35 HP gear-driven spindle motor with an A2-11 spindle nose and a 123 mm spindle bore, it delivers a maximum rotation speed of 1700 RPM, making it well-suited for high-torque roughing and precision finishing of large workpieces. The machine offers a maximum turning diameter of 540 mm and a generous maximum turning length of 1550 mm, with a swing capacity of 690 mm and 1700 mm distance between centers. It features an X and Z axis travel of 350 mm and 1551 mm respectively. Workholding is handled via a 375 mm chuck equipped as standard. Tool management is supported by a 12-station turret, allowing for efficient multi-step machining sequences. Additionally, the inclusion of a tailstock with a 5 MT quill taper provides essential support for long shafts and cylindrical components. Operation is managed through the reliable Fanuc OT-F control system, a proven interface familiar to production engineers and machinists alike. These specifications make the Johnford TC75 highly capable for heavy manufacturing sectors such as oil and gas, automotive, large-scale infrastructure component production, and general heavy engineering where large diameters and long shafts are routinely processed. This imported used machine has been thoroughly inspected by our technical team at Corel Machinery in India to ensure operational readiness. It is available for immediate evaluation by production engineers seeking reliable, high-capacity turning solutions. We offer professional logistics support for both domestic delivery across India and secure worldwide shipping to your facility.
