Used MORI SEIKI ZL-35B / 1500 CNC LATHE for sale — CNC Turning Centers

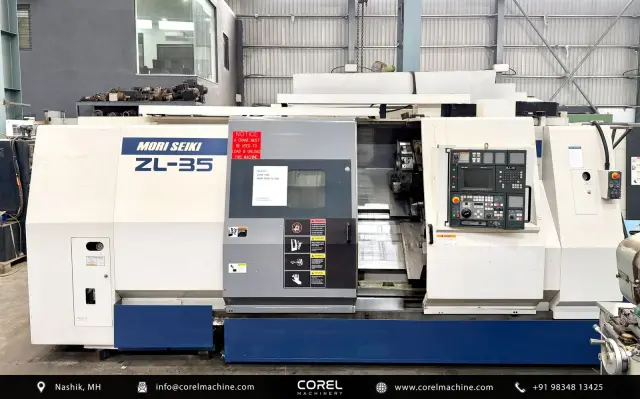

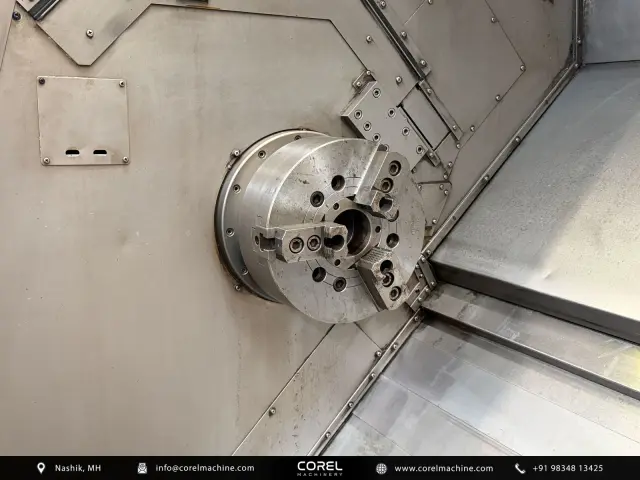

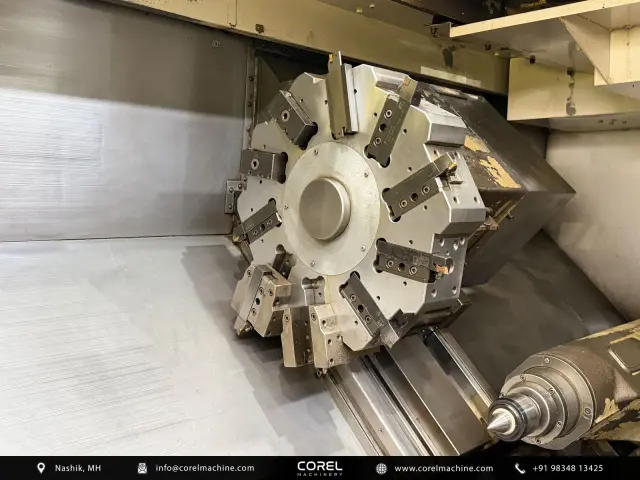

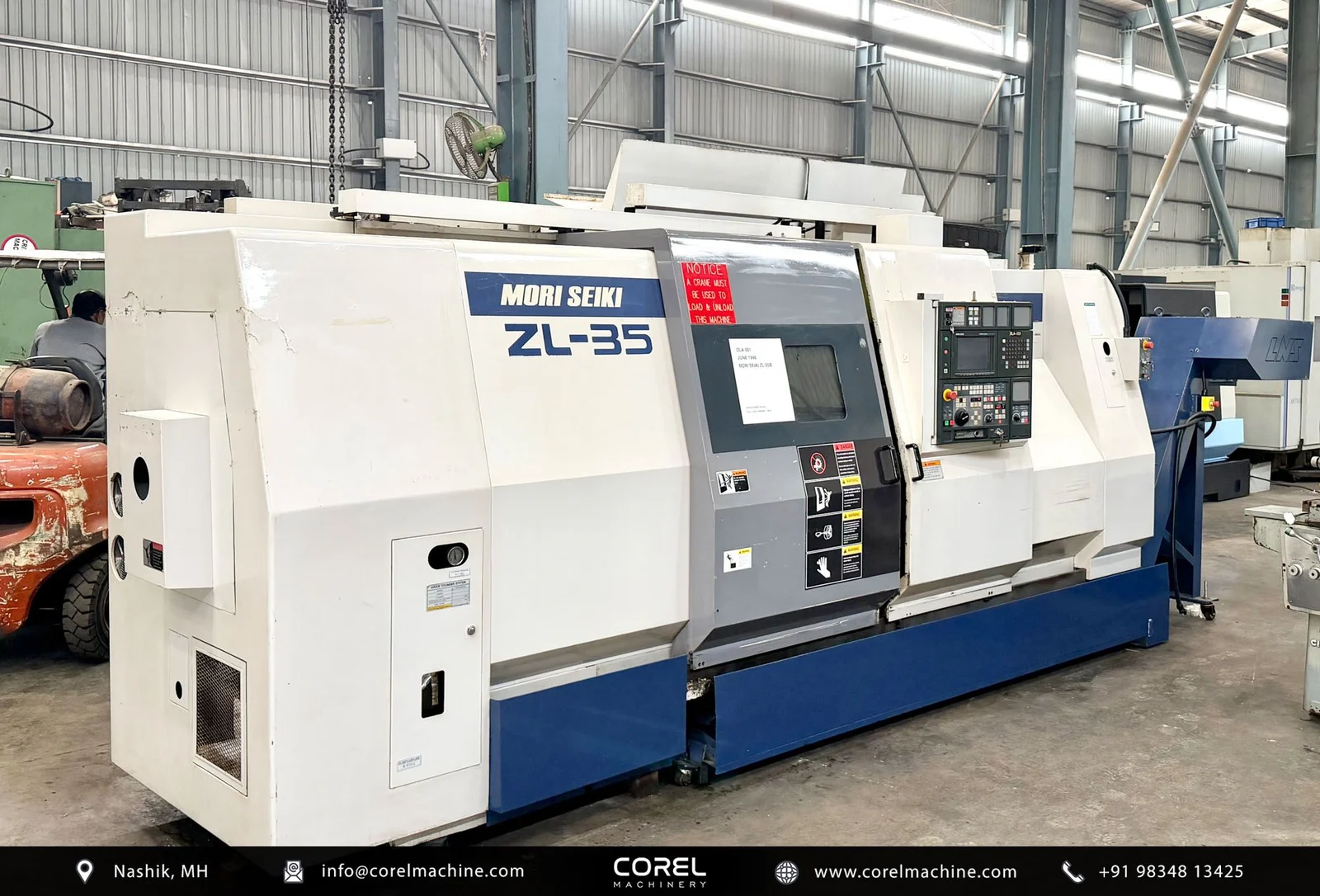

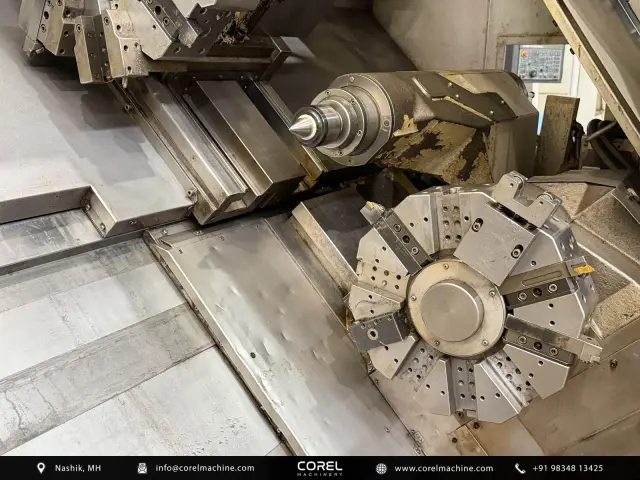

The Mori Seiki ZL-35B / 1500 is a robust, slant-bed CNC turning center engineered for high-performance and rigid machining operations. Designed to handle demanding turning profiles, this machine features a twin-turret configuration and a substantial structure weighing 13 tons, providing the thermal stability and rigidity required for heavy metal cutting. At the heart of its capabilities is a powerful gear-driven spindle driven by a 37 kW motor, offering a maximum rotation speed of 2500 RPM. The spindle is configured with an A2-8 nose and features a 105 mm through-spindle hole diameter, accommodated by a 300 mm chuck. This setup enables the processing of large bar stock and heavy workpieces. The turning capacity is marked by a generous 600 mm swing over the bed, a maximum turning diameter of 390 mm, and a maximum turning length of 1586 mm, with a distance between centers of 1640 mm. The twin-turret system features 10 stations on the upper turret and 10 stations on the lower turret, enabling efficient machining operations. The machine provides generous slide travels: the upper X1 / Z1 axes travel 225 / 1605 mm, while the lower X2 / Z2 axes travel 210 / 1605 mm. Support for long workpieces is provided by an MT4 tailstock, which has a 130 mm quill diameter and a quill travel of 120 mm. Control of these axes and spindle functions is managed by the industry-standard Fanuc 18iT CNC system. This control unit is widely respected by operators and maintenance teams for its programming flexibility, reliable tool-path management, and ease of diagnostic monitoring. Given these structural and power specifications, this slant bed turning center is highly suited for heavy manufacturing sectors, such as oil and gas components, hydraulic cylinder production, power transmission shafting, and medium-to-large industrial equipment manufacturing. The machine is offered as an imported unit from Corel Machinery. It has been thoroughly inspected to verify its physical and mechanical condition. Located in India, Corel Machinery manages all logistical processes, offering secure packaging and reliable worldwide shipping services to your facility. Contact our sales team to request additional technical information or to schedule an inspection.
