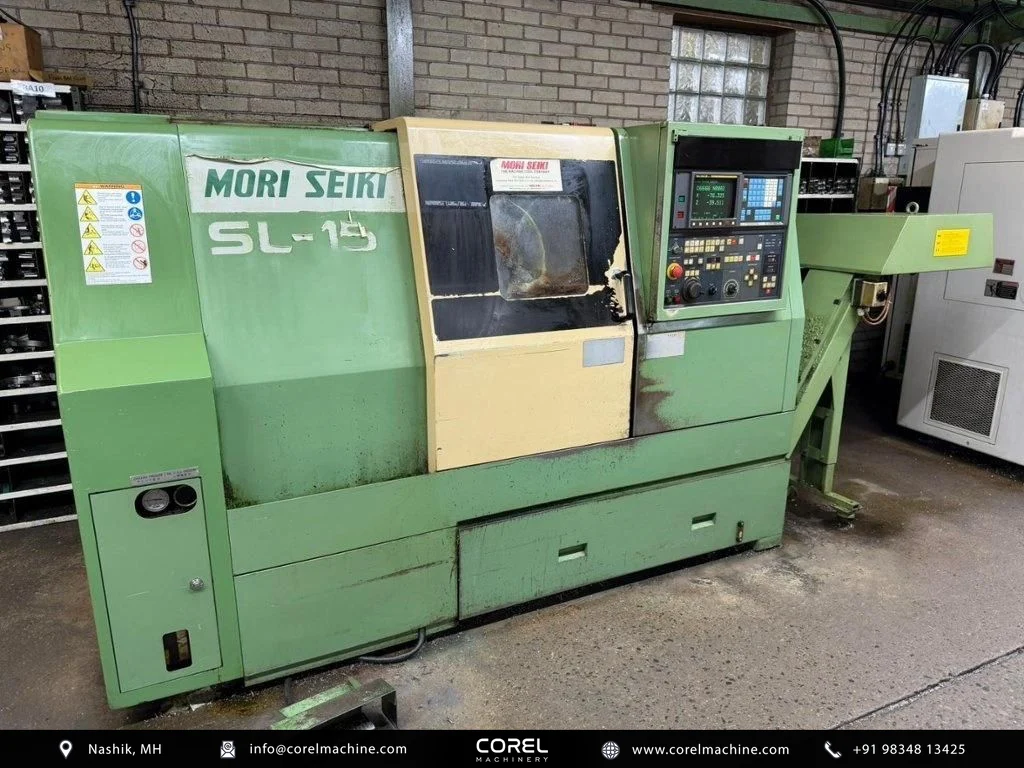

Used MORI SEIKI SL-15 CNC Turning Center for sale — CNC Turning Centers

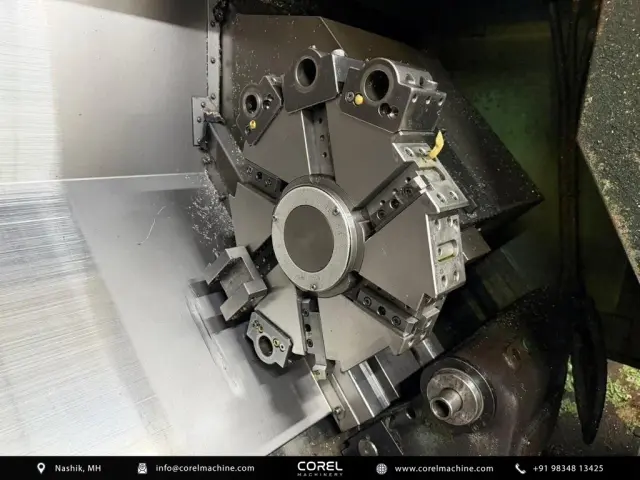

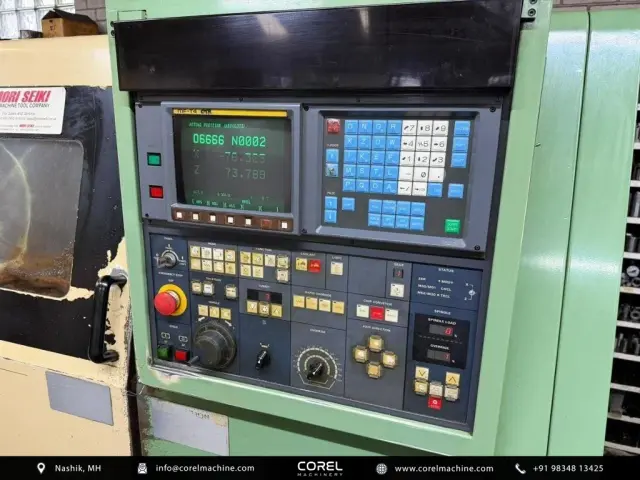

The MORI SEIKI SL-15 is a high-precision CNC Turning Center (Slant Bed) equipped with a Fanuc OT control system. Built for demanding turning operations, this machine offers a maximum turning diameter of 299.72 mm (300 mm), a maximum turning length of 525.78 mm (525 mm), a distance between centers of 594.36 mm (595 mm), and a swing over bed of 449.58 mm (450 mm). Standard turning operations feature a standard machining diameter of 160.02 mm (160 mm). The spindle operates within a speed range of 60 to 6000 rpm, supported by a JIS A2-5 spindle nose, an 88.9 mm (90 mm) front bearing inner diameter, and a spindle bore of 50.8 mm (52 mm). Spindle drive power is provided by a 7.5 / 5.5 kW main motor (with an optional 11 / 7.5 kW configuration), consuming 19 kVA of power (24 kVA optional). Tooling capabilities are supported by a 12-station turret delivering rapid indexing times of 0.7 seconds (1.5 seconds for 6 stations). The turret accommodates a square tool shank height of 20.32 mm (20 mm) and a maximum boring bar shank diameter of 33.02 mm (32 mm). Axis travels feature an X-axis travel of 135 + 20 + 115 mm (5.3 + 0.8 + 114.3 mm) and a Z-axis travel of 558.8 mm (560 mm). Motion is driven by dedicated axis motors: X-axis (F) AC 0.9, (Y) AC 0.85, and Z-axis AC 1.8 kW. Rapid feed rates reach 11998.96 mm/min (12000 mm/min) on the X axis and 15001.24 mm/min (15000 mm/min) on the Z axis. Cutting feed rates range from 0.000008 to 198.12 mm/rev for X and 0.000008 to 248.92 mm/rev for Z, alongside a jog feed rate of 1259.84 mm/min on both axes. Workpiece support is enhanced by an integrated tailstock with an MT4 live center, featuring a quill diameter of 76.2 mm (75 mm), quill travel of 78.74 mm (80 mm), and a total stroke of 449.58 mm (450 mm). Coolant capacity is 85 liters. The physical machine footprint requires a floor space of 2499.36 mm x 1452.88 mm (2500 x 1453 mm) and weighs 3175.14 kg (3220 kg). Suitable for precision component manufacturing in automotive, aerospace, and general engineering sectors, this imported unit is inspected and available from Corel Machinery, India, with options for domestic delivery and worldwide shipping.
