Used NAKAMURA TOME TMC15 CNC LATHE for sale — CNC Turning Centers
CNC Turning CentersSOLD OUTID: 25443

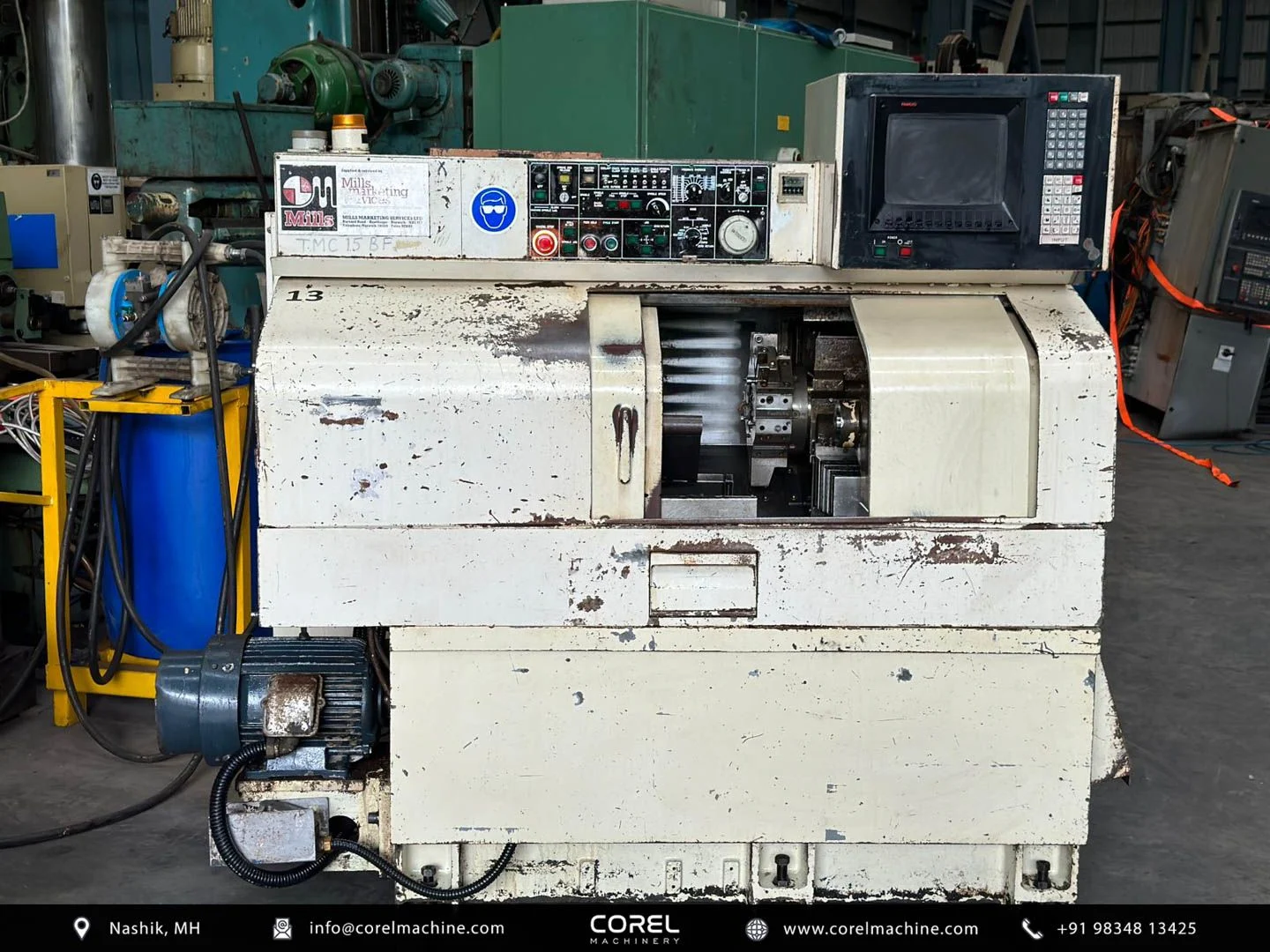

NAKAMURA TOME TMC15 CNC LATHE
Nakamura Tome TMC15
- Category
- CNC Turning Centers
- Capacity
- Ø180 X 270 MM
SOLD
1 / 4
Machine Data
Technical Specifications
MAX SWING OVER BED11.81″
MAX SWNG OVER SADDLE6.69″
MAX TURNING DIAMETER7.09″
MAX LENGTH10.6″
SPINDLE SPEEDS112 – 4,500 RPM
SPINDLE DRIVE10 HP
SPINDLE NOSEA2-5
HOLE THRU SPINDLE1.85″
HOLE THRU DRAW TUBE1.34″

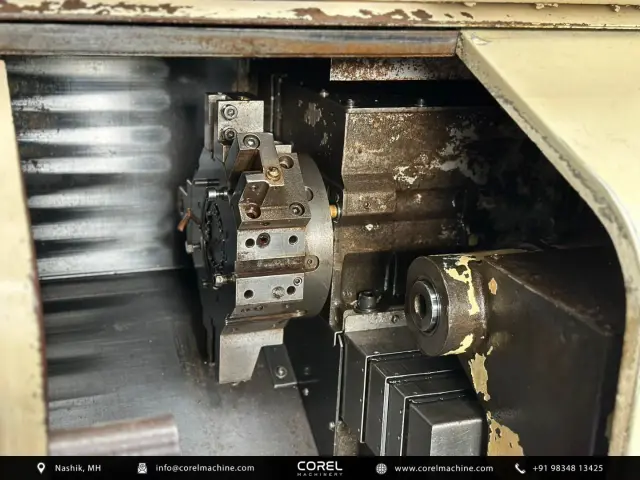

TURRET CAPACITY10 STATIONS
RAPID TRAVERSE RATE (X/Z)472 / 945 IPM
MAX BAR CAPACITY1.34″
TAILSTOCKYES
Buying with Corel Machinery
- Sourced abroad and inspected before we list it.
- Full specifications and genuine photos on every machine.
- A specialist used-CNC machine dealer since 2016.
- Delivery and export logistics arranged worldwide.
Not sure yet? Talk to us before you commit — we reply within 24 hours.
+91 98348 13425Overview
Machine Overview
MAX SWING OVER BED: 11.81″ MAX SWNG OVER SADDLE: 6.69″ MAX TURNING DIAMETER: 7.09″ MAX LENGTH: 10.6″ SPINDLE SPEEDS: 112 – 4,500 RPM SPINDLE DRIVE: 10 HP SPINDLE NOSE: A2-5 HOLE THRU SPINDLE: 1.85″ HOLE THRU DRAW TUBE: 1.34″ TURRET CAPACITY: 10 STATIONS TURRET TRAVELS (X,Z): 4.33″ / 10.63″ RAPID TRAVERSE RATE (X/Z): 472 / 945 IPM MAX BAR CAPACITY: 1.34″ TAILSTOCK: YES
