Used TAKISAWA TC-3 CNC LATHE for sale — CNC Turning Centers

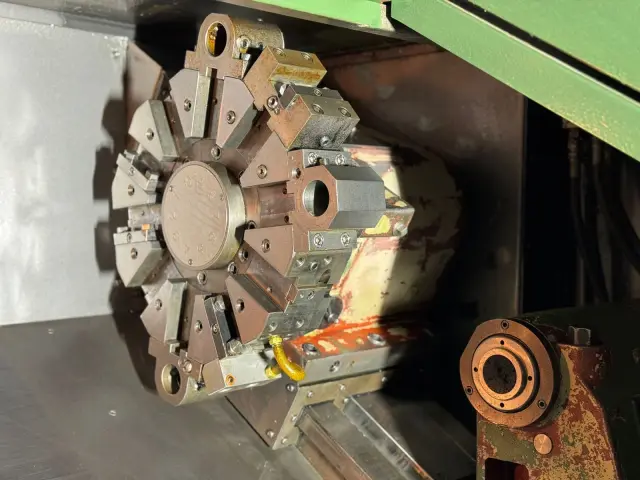

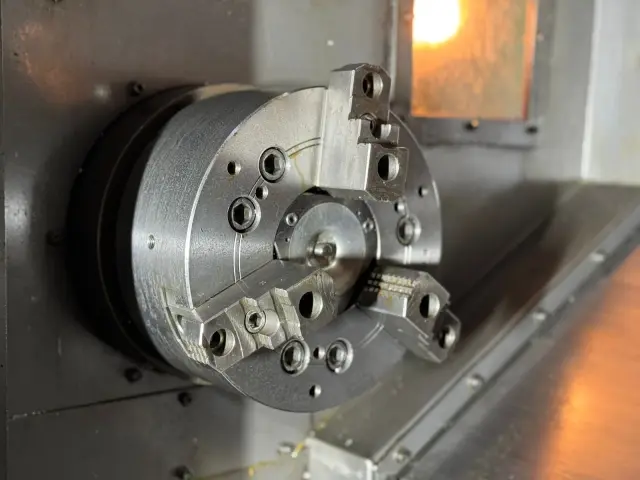

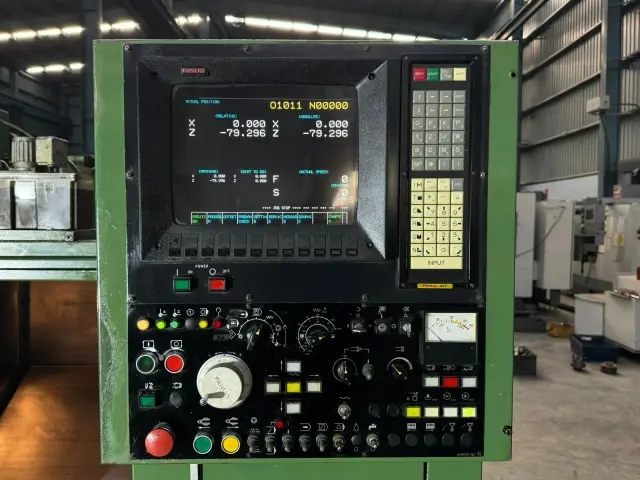

The Takisawa TC-3 is a heavy-duty, slant bed CNC turning center engineered to deliver high rigidity and torque for demanding machining operations. Built with robust box guideways, this machine is highly optimized for vibration dampening and heavy metal removal, making it a reliable workhorse for precision manufacturing environments. The machine operates on a reliable Fanuc 10T control system paired with AC servo motors, providing consistent axes positioning and proven programming reliability for your production staff. At the core of its performance is a 15 kW spindle motor mated to a 2-step gear-driven spindle type. This configuration ensures excellent low-end torque for tough materials alongside a maximum spindle rotation speed of 3200 RPM (TBC). The spindle features an A2-8 nose with a generous 78 mm spindle bore, accommodating a wide range of bar stock sizes. Workholding is handled via an included 250 mm chuck, which works in tandem with the machine's physical limits: a maximum swing of 500 mm, a maximum turning diameter of 320 mm, and a maximum turning length of 510 mm. For tooling and processing versatility, the Takisawa TC-3 is configured with a 10-station turret designed to accept heavy-duty 25x25 mm shank tools. This allows for diverse tooling setups and rapid indexing. To support shaft turning and longer workpieces, the machine is equipped with a integrated tailstock featuring an MT5 quill taper, a robust quill diameter of 90 mm, and a total quill stroke of 120 mm. With physical dimensions of 1840 x 1470 x 2000 mm (LWH) and a substantial machine weight of 4T, this turning center provides an extremely stable platform with a compact footprint, allowing it to integrate seamlessly into busy workshop layouts. This pre-owned, high-torque turning center is imported, thoroughly inspected, and available for sale from Corel Machinery, India. We offer complete logistical assistance and worldwide shipping options to ensure a smooth acquisition process for your facility.
