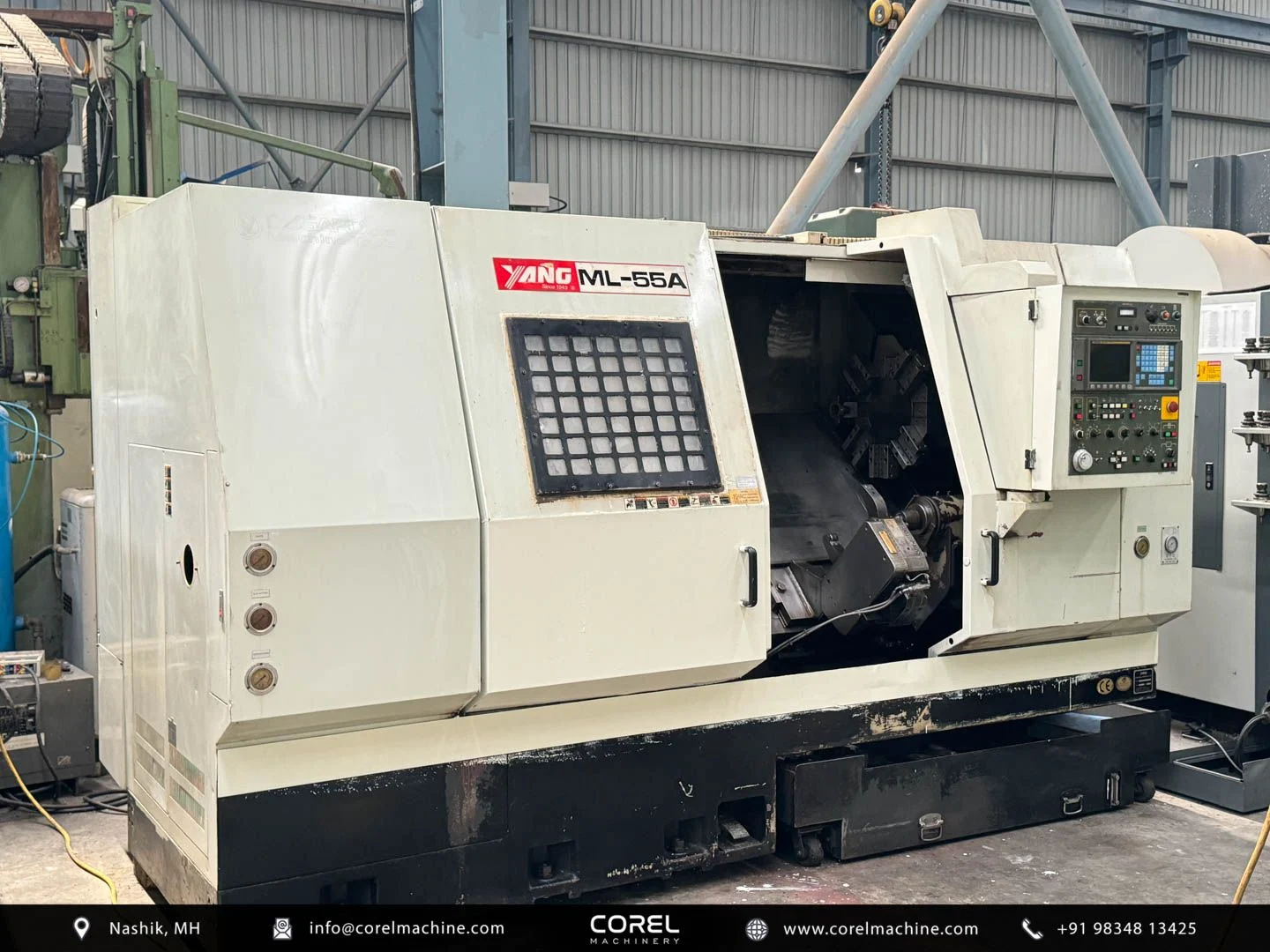

Used YANG ML-55 CNC LATHE — sold (CNC Turning Centers)

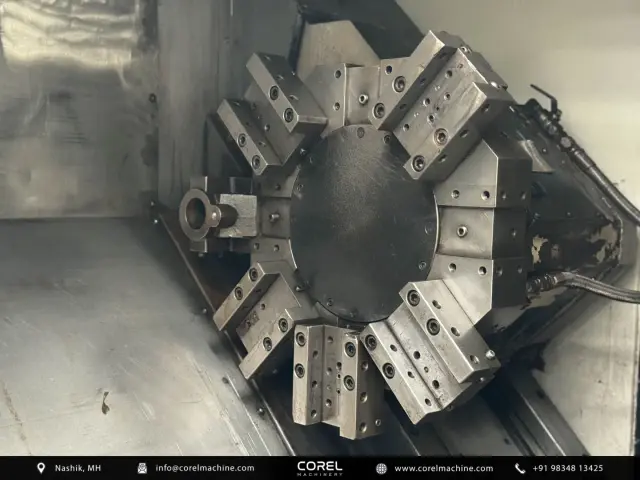

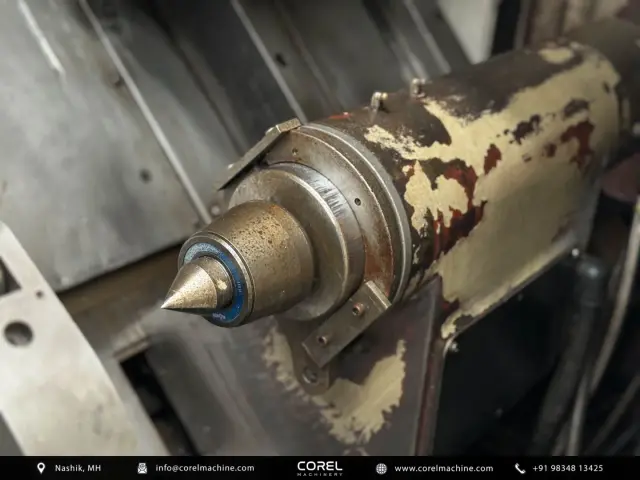

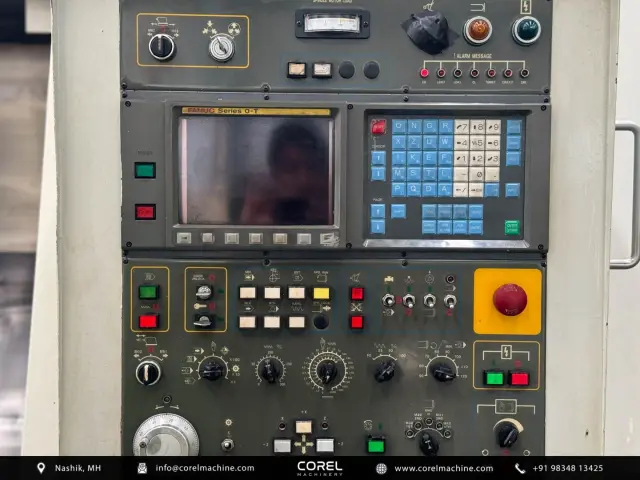

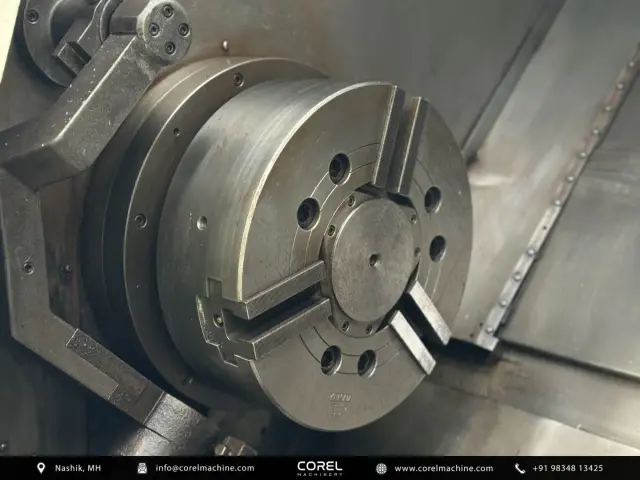

Corel Machinery offers the used Yang ML-55 CNC Turning Centers (Slant Bed), engineered for heavy-duty industrial turning operations. This machine features a robust box guideway construction and a maximum turning diameter of 550 mm, with a swing of 720 mm and a maximum turning length of 1100 mm (distance between centers of 1200 mm). The workspace is designed to accommodate substantial workpieces securely, aided by an equipped 375 mm chuck. Travels for the X and Z axes are 350 mm and 1100 mm respectively. Powering the machine is a strong 37 kW spindle motor paired with a 4-step gear-driven spindle type, delivering a maximum rotation speed ranging from 40 to 2000 RPM. The spindle features an A2-11 spindle nose and a generous 115 mm spindle bore, making it well-suited for heavy bar work and large-diameter components. Tooling is managed via an 8-station turret utilizing 32x32 mm tool sizes, ensuring rigidity during intensive machining cycles. Operation is controlled by a reliable Fanuc O-TF system utilizing Alpha Drives. For operations requiring extended workpiece support, the machine includes a functional tailstock with a quill diameter of 125 mm, a tailstock stroke of 979 mm, a quill stroke of 160 mm, and an MT5 quill taper. Physically, the machine has overall dimensions of 5215 x 2470 x 2730 mm and a substantial weight of 10.5 metric tons, underlining its structural stability. This used Yang ML-55 CNC Turning Centers unit is imported, thoroughly inspected, and available from Corel Machinery in India, with worldwide shipping options ready to support heavy engineering, automotive, and general manufacturing production floors.
